| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22J-35-25311 | COVER, L.H. | F00003- | |
| 2 | 22J-35-25321 | COVER, R.H. | F00003- | |
| 3 | 01010-80816 | BOLT | F00003- | |
| 4 | 01643-30823 | WASHER | F00003- | |
| 5 | 22J-35-25171 | COVER | F00003- | |
| 6 | 01010-81025 | BOLT | F00003- | |
| 7 | 01643-31032 | WASHER | F00003- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc14r 2 s/n f00003 up
- Frame
- Track frame cover (for variable gauge)
Поиск по каталогу

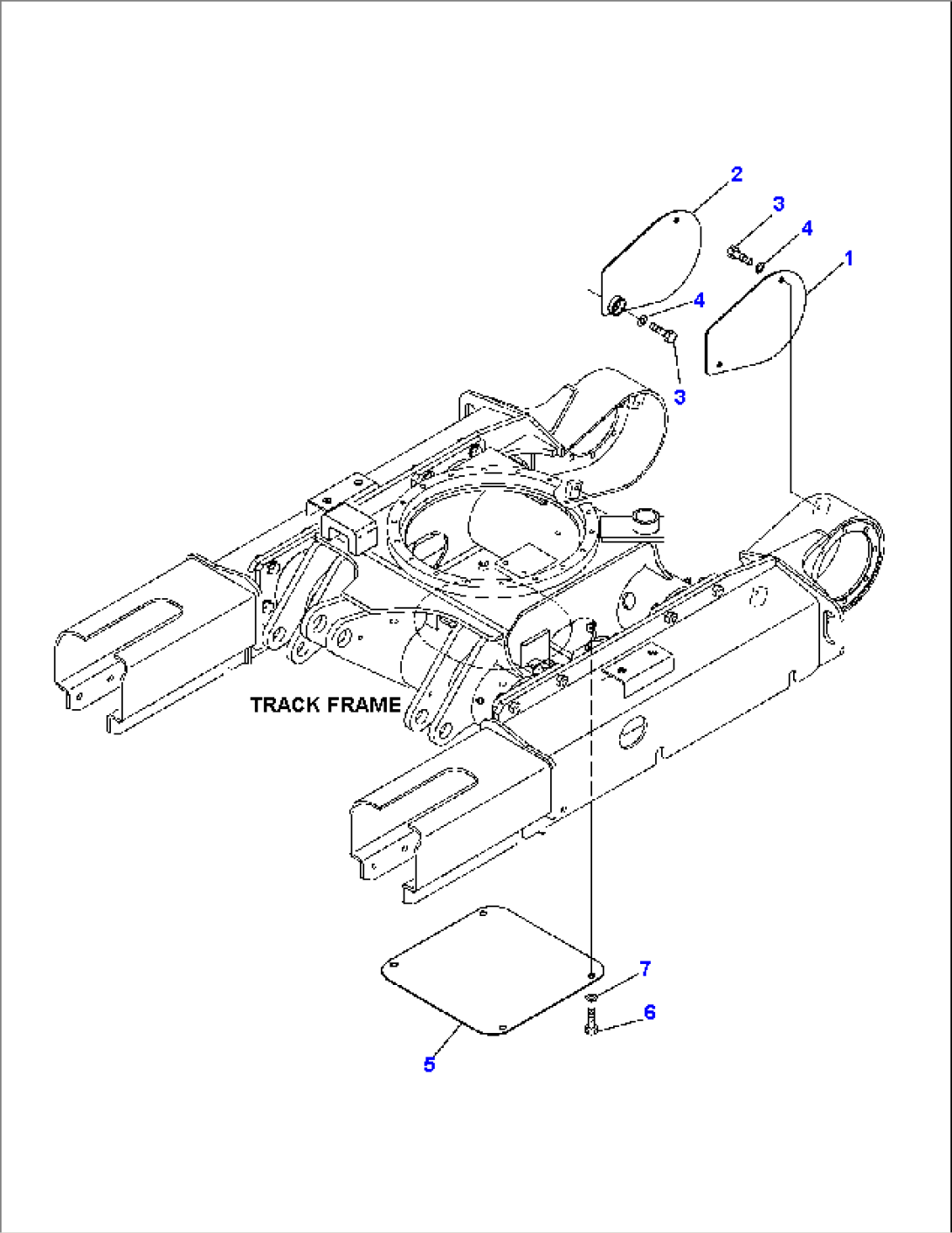

TRACK FRAME COVER (FOR VARIABLE GAUGE)
