| Item | Part No. | Part Name | Qty | Serial No. |

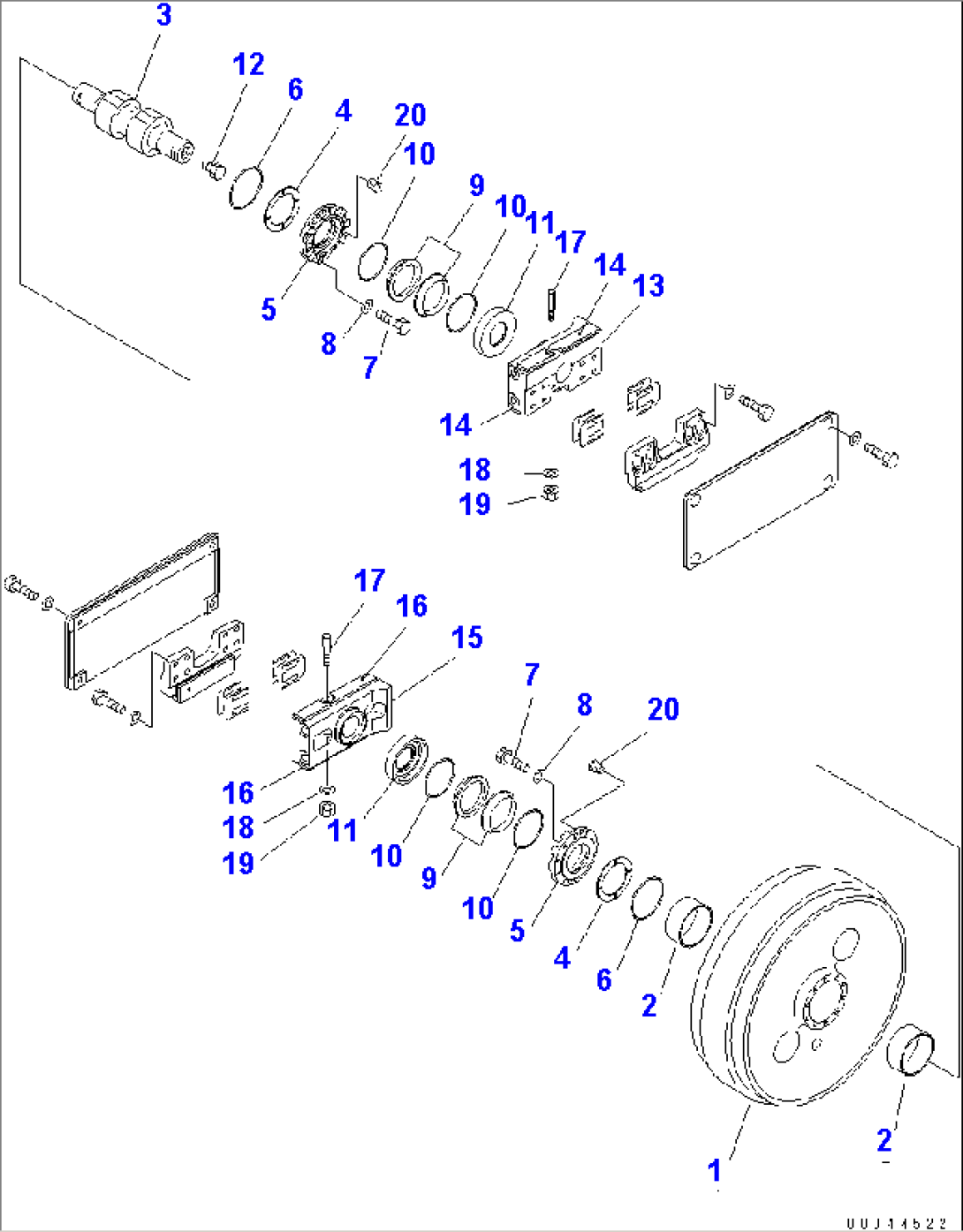

| 17A-30-00161 | IDLER ASS'Y | 65345- | ||
| 1 | 17A-30-13410 | IDLER | 65345- | |
| 2 | 17A-30-13140 | BUSHING | 65345- | |
| 3 | 17A-30-13450 | SHAFT | 65345- | |
| 4 | 195-30-62650 | PLATE | 65345- | |
| 5 | 17A-30-13440 | RETAINER | 65345- | |
| 6 | 07000-52145 | O-RING | 65345- | |
| 7 | 01010-81235 | BOLT | 65345- | |
| 8 | 01643-31232 | WASHER | 65345- | |
| 195-30-01500 | FLOATING SEAL ASS'Y | 66403- | ||
| 195-30-00870 | FLOATING SEAL ASS'Y | 65345-66402 | ||
| 9 | \6\ | SEAL | 66403- | |
| 9 | \6\ | SEAL | 65345-66402 | |
| 10 | \6\ | O-RING | 65345- | |
| 11 | 195-30-62680 | RING | 65345- | |
| 12 | 07052-31624 | PLUG | 65345- | |
| 13 | 17A-30-13470 | SUPPORT ASS'Y | 65345- | |
| 14 | 17A-30-12150 | PLATE (WELDED) | 65345- | |
| 15 | 17A-30-13490 | SUPPORT ASS'Y | 65345- | |
| 16 | 17A-30-12150 | PLATE (WELDED) | 65345- | |
| 17 | 130-30-13170 | BOLT | 65345- | |
| 18 | 01643-31645 | WASHER | 65345- | |
| 19 | 01582-11613 | NUT | 65345- | |
| 20 | 07049-01215 | PLUG | 65345- |
