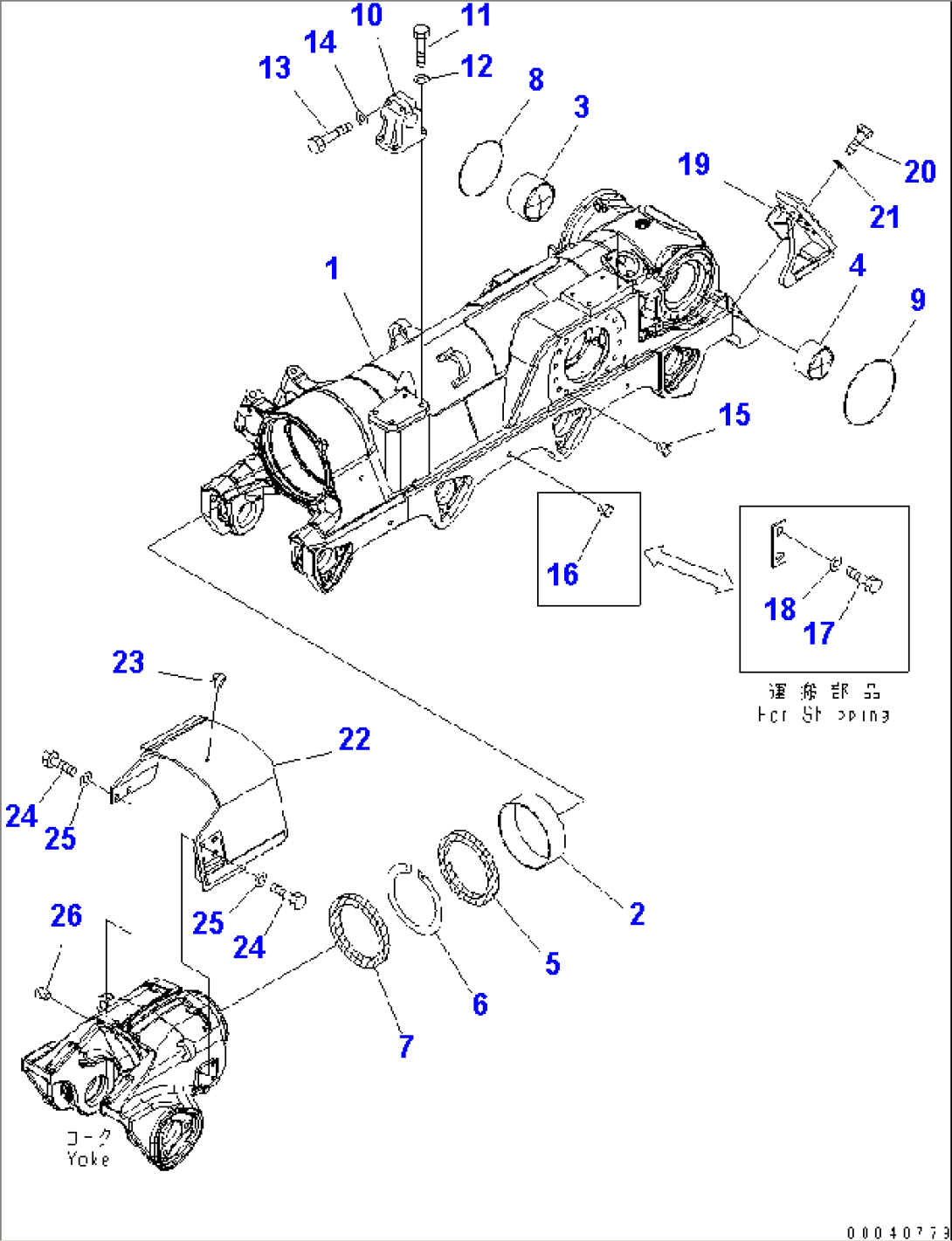

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-30-01510 | TRACK FRAME ASS'Y | 30001-@ | ||
| 1 | 198-30-68114 | TRACK FRAME | 30049-30051 | |
| 1 | \0\198-30-68113 | TRACK FRAME,L.H. | 30010-30048 | |
| 1 | \0\198-30-68112 | TRACK FRAME,L.H. | 30001-30009 | |
| 2 | 198-30-31220 | BUSHING | 30001-@ | |
| 3 | 198-50-31210 | BUSHING | 30001-@ | |
| 4 | 198-50-31190 | BUSHING | 30001-@ | |
| 5 | 198-30-31231 | SEAL | 30001-@ | |
| 6 | 198-30-31250 | RING | 30001-@ | |
| 7 | 198-30-31240 | SEAL | 30001-@ | |
| 8 | 07000-15355 | O-RING | 30001-@ | |
| 9 | 07000-15315 | O-RING | 30001-@ | |
| 10 | 198-30-15132 | SUPPORT | 30001-@ | |
| 11 | 01010-62470 | BOLT | 30001-@ | |
| 12 | 01643-32460 | WASHER | 30001-@ | |
| 13 | 01011-62400 | BOLT | 30001-@ | |
| 14 | 01643-32460 | WASHER | 30001-@ | |
| 15 | 07049-03038 | PLUG | 30001-@ | |
| 16 | 07049-02734 | PLUG | 30001-@ | |
| 17 | 01010-62765 | BOLT | 30001-@ | |
| 18 | 01643-32780 | WASHER | 30001-@ | |
| 19 | 198-30-69870 | COVER,L.H. | 30001-30051 | |
| 20 | 01010-82470 | BOLT | 30001-30051 | |
| 21 | 01643-32460 | WASHER | 30001-30051 | |
| 22 | 198-30-69480 | COVER,L.H. | 30001-@ | |
| 23 | 07049-01620 | PLUG | 30001-@ | |
| 24 | 01010-62450 | BOLT | 30001-@ | |
| 25 | 01643-32460 | WASHER | 30001-@ | |
| 26 | 07049-02430 | PLUG | 30001-@ |
