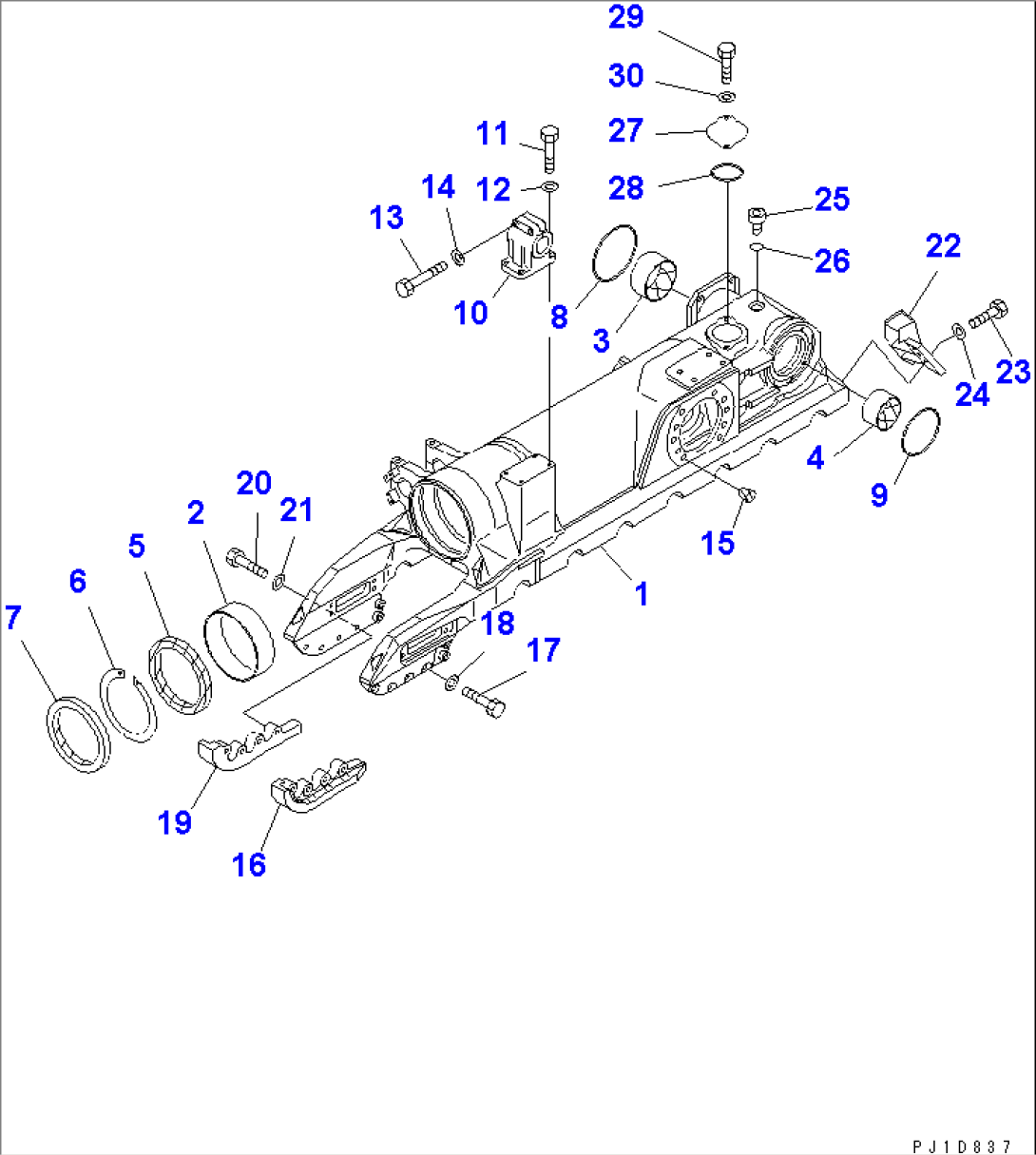

| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-30-00141 | TRACK FRAME ASS'Y | .- | ||
| \1\17M-30-00140 | TRACK FRAME ASS'Y | 10001-. | ||
| 1 | 17M-30-29411 | FRAME,TRACK | 10001- | |
| 2 | 17M-30-24241 | BUSHING | .- | |
| 2 | \1\17M-30-24240 | BUSHING | 10001-. | |
| 3 | 17M-50-22210 | BUSHING | 10001- | |
| 4 | 17M-50-22220 | BUSHING | 10001- | |
| 5 | 17M-30-24210 | SEAL | 10001- | |
| 6 | 230-09-15410 | RING,SNAP | 10001- | |
| 7 | 17M-30-11220 | SEAL | 10001- | |
| 8 | 07000-45280 | O-RING | 10001- | |
| 9 | 07000-45220 | O-RING | 10001- | |
| 10 | 17M-30-25410 | SUPPORT | 10001- | |
| 11 | 01010-32065 | BOLT | 10001- | |
| 12 | 01643-32060 | WASHER | 10001- | |
| 13 | 01010-32085 | BOLT | 10001- | |
| 14 | 01643-32060 | WASHER | 10001- | |
| 15 | 07049-02430 | PLUG | 10001- | |
| 16 | 17M-30-29540 | GUARD | 10001- | |
| 17 | 01010-32450 | BOLT | 10001- | |
| 18 | 01643-32460 | WASHER | 10001- | |
| 19 | 17M-30-29550 | GUARD | 10001- | |
| 20 | 01010-32450 | BOLT | 10001- | |
| 21 | 01643-32460 | WASHER | 10001- | |
| 22 | 17M-30-25210 | COVER | 10001- | |
| 23 | 01010-32045 | BOLT | 10001- | |
| 24 | 01643-32060 | WASHER | 10001- | |
| 25 | 07040-13618 | PLUG | 10001- | |
| 26 | 07002-43634 | O-RING | 10001- | |
| 27 | 17M-30-29590 | COVER | 10001- | |
| 28 | 07000-45155 | O-RING | 10001- | |
| 29 | 01010-31640 | BOLT | 10001- | |
| 30 | 01643-31645 | WASHER | 10001- |
