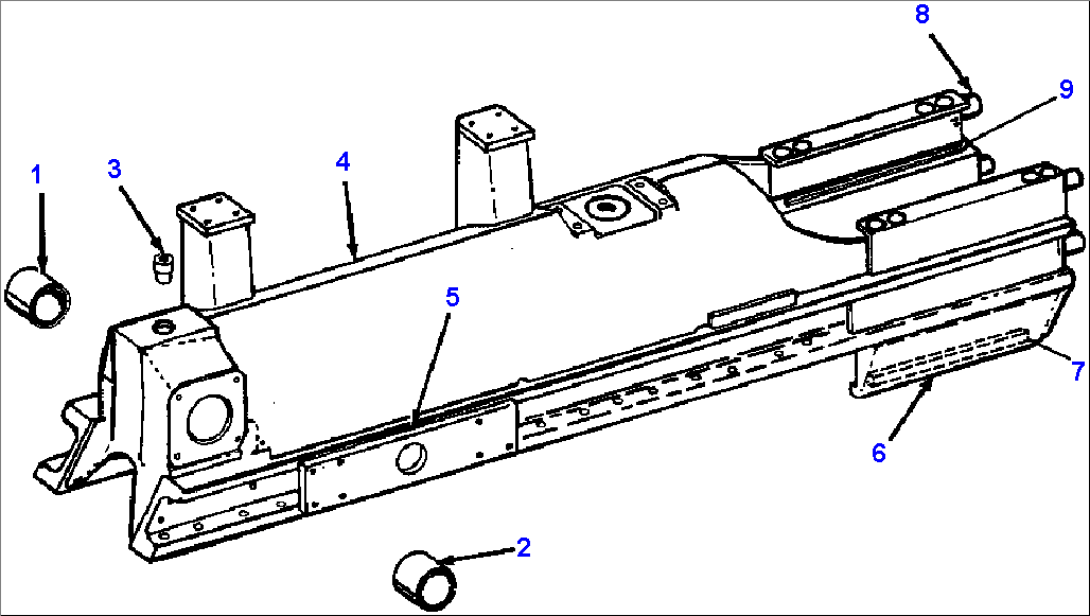

| Item | Part No. | Part Name | Qty | Serial No. |
| 715 607 C91 | FRAME ASSEMBLY, LEFT TRACK | |||
| 715 608 C91 | FRAME ASSEMBLY, RIGHT TRACK | |||
| 1 | 740 368 C1 | BUSHING, INNER PIVOT SHAFT | ||
| 2 | 740 366 C1 | BUSHING, OUTER PIVOT SHAFT | ||
| 3 | 9409 949 | PLUG, - 3/4NPT | ||
| 4 | (NSS) | FRAME, TRACK | ||
| 5 | 743 280 C1 | PLATE, MOUNTING | ||
| 6 | 620 455 C1 | GUIDE, TRACK CHAIN | ||
| 7 | 655 545 C1 | PLATE, TRACK CHAIN WEAR | ||
| 8 | 612 538 C1 | BLOCK, FRONT IDLER STOP TAPPING | ||
| 703 599 C91 | PACKAGE, WEAR BAR | |||
| 9 | (NSS) | BAR, WEAR | ||
| F1 - PACKAGE CONTAINS PARTS NOT REQUIRED FOR THIS APPLICATION. | ||||
