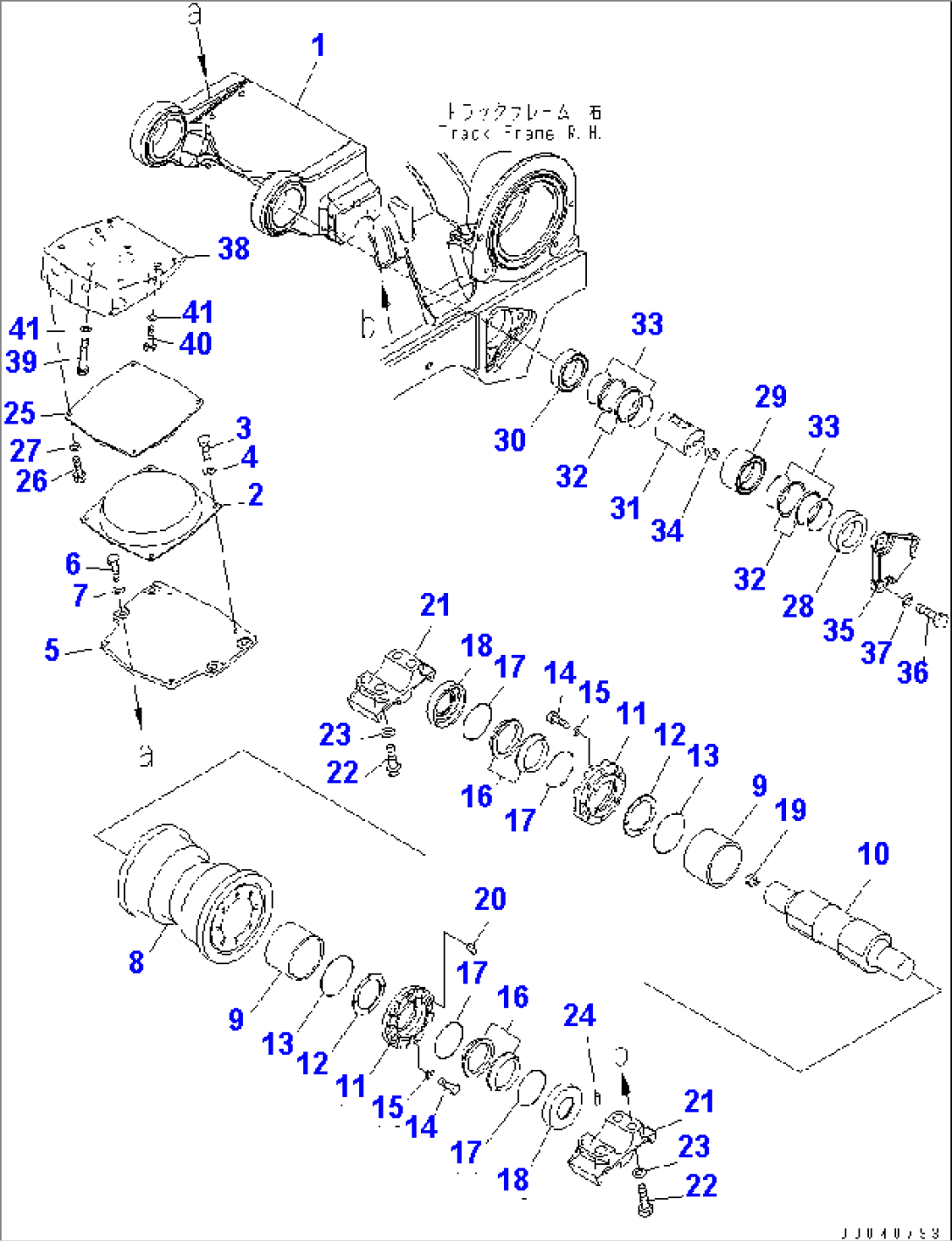

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-30-68132 | BOGIE | 30001- | |
| 2 | 198-30-69120 | PAD | 30001- | |
| 3 | 01010-81225 | BOLT | 30001- | |
| 4 | 01643-31232 | WASHER | 30001- | |
| 5 | 198-30-69182 | PLATE | 30001- | |
| 6 | 01010-82050 | BOLT | 30001- | |
| 7 | 01643-32060 | WASHER | 30001- | |
| 198-30-00680 | TRACK ROLLER ASS'Y | 30001- | ||
| 8 | 198-30-46110 | ROLLER | 30001- | |
| 9 | 198-30-46160 | BUSHING | 30001- | |
| 10 | 198-30-46130 | SHAFT | 30001- | |
| 11 | 198-30-46140 | RETAINER | 30001- | |
| 12 | 198-30-46150 | PLATE | 30001- | |
| 13 | 198-30-36290 | O-RING | 30001- | |
| 14 | 01010-61650 | BOLT | 30001- | |
| 15 | 01643-31645 | WASHER | 30001- | |
| 195-30-00302 | FLOATING SEAL ASS'Y | 30001- | ||
| 16 | \6\ | SEAL | 30001- | |
| 17 | \6\ | O-RING | 30001- | |
| 18 | 198-30-46180 | RING | 30001- | |
| 19 | 07052-31624 | PLUG | 30001- | |
| 20 | 07049-01620 | PLUG | 30001- | |
| 21 | 198-30-68241 | CAP | 30001- | |
| 22 | 19M-09-12850 | BOLT | 30001- | |
| 23 | 01643-33380 | WASHER | 30001- | |
| 24 | 04020-00616 | PIN | 30001- | |
| 25 | 198-30-69120 | PAD | 30001- | |
| 26 | 01010-81225 | BOLT | 30001- | |
| 27 | 01643-31232 | WASHER | 30001- | |
| 198-30-32900 | PIN ASS'Y | 30001- | ||
| 28 | 198-30-32820 | RING | 30001- | |
| 29 | 198-30-32830 | RING | 30001- | |
| 30 | 198-30-32840 | RING | 30001- | |
| 31 | 198-30-32950 | SHAFT | 30001- | |
| 198-30-00170 | FLOATING SEAL ASS'Y | 30001- | ||
| 32 | \6\ | SEAL | 30001- | |
| 33 | \6\ | O-RING | 30001- | |
| 34 | 209-30-63150 | PLUG | 30001- | |
| 35 | 198-30-69391 | COVER | 30001- | |
| 36 | 01010-62765 | BOLT | 30001- | |
| 37 | 01643-32780 | WASHER | 30001- | |
| 38 | 198-30-69152 | PLATE | 30001- | |
| 39 | 01010-82085 | BOLT | 30001- | |
| 40 | 01010-82045 | BOLT | 30001- | |
| 41 | 01643-32060 | WASHER | 30001- |
