| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14Y-30-18130 | Bushing | 30001- | |
| 2 | 14Y-30-18140 | Bushing | 30001- | |
| 3 | 01010-81225 | Bolt | 30001- | |
| 4 | 01643-31232 | Washer | 30001- | |
| 5 | 14Y-30-11277 | Cover | 30001- | |
| 6 | 07002-12434 | O-ring | 30001- | |
| 7 | 07040-12414 | Plug | 30001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D61exi 23 s/n 30001 up
- Undercarriage
- Track frame related parts (#30001 )
Поиск по каталогу

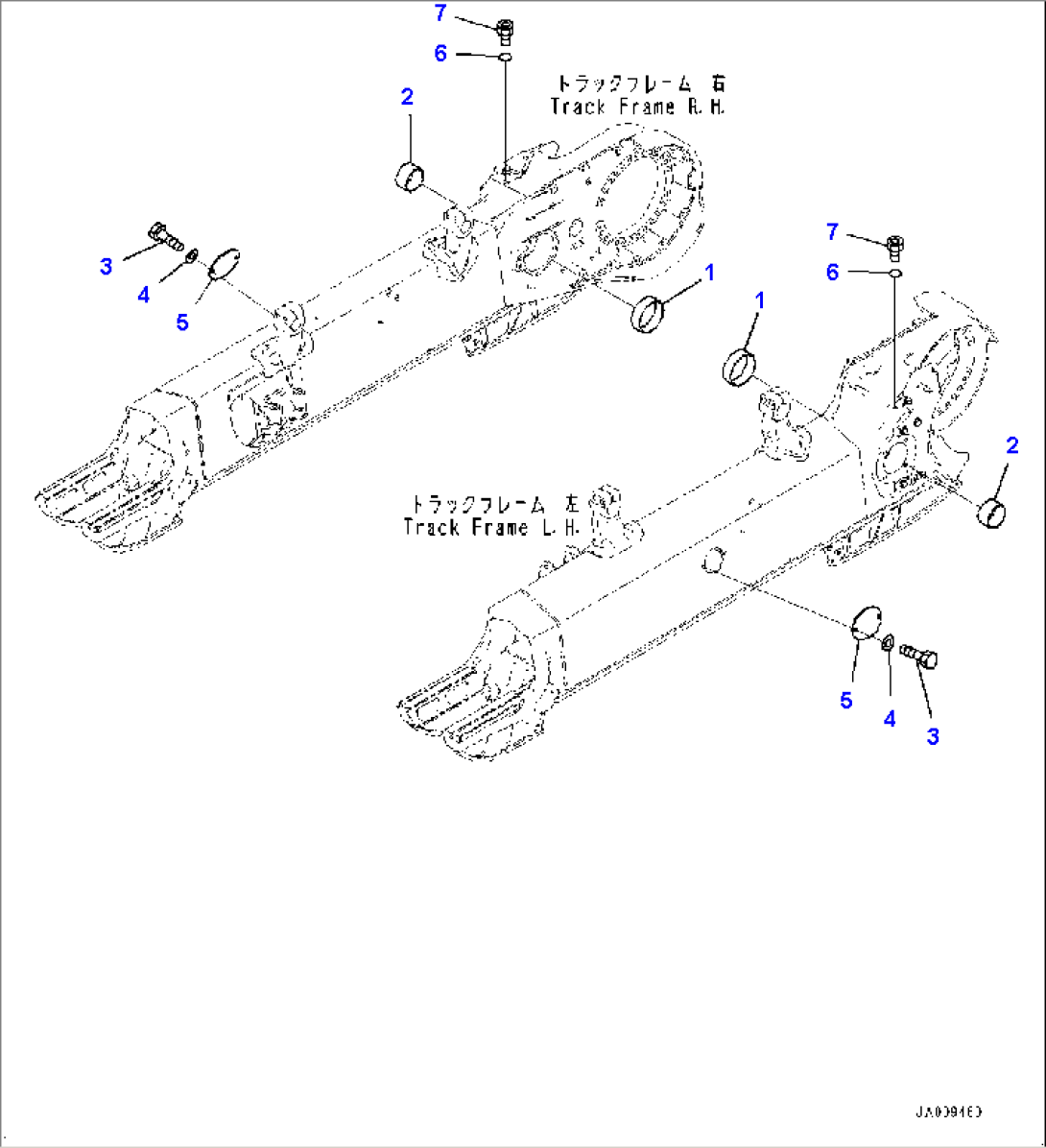

Track Frame Related Parts (#30001-)
