| Item | Part No. | Part Name | Qty | Serial No. |

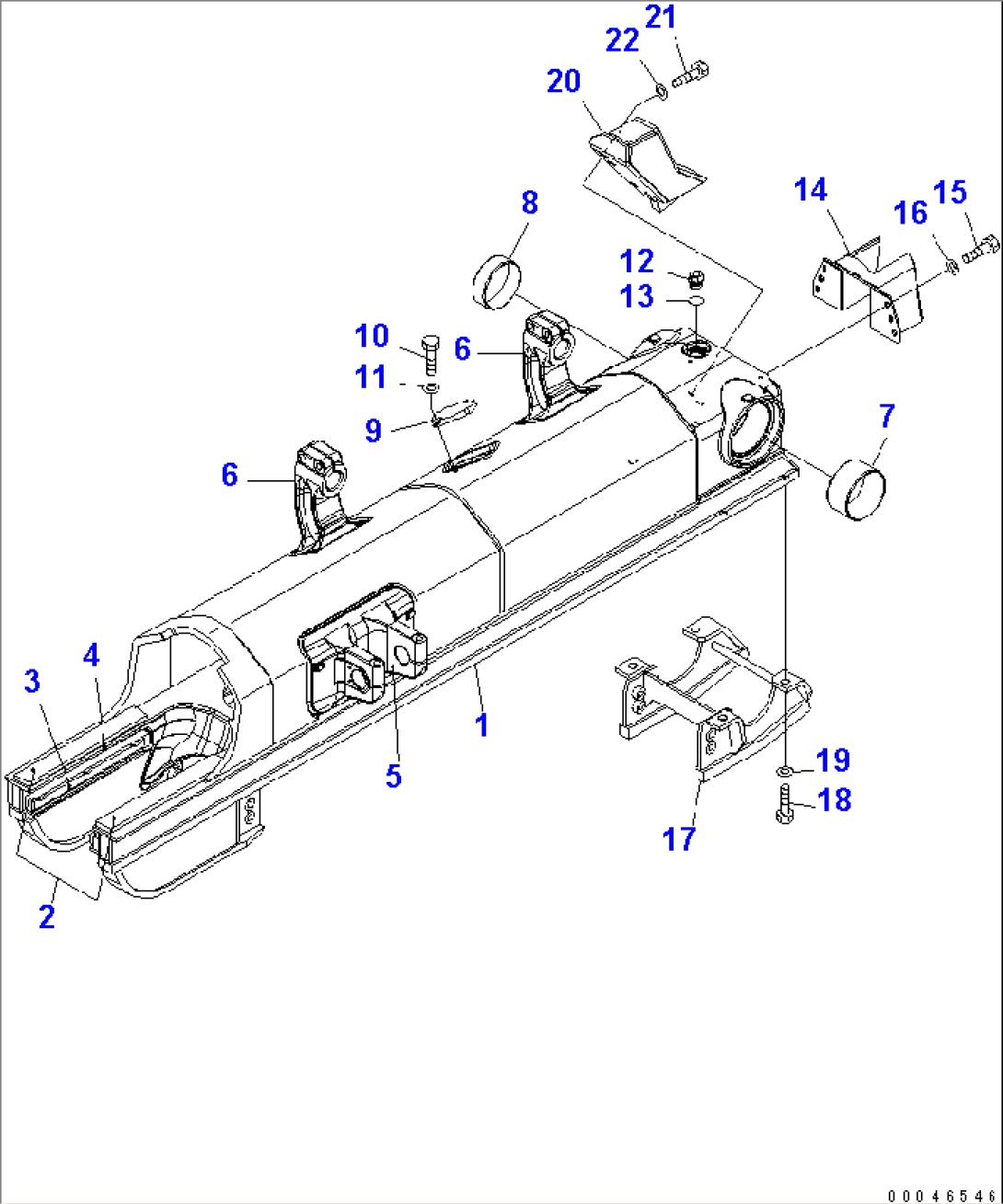

| 154-30-01122 | TRACK FRAME ASS'Y | 1001- | ||
| 1 | \6\ | FRAME | 1001- | |
| 2 | 154-30-71220 | PLATE (WELDED) | 1001- | |
| 3 | 154-30-71231 | PLATE (WELDED) | 1001- | |
| 4 | 154-30-71B90 | PLATE (WELDED) | 1001- | |
| 5 | 154-30-71191 | BRACKET (WELDED) | 1001- | |
| 6 | 154-30-71211 | BRACKET (WELDED) | 1001- | |
| 7 | 17M-50-22220 | BUSHING | 1001- | |
| 8 | 14Y-30-18130 | BUSHING | 1001- | |
| 9 | 154-30-71261 | COVER | 1001- | |
| 10 | 01010-81230 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1001- | |
| 12 | 07044-13620 | PLUG | 1001- | |
| 13 | 07002-03634 | O-RING | 1001- | |
| 14 | 154-30-71411 | COVER | 1001- | |
| 15 | 01010-81230 | BOLT | 1001- | |
| 16 | 01643-31232 | WASHER | 1001- | |
| 17 | 154-30-71341 | GUARD | 1001- | |
| 18 | 01010-82255 | BOLT | 1001- | |
| 19 | 01643-32260 | WASHER | 1001- | |
| 20 | 154-30-71441 | COVER | 1001- | |
| 21 | 01010-82255 | BOLT | 1001- | |
| 22 | 01643-32260 | WASHER | 1001- |
