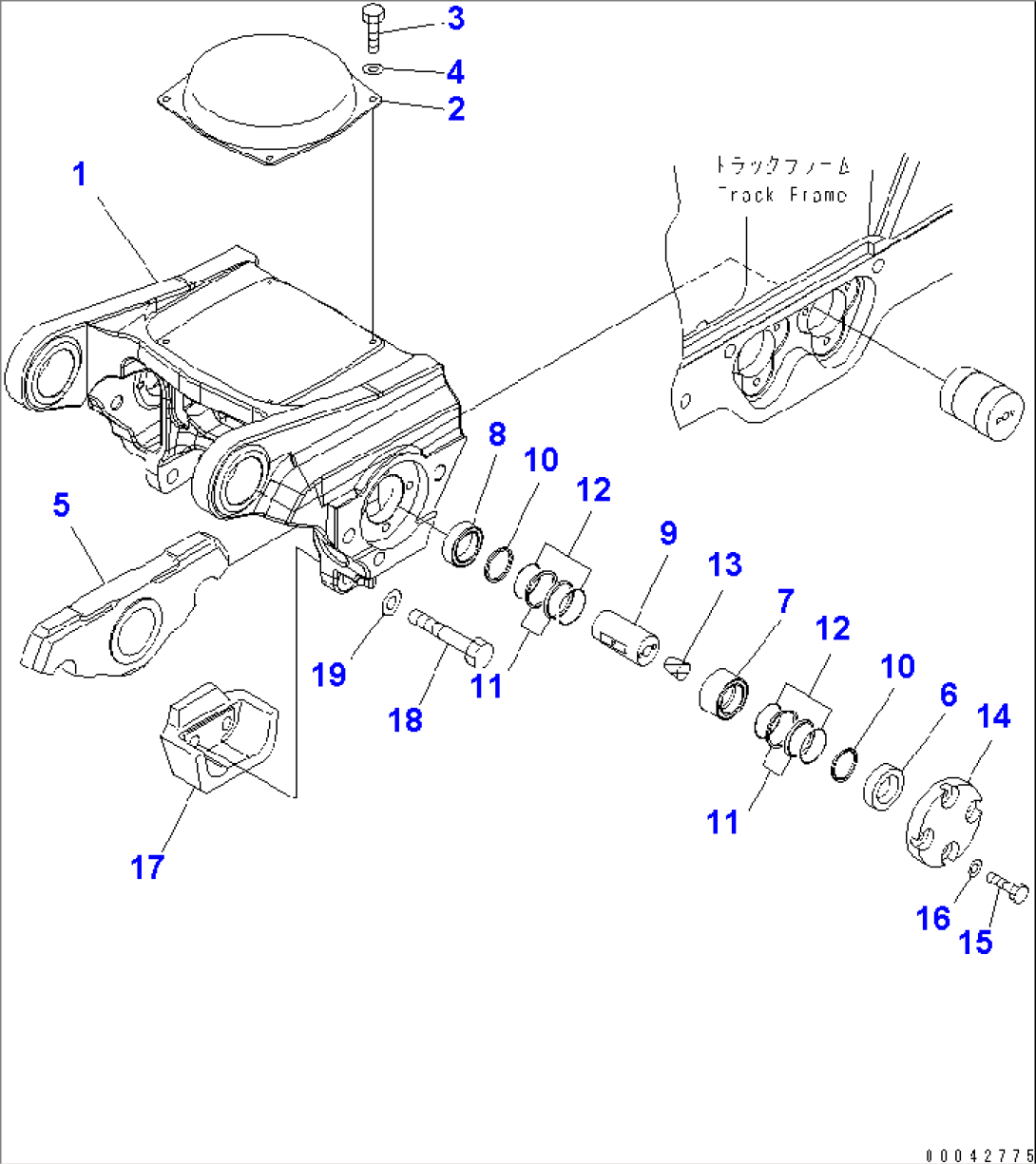

| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-30-00561 | BOGIE ASS'Y | 35001- | ||
| 1 | 17M-30-56112 | BOGIE | 35001- | |
| 2 | 17M-30-56130 | PAD | 35001- | |
| 3 | 01010-81020 | BOLT | 35001- | |
| 4 | 01643-31032 | WASHER | 35001- | |
| 5 | 17M-30-56122 | BOGIE | 35001- | |
| 17M-30-56201 | PIN ASS'Y | 35001- | ||
| 6 | 17M-30-56221 | RING | 35001- | |
| 7 | 17M-30-56231 | RING | 35001- | |
| 8 | 17M-30-56241 | RING | 35001- | |
| 9 | 17M-30-56251 | SHAFT | 35001- | |
| 10 | 17M-30-56261 | SPACER | 35001- | |
| 17M-30-00500 | FLOATING SEAL ASS'Y | 35001- | ||
| 11 | \6\ | SEAL | 35001- | |
| 12 | \6\ | O-RING | 35001- | |
| 13 | 209-30-63150 | PLUG | 35001- | |
| 14 | 17M-30-56341 | COVER | 35001- | |
| 15 | 01010-61640 | BOLT | 35001- | |
| 16 | 01643-31645 | WASHER | 35001- | |
| 17 | 17M-30-57131 | GUIDE | 35001- | |
| 18 | 01010-62470 | BOLT | 35001- | |
| 19 | 01643-32460 | WASHER | 35001- |
