| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21K-30-41231 | Cover | 1001- | |
| 2 | 21K-30-41241 | Cover | 1001- | |
| 3 | 21K-30-41251 | Collar | 1001- | |
| 4 | 419-43-17920 | Washer | 1001- | |
| 5 | 20Y-54-12670 | Washer | 1001- | |
| 6 | 01010-81235 | Bolt | 1001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc228uslc 10 s/n 1001 up
- Undercarriage
- Track frame under cover (#1001 )
Поиск по каталогу

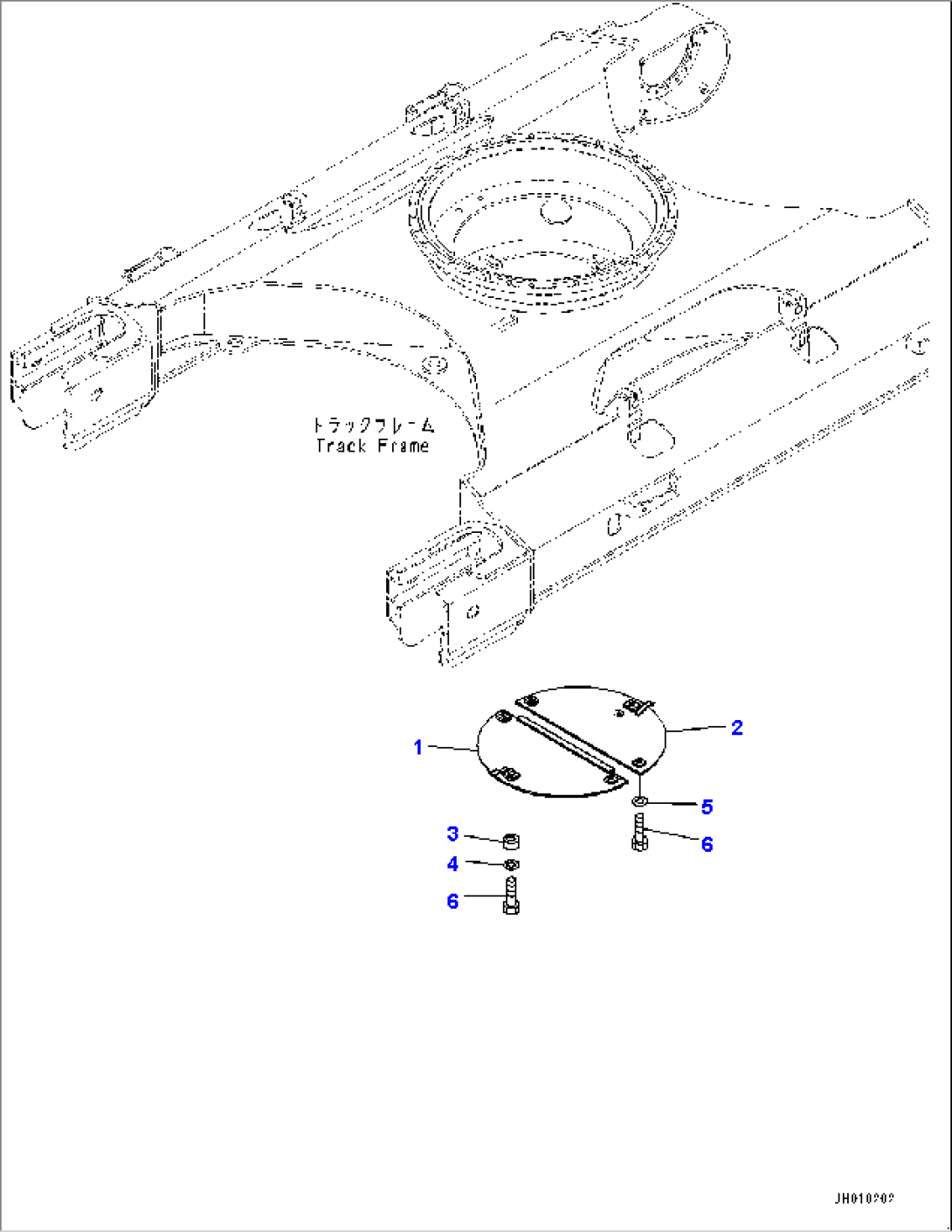

Track Frame Under Cover (#1001-)
