| Item | Part No. | Part Name | Qty | Serial No. |

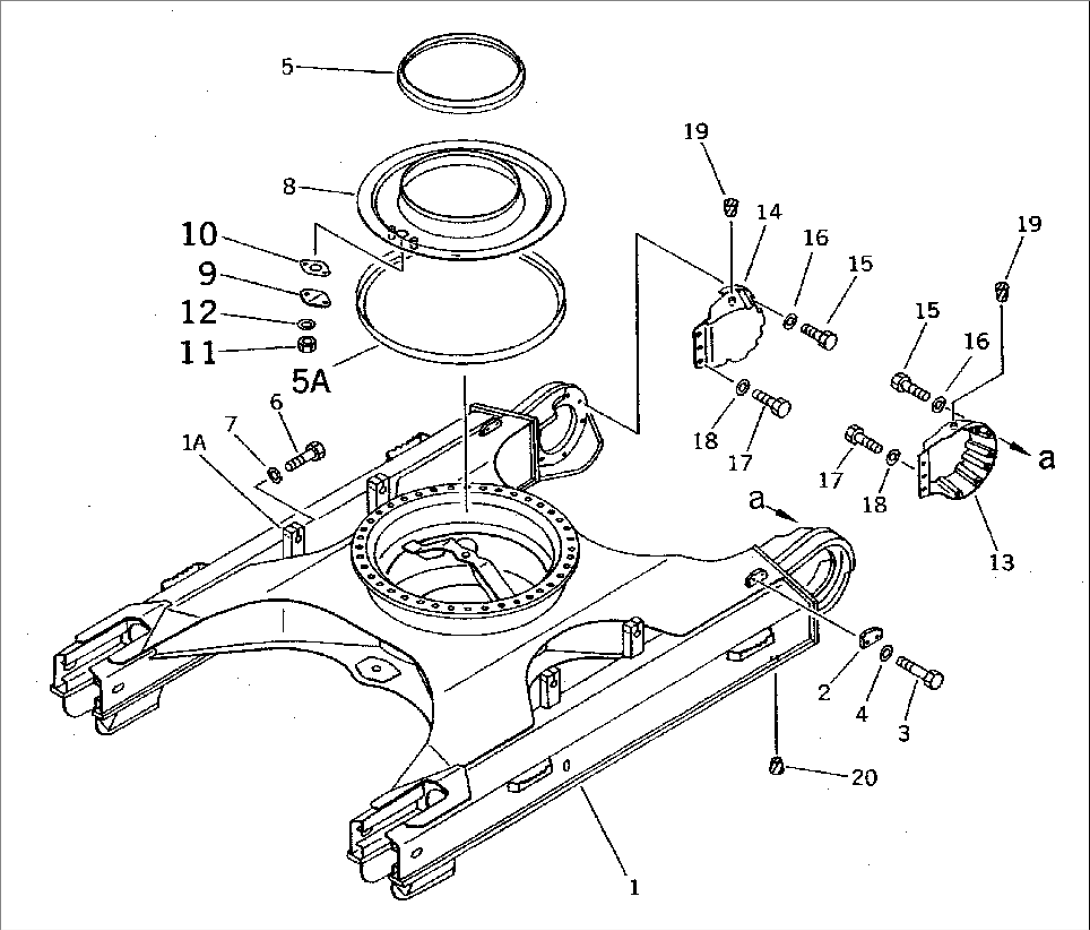

| G-1 | (\8\207-30-X3140) | FRAME GROUP | 10001-10609 | |
| ==================== | ||||
| 1 | 207-30-52114 | FRAME | 10382-10609 | |
| 207-30-52112 | FRAME | 10257-10381 | ||
| \3\207-30-52111 | FRAME | 10001-10256 | ||
| (207-30-52112{207-27-31180(40))} | ||||
| 1A | 207-30-51270 | PLATE | 10001-10609 | |
| 2 | 207-30-52121 | PLATE | 10001-@ | |
| 3 | 01010-32070 | BOLT | 10155-@ | |
| \0\01010-52070 | BOLT | 10001-10154 | ||
| 4 | 01643-32060 | WASHER | 10001-@ | |
| 5 | 205-30-71170 | SEAL | 10001-@ | |
| 5A | 207-30-51260 | SEAL | 10001-@ | |
| 6 | 01011-32000 | BOLT | 10155-@ | |
| \0\01011-52000 | BOLT | 10001-10154 | ||
| 7 | 01643-32060 | WASHER | 10001-@ | |
| ==================== | ||||
| G-2 | (\8\207-30-X2260) | COVER GROUP | 10001-@ | |
| ==================== | ||||
| 8 | 207-30-51211 | COVER | 10001-@ | |
| 9 | 205-30-71181 | COVER | 10001-@ | |
| 10 | 205-30-71191 | GASKET | 10001-@ | |
| 11 | 01580-11008 | NUT | 10001-@ | |
| 12 | 01643-31032 | WASHER | 10001-@ | |
| ==================== | ||||
| G-3 | (\8\207-30-X2270) | FINAL COVER GROUP | 10001-@ | |
| ==================== | ||||
| 13 | 207-30-51241 | CASE,L.H. | 10001-@ | |
| 14 | 207-30-51251 | CASE,R.H. | 10001-@ | |
| 15 | 01010-51255 | BOLT | 10001-@ | |
| 16 | 01643-31232 | WASHER | 10001-@ | |
| 17 | 01010-51240 | BOLT | 10001-@ | |
| 18 | 01643-31232 | WASHER | 10001-@ | |
| 19 | 07049-01215 | PLUG | 10001-@ | |
| 20 | 07049-02430 | PLUG,(FOR W/O. FULL ROLLER GUARD) | 10001-@ | |
| ==================== |
