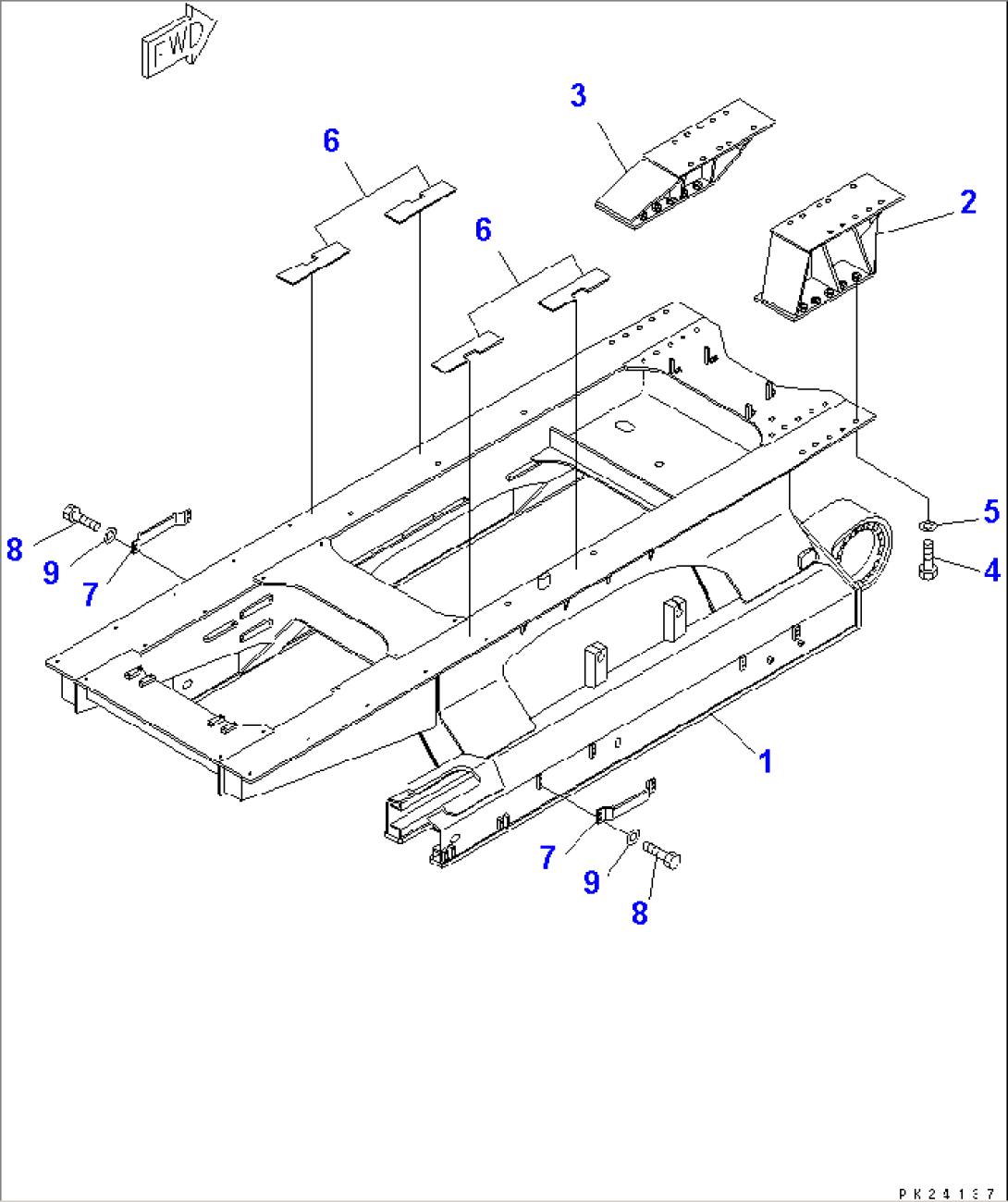

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8248-30-1112 | FRAME,TRACK | 1006-1200 | |
| 1 | 8248-30-1111 | FRAME,TRACK | 1002-1005 | |
| 2 | 8248-30-1121 | BRACKET,L.H. | 1002-@ | |
| 3 | 8248-30-1131 | BRACKET,R.H. | 1002-@ | |
| 4 | 01010-83085 | BOLT | 1002-@ | |
| 5 | 01643-33080 | WASHER | 1002-@ | |
| 6 | 8248-70-1130 | CUSHION | 1002-1200 | |
| 7 | 208-30-61260 | BRACKET | 1002-@ | |
| 8 | 01010-81640 | BOLT | 1002-@ | |
| 9 | 01643-31645 | WASHER | 1002-@ |
