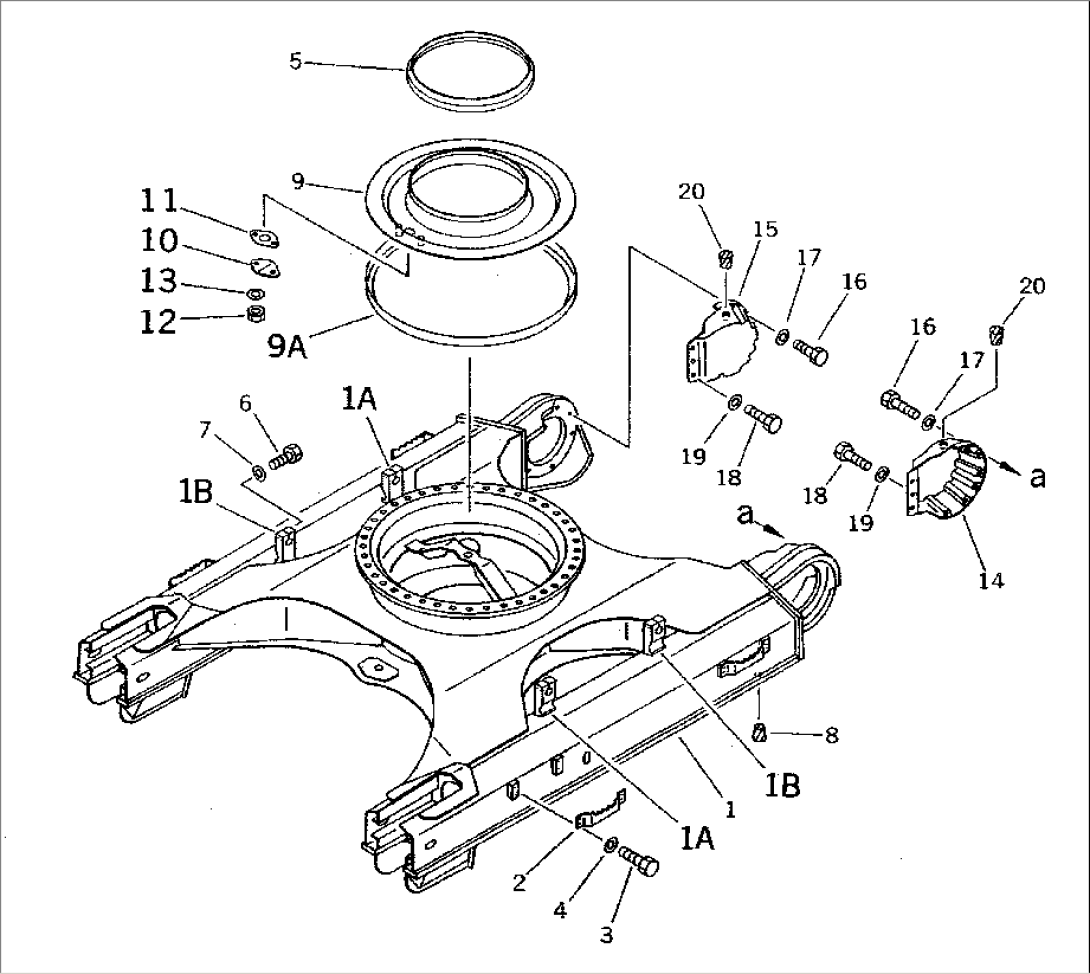

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\208-30-X2240) | FRAME GROUP | 20001-20602 | |
| ==================== | ||||
| 1 | 208-30-51112 | FRAME | 20410-20602 | |
| 1 | 208-30-51111 | FRAME | 20001-20409 | |
| 1A | 208-30-51420 | PLATE (WELDED) | 20001-@ | |
| 1B | 208-30-51410 | PLATE (WELDED) | 20001-@ | |
| 2 | 208-30-51260 | BRACKET | 20001-@ | |
| 3 | 01010-51640 | BOLT | 20001-@ | |
| 4 | 01643-31645 | WASHER | 20001-@ | |
| 5 | 205-30-71170 | SEAL | 20001-@ | |
| 6 | 01011-32000 | BOLT | 20096-@ | |
| 6 | \1\01011-52000 | BOLT | 20001-20095 | |
| 7 | 01643-32060 | WASHER | 20001-@ | |
| 8 | 07049-02430 | PLUG,(FOR W/O. FULL ROLLER GUARD) | 20001-@ | |
| ==================== | ||||
| G-2 | (\8\208-30-X2260) | COVER GROUP | 20001-@ | |
| ==================== | ||||
| 9 | 208-30-51211 | COVER | 20001-@ | |
| 9A | 207-30-51260 | SEAL | 20001-@ | |
| 10 | 205-30-71181 | COVER | 20001-@ | |
| 11 | 205-30-71191 | GASKET | 20001-@ | |
| 12 | 01580-11008 | NUT | 20001-@ | |
| 13 | 01643-31032 | WASHER | 20001-@ | |
| ==================== | ||||
| G-3 | (\8\208-30-X2270) | FINAL COVER GROUP | 20001-@ | |
| ==================== | ||||
| 14 | 208-30-51240 | CASE,L.H. | 20001-@ | |
| 15 | 208-30-51250 | CASE,R.H. | 20001-@ | |
| 16 | 01010-51645 | BOLT | 20001-@ | |
| 17 | 01643-31645 | WASHER | 20001-@ | |
| 18 | 01010-51665 | BOLT | 20001-@ | |
| 19 | 01643-31645 | WASHER | 20001-@ | |
| 20 | 07049-01215 | PLUG | 20001-@ | |
| ==================== |
