| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21W-30-34111 | GUARD | F10003- | |
| 2 | 01010-81435 | BOLT | F10003- | |
| 3 | 01643-31445 | WASHER | F10003- | |
| 4 | 201-30-R1220 | GUARD | F10003- | |
| 5 | 01010-81435 | BOLT | F10003- | |
| 6 | 01643-31445 | WASHER | F10003- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc88mr 10 s/n f10003 up
- Undercarriage
- Track guard and track roller guard
Поиск по каталогу

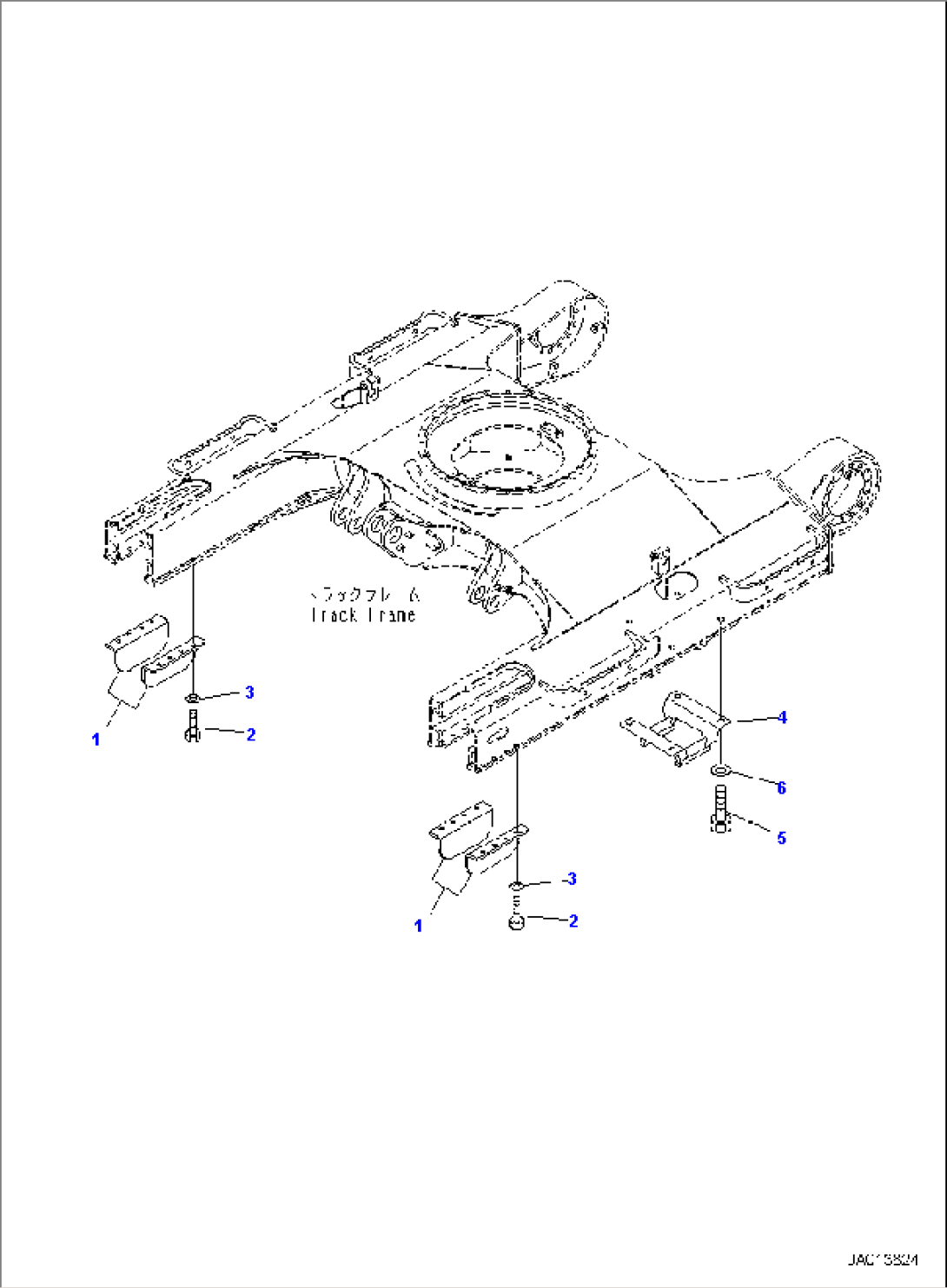

TRACK GUARD AND TRACK ROLLER GUARD
