| Item | Part No. | Part Name | Qty | Serial No. |

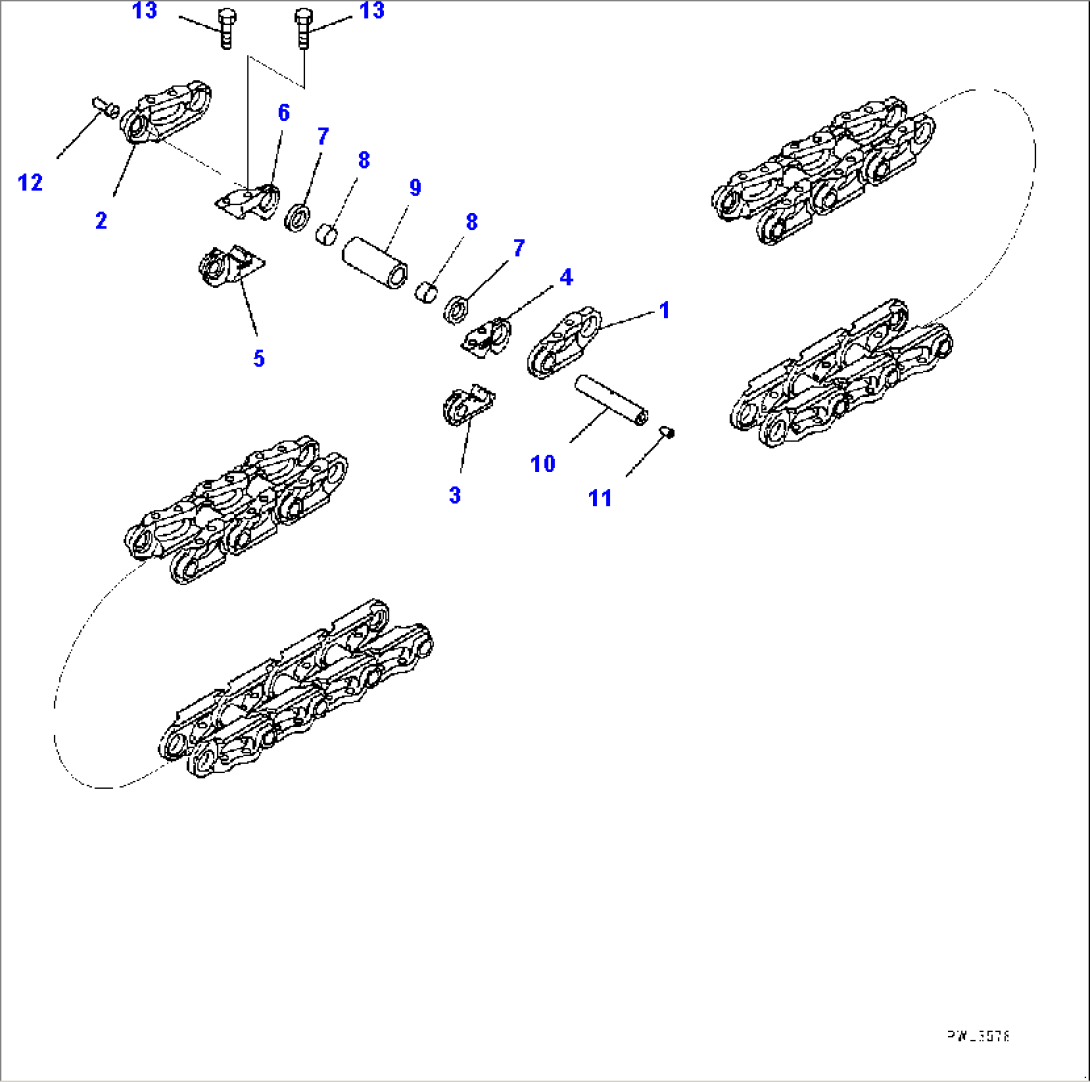

| 17A-32-00110 | Track Link Assembly | 100040- | ||
| 1 | 15A-32-77120 | Link | 100040- | |
| 2 | 15A-32-77130 | Link | 100040- | |
| 2 | 175-32-08010 | Link Kit, Master | 100040- | |
| 3 | Link, Master | 100040- | ||
| 4 | Link, Master | 100040- | ||
| 4 | 175-32-08020 | Link Kit, Master | 100040- | |
| 5 | Link, Master | 100040- | ||
| 6 | Link, Master | 100040- | ||
| 7 | 17A-32-21201 | Seal Assembly | 100040- | |
| 8 | 175-32-81181 | Spacer | 100040- | |
| 9 | 15A-32-11142 | Bushing | 100040- | |
| 10 | 175-32-81450 | Pin | 100040- | |
| 11 | 07059-11830 | Plug, Large | 100040- | |
| 12 | 07059-20721 | Plug, Small | 100040- | |
| 13 | 175-32-41261 | Bolt, Master Track Shoe | 100040- |
