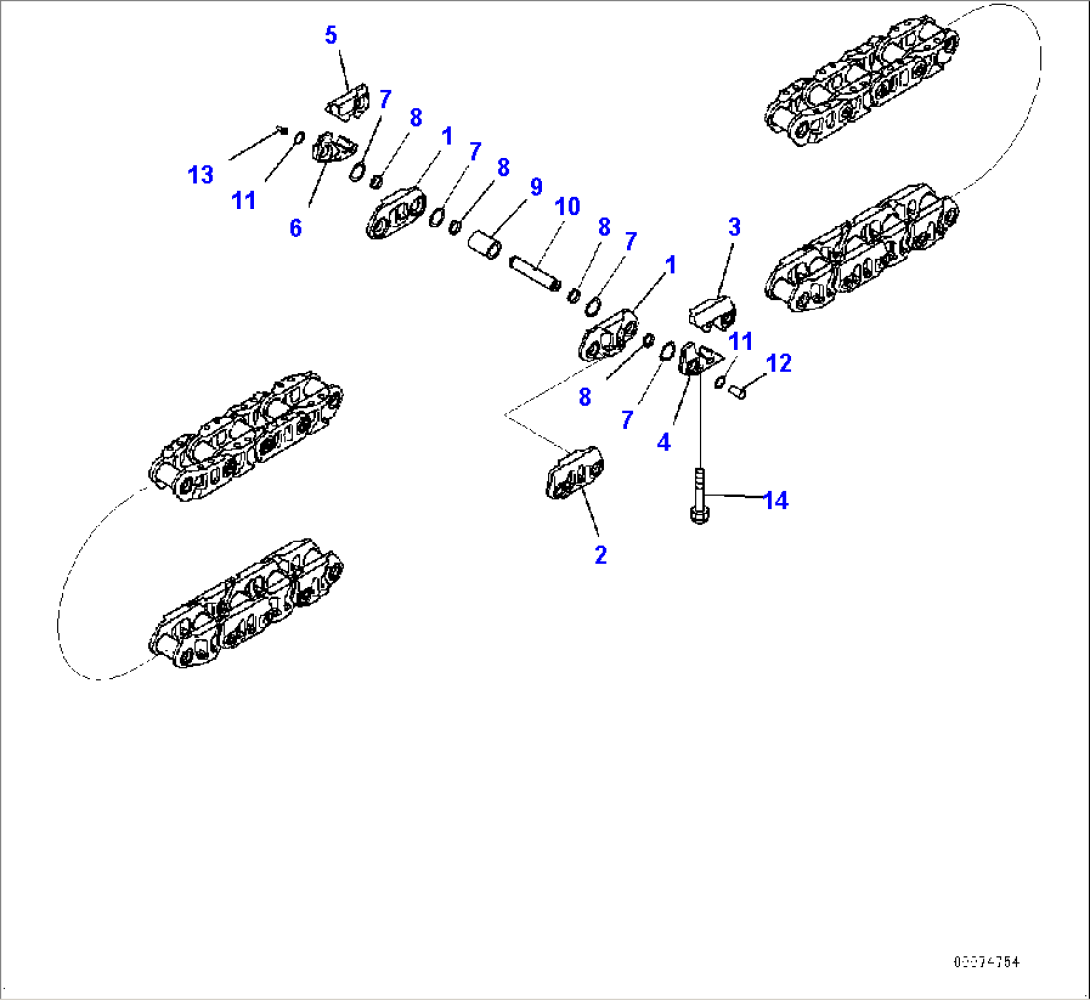

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-32-00312 | Track Link Assembly | 90627- | ||
| 14X-32-00311 | Track Link Assembly | 90023-90626 | ||
| 1 | 14X-32-15610 | Link, Inner | 90023- | |
| 2 | 14X-32-15630 | Link, Outer | 90023- | |
| 2 | 14X-32-08210 | Link Kit, Master, L.H. | 90023- | |
| 3 | Link, Master | 90023- | ||
| 4 | Link, Master | 90023- | ||
| 4 | 14X-32-08220 | Link Kit, Master, R.H. | 90023- | |
| 5 | Link, Master | 90023- | ||
| 6 | Link, Master | 90023- | ||
| 7 | 14X-32-15701 | Seal Assembly | 90023- | |
| 8 | 14X-32-15680 | Spacer | 90023- | |
| 9 | 14X-32-15641 | Bushing | 90627- | |
| 9 | 14X-32-15640 | Bushing | 90023-90026 | |
| 10 | 14X-32-15650 | Pin | 90023- | |
| 11 | 14X-32-15730 | Ring | 90023- | |
| 12 | 07059-11830 | Plug, Large | 90023- | |
| 13 | 07059-20721 | Plug, Small | 90023- | |
| 14 | 14X-32-15310 | Bolt, Master Track Shoe | 90023- |
