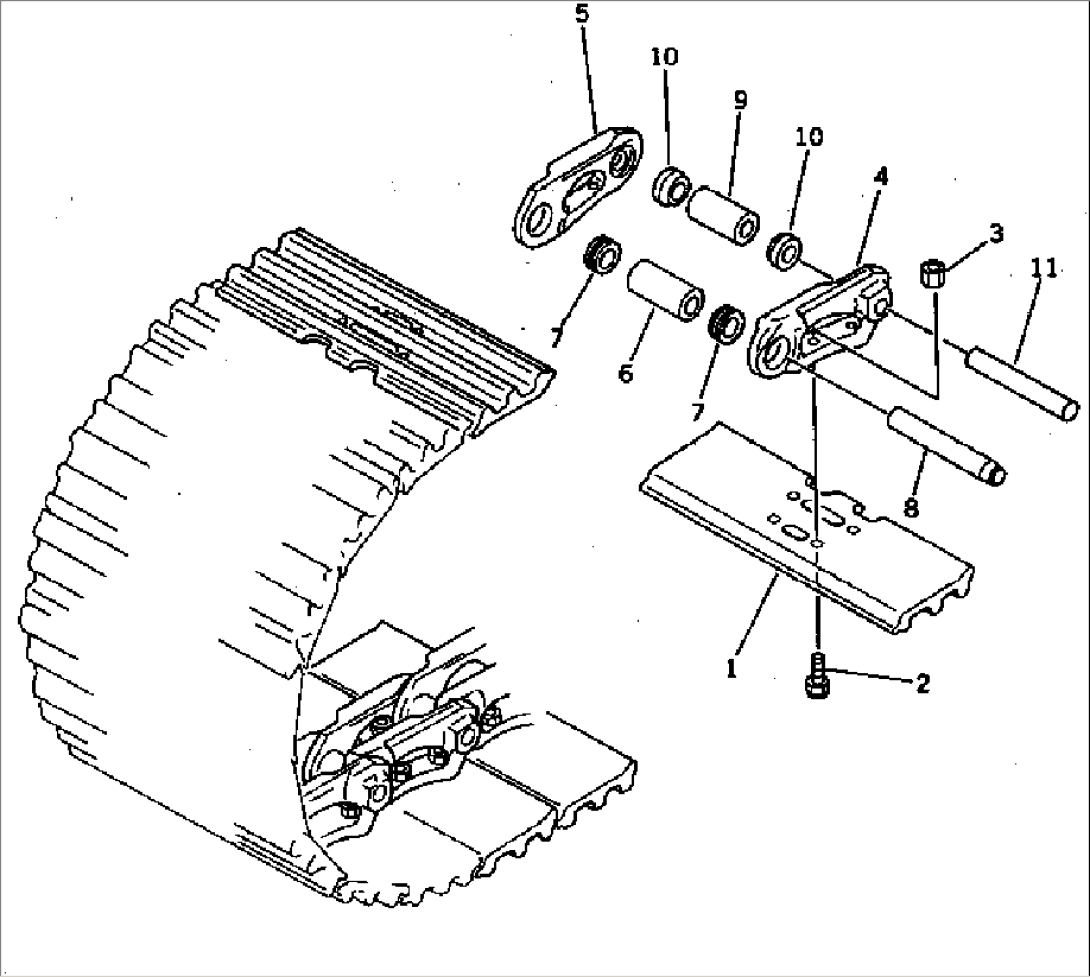

| Item | Part No. | Part Name | Qty | Serial No. |
| 510MM WIDE¤WITH HOLE | ||||
| 203-32-01024 | TRACK SHOE ASS'Y | 10198- | ||
| \0\203-32-01022 | TRACK SHOE ASS'Y | 10001-10197 | ||
| 1 | 203-32-41111 | SHOE,TRACK | 10001- | |
| 2 | 112-32-11211 | BOLT¤ SHOE (KIT) | 10198- | |
| 203-32-21210 | BOLT¤ SHOE (KIT) | 10001-10197 | ||
| 3 | 112-32-11221 | NUT¤ SHOE (KIT) | 10198- | |
| 01803-01420 | NUT (KIT) | 10001-10197 | ||
| 203-32-00011 | TRACK LINK ASS'Y | 10001- | ||
| 4 | 110-32-11322 | LINK,TRACK¤ L.H. | 10001- | |
| 5 | 110-32-11332 | LINK,TRACK¤ R.H. | 10001- | |
| 6 | 203-32-11342 | BUSHING,REGULAR | 10001- | |
| 7 | 203-32-11360 | SEAL,DUST¤ REGULAR | 10001- | |
| 8 | 203-32-11351 | PIN,REGULAR | 10001- | |
| 9 | 203-32-11372 | BUSHING,MASTER | 10001- | |
| 10 | 203-32-11380 | SEAL,DUST¤ MASTER | 10001- | |
| 11 | 203-32-11391 | PIN,MASTER | 10001- | |
| 610MM WIDE{WITH HOLE} | ||||
| 203-32-01033 | TRACK SHOE ASS'Y | 10001- | ||
| 1 | 203-32-11281 | SHOE¤ TRACK | 10001- | |
| 2 | 112-32-11211 | BOLT¤ SHOE (KIT) | 10001- | |
| 3 | 112-32-11221 | NUT¤ SHOE (KIT) | 10001- | |
| 203-32-00011 | TRACK LINK ASS'Y | 10001- | ||
| SERVICE KIT | ||||
| 112-32-05021 | SHOE BOLT AND NUT K. | 10198- | ||
| \0\203-32-05010 | SHOE BOLT AND NUT K. | 10001-10197 | ||
| 1 | 112-32-11211 | BOLT¤ SHOE | 10198- | |
| 203-32-21210 | BOLT¤ SHOE | 10001-10197 | ||
| 2 | 112-32-11221 | NUT¤ SHOE | 10198- | |
| 01803-01420 | NUT | 10001-10197 | ||
| OVERSIZE 0.10MM | ||||
| 6 | 202-98-09112 | BUSHING,REGULAR | 10001- | |
| 8 | 202-98-09011 | PIN,REGULAR | 10001- | |
| 9 | 202-98-09142 | BUSHING,MASTER | 10001- | |
| 11 | 202-98-09041 | PIN,MASTER | 10001- | |
| OVERSIZE 0.18MM | ||||
| 6 | 202-98-09132 | BUSHING,REGULAR | 10001- | |
| 8 | 202-98-09031 | PIN,REGULAR | 10001- | |
| 9 | 202-98-09162 | BUSHING,MASTER | 10001- | |
| 11 | 202-98-09061 | PIN,MASTER | 10001- |
