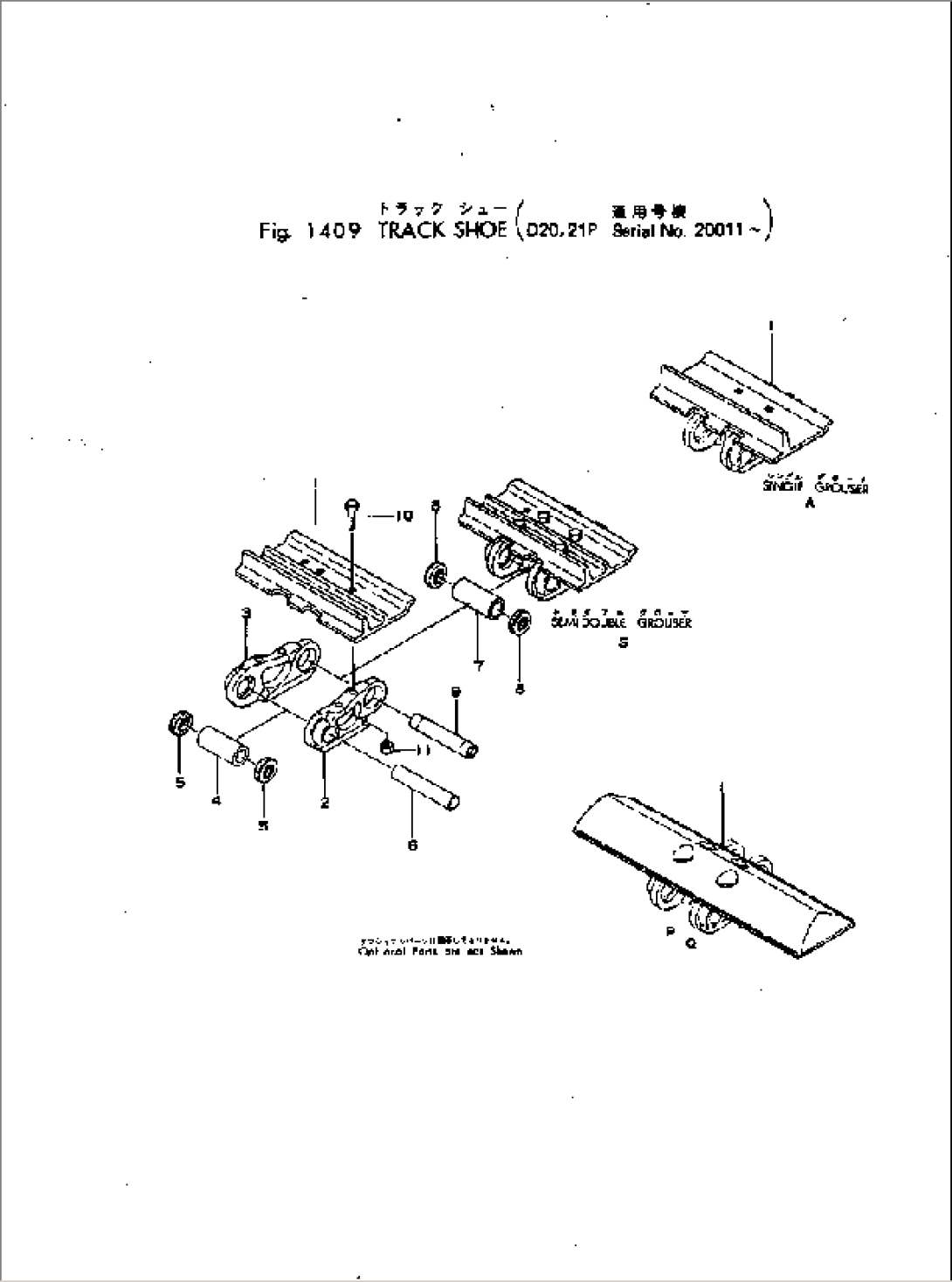

| Item | Part No. | Part Name | Qty | Serial No. |
| SWAMP 510MM | ||||
| 101-820-0104 | TRACK SHOE ASS'Y | .- | ||
| 101-820-0102 | TRACK SHOE ASS'Y | 20011-. | ||
| 1 | 101-820-7110 | SHOE,TRACK | 20011- | |
| 101-32-00013 | TRACK LINK ASS'Y | .- | ||
| 101-32-00012 | TRACK LINK ASS'Y | 20007-. | ||
| 2 | 101-32-11120 | LINK | 20007- | |
| 3 | 101-32-11130 | LINK | 20007- | |
| 4 | 101-32-11141 | BUSHING | 20007- | |
| 101-32-11270 | SEAL,DUST | .- | ||
| 5 | 101-32-11250 | SEAL,DUST | 20007-. | |
| 6 | 101-32-11150 | PIN | 20007- | |
| 7 | 101-32-11171 | BUSHING | 20007- | |
| 8 | 101-32-11260 | SEAL,DUST | 20007- | |
| 9 | 101-32-11190 | PIN,MASTER | 20007- | |
| 10 | 101-820-7210 | BOLT, SHOE (KIT) | 20011- | |
| 11 | 01803-01218 | NUT, SHOE (KIT) | 20007- | |
| SERVICE KIT | ||||
| 10 | 101-820-0501 | SHOE BOLT AND NUT K. | 20011- | |
| 10 | 101-820-7210 | BOLT, SHOE | 20011- | |
| 11 | 01803-01218 | NUT, SHOE | 20011- |
