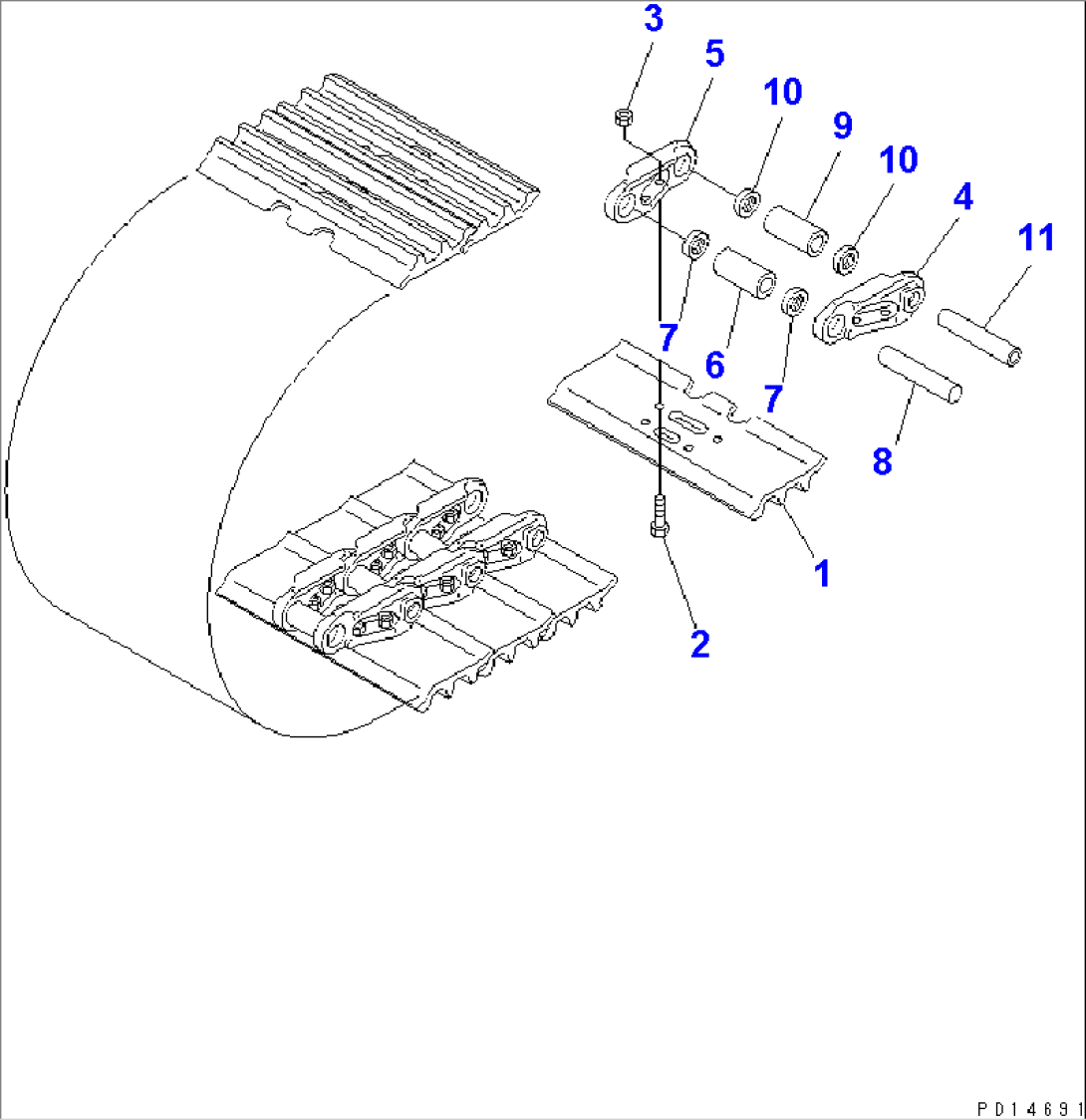

| Item | Part No. | Part Name | Qty | Serial No. |
| 600MM WIDE | ||||
| 20Y-32-02000 | TRACK SHOE ASS'Y | 1302- | ||
| 20Y-32-01004 | TRACK SHOE ASS'Y | 1201-1301 | ||
| 1 | 20Y-32-11111 | SHOE,TRACK | 1201- | |
| 2 | 20Y-32-11210 | BOLT, SHOE (KIT) | 1201- | |
| 3 | 154-32-31220 | NUT, SHOE (KIT) | 1201- | |
| 20Y-32-00013 | TRACK LINK ASS'Y | 1201- | ||
| 4 | 20Y-32-11123 | LINK,TRACK, L.H. | 1201- | |
| 5 | 20Y-32-11133 | LINK,TRACK, R.H. | 1201- | |
| 6 | 20Y-32-11140 | BUSHING, REGULAR | 1201- | |
| 7 | 20Y-32-11240 | SEAL,DUST, REGULAR, W-TYPE | 1201- | |
| 8 | 20Y-32-11150 | PIN, REGULAR | 1201- | |
| 9 | 20Y-32-11170 | BUSHING, MASTER | 1201- | |
| 10 | 20Y-32-11260 | SEAL,DUST, MASTER, W-TYPE | 1201- | |
| 11 | 20Y-32-11190 | PIN, MASTER | 1201- | |
| SERVICE KIT | ||||
| 1 | 20Y-32-05000 | SHOE BOLT AND NUT K. | 1201- | |
| 1 | 20Y-32-11210 | BOLT, SHOE | 1201- | |
| 2 | 154-32-31220 | NUT, SHOE | 1201- | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 20Y-98-09110 | BUSHING, REGULAR | 1201- | |
| 8 | 20Y-98-09010 | PIN, REGULAR | 1201- | |
| 9 | 20Y-98-09130 | BUSHING, MASTER | 1201- | |
| 10 | 20Y-98-09030 | PIN, MASTER | 1201- | |
| 0.18MM OVERSIZE | ||||
| 6 | 20Y-98-09120 | BUSHING, REGULAR | 1201- | |
| 8 | 20Y-98-09020 | PIN, REGULAR | 1201- | |
| 9 | 20Y-98-09140 | BUSHING, MASTER | 1201- | |
| 10 | 20Y-98-09040 | PIN, MASTER | 1201- |
