| Item | Part No. | Part Name | Qty | Serial No. |

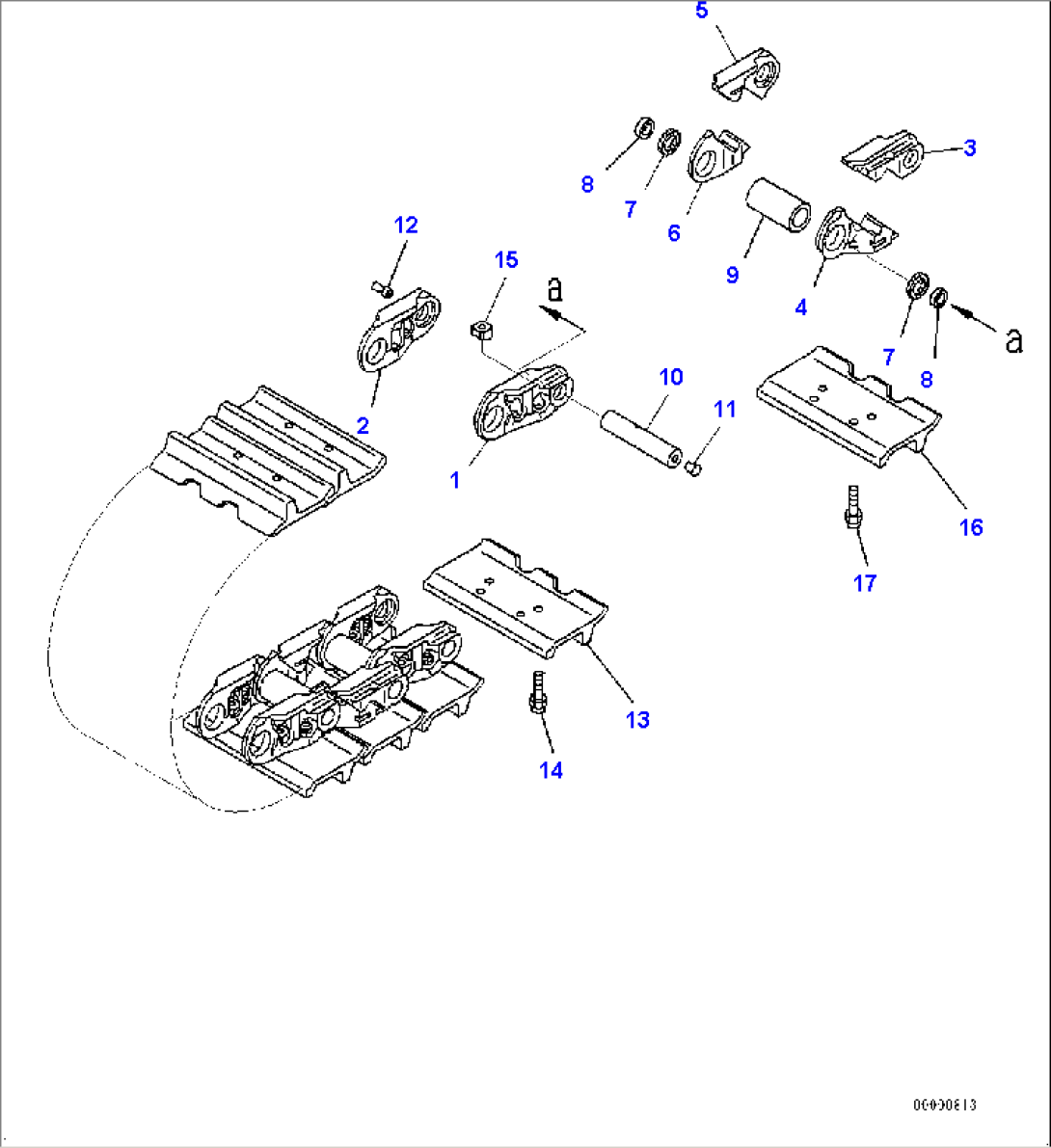

| 154-32-07150 | Track Shoe Assembly | 12256- | ||
| 1 | 154-32-71121 | Link | 12256- | |
| 2 | 154-32-71131 | Link | 12256- | |
| 2 | 154-32-08111 | Link Kit, Master | 12256- | |
| 3 | Link, Master | 12256- | ||
| 4 | Link, Master | 12256- | ||
| 4 | 154-32-08121 | Link Kit, Master | 12256- | |
| 5 | Link, Master | 12256- | ||
| 6 | Link, Master | 12256- | ||
| 7 | 154-32-71201 | Seal Assembly | 12256- | |
| 8 | 154-32-71190 | Spacer | 12256- | |
| 9 | 154-32-71140 | Bushing | 12256- | |
| 10 | 154-32-71151 | Pin | 12256- | |
| 11 | 07059-11830 | Plug, Large | 12256- | |
| 12 | 07059-20721 | Plug, Small | 12256- | |
| 13 | 154-32-71351 | Shoe | 12256- | |
| 14 | 154-32-71210 | Bolt, (Kit : K05) | 12256- | |
| 15 | 154-32-71220 | Nut, (Kit : K05) | 12256- | |
| 16 | 154-32-71351 | Shoe | 12256- | |
| 17 | 154-32-71250 | Bolt | 12256- |
