| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-32-15471 | Shoe | 81075- | |
| 1 | 14X-32-15470 | Shoe | 80208-81074 | |
| 2 | 14X-32-15481 | Shoe | 81075- | |
| 2 | 14X-32-15480 | Shoe | 80208-81074 | |
| 3 | 14X-32-15310 | Bolt, Master Track Shoe | 80208- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65px 16 s/n 80208 up (tri link shoe spec.) (single grouser shoe 760mm width) (chassis only)
- Undercarriage
- Track shoe assembly, master shoe and bolt (#80208 )
Поиск по каталогу

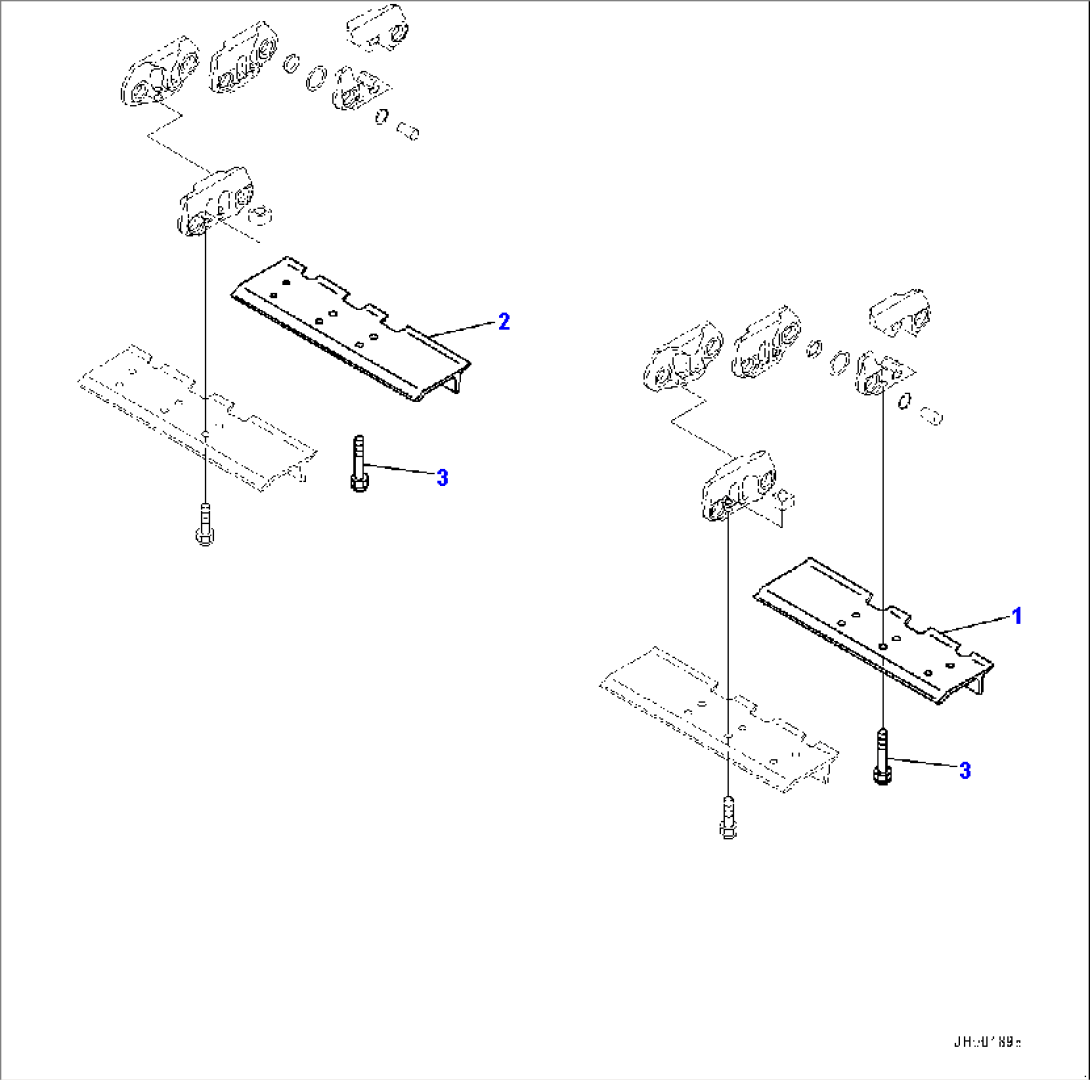

Track Shoe Assembly, Master Shoe and Bolt (#80208-)
