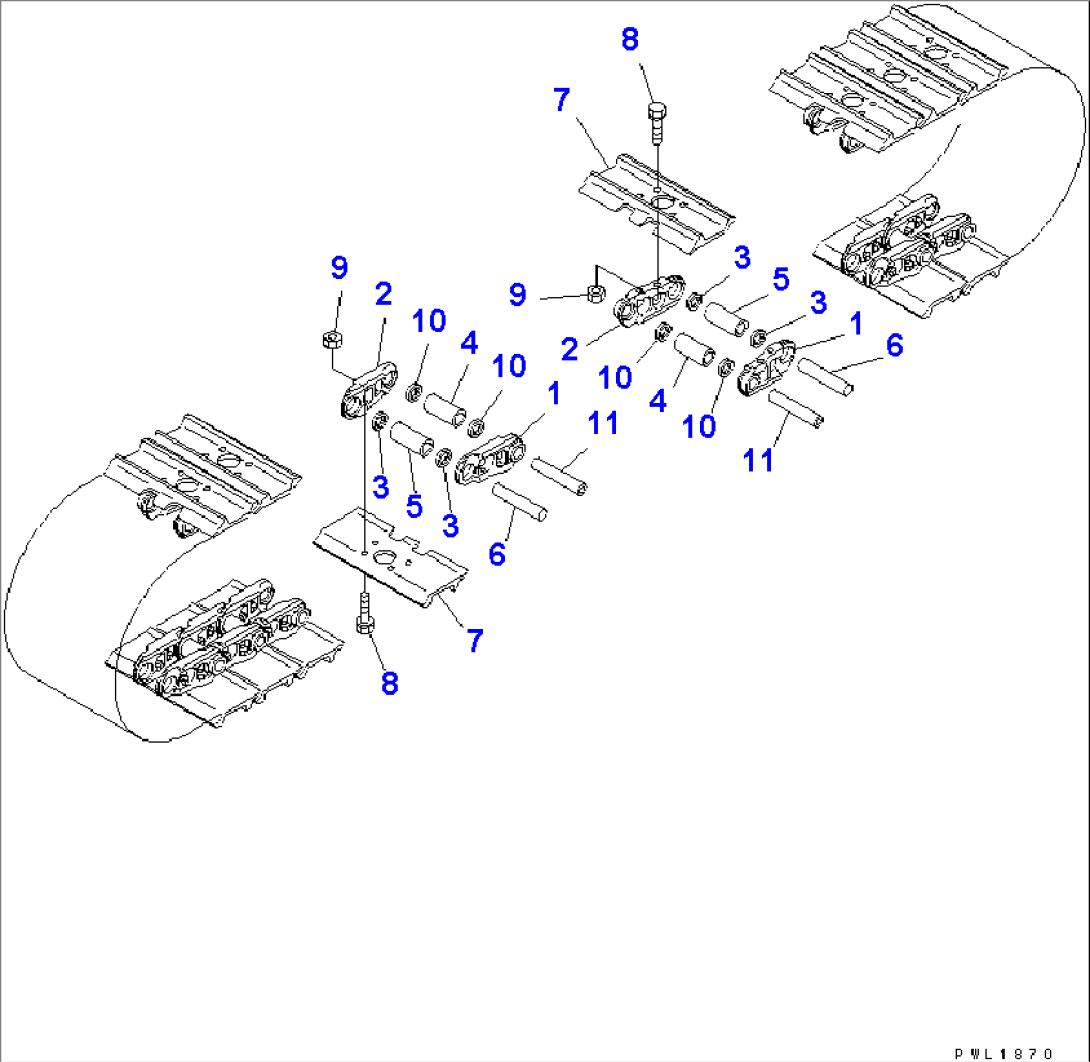

| Item | Part No. | Part Name | Qty | Serial No. |
| 208-32-K1100 | TRACK SHOE ASS'Y | K45001- | ||
| 1 | 208-32-61123 | LINK | K45001- | |
| 2 | 208-32-61133 | LINK | K45001- | |
| 3 | 154-32-11283 | SEAL | K45001- | |
| 4 | 208-32-61171 | BUSHING | K45001- | |
| 5 | 208-32-61141 | BUSHING | K45001- | |
| 6 | 208-32-61151 | PIN | K45001- | |
| 7 | 208-32-K1120 | SHOE (Y0320-K1) | K45001- | |
| 8 | 208-32-61230 | BOLT¤ SHOE (Y0320-K1) | K45001- | |
| 9 | 208-32-71220 | NUT¤ SHOE | K45001- | |
| 10 | 208-32-61260 | SEAL | K45001- | |
| 11 | 208-32-51190 | PIN | K45001- |
