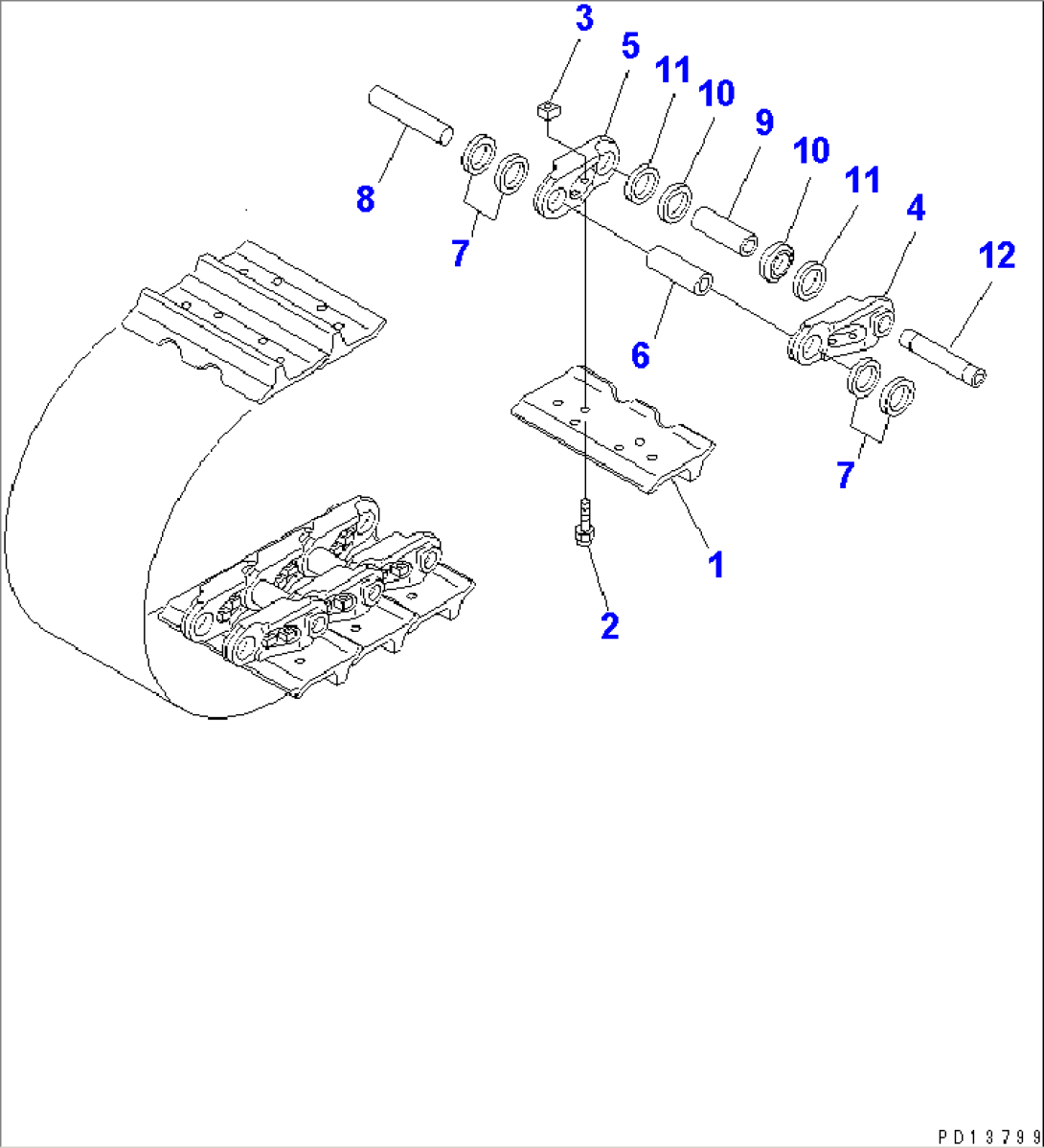

| Item | Part No. | Part Name | Qty | Serial No. |
| 560MM WIDE | ||||
| 175-32-04712 | TRACK SHOE ASS'Y | 52194- | ||
| \0\175-32-04711 | TRACK SHOE ASS'Y | 50001-52193 | ||
| 1 | 175-32-31313 | SHOE,TRACK | 50001- | |
| 2 | 176-32-11210 | BOLT¤ SHOE (KIT) | 50001- | |
| 3 | 178-32-11220 | NUT¤ SHOE (KIT) | 50001- | |
| 175-32-00205 | TRACK LINK ASS'Y | 52194- | ||
| \0\175-32-00204 | TRACK LINK ASS'Y | 50001-52193 | ||
| 4 | 15A-32-11121 | LINK | 52194- | |
| \0\15A-32-11120 | LINK,TRACK¤ L.H. | 50001-52193 | ||
| 5 | 15A-32-11131 | LINK | 52194- | |
| \0\15A-32-11130 | LINK,TRACK¤ R.H. | 50001-52193 | ||
| 6 | 175-32-11242 | BUSHING | 52194- | |
| 6 | 175-32-11241 | BUSHING,REGULAR | 50001- | |
| 7 | 176-32-11292 | WASHER | 50001- | |
| 8 | 176-32-11152 | PIN | 52194- | |
| \0\176-32-11151 | PIN,REGULAR | 50001-52193 | ||
| 9 | 176-32-11173 | BUSHING | 52194- | |
| \0\176-32-11172 | BUSHING,MASTER | 50001-52193 | ||
| 10 | 176-32-11331 | SPACER,MASTER | 50001- | |
| 11 | 176-32-11292 | WASHER | 50001- | |
| 12 | 176-32-11193 | PIN | 52194- | |
| \0\176-32-11192 | PIN,MASTER | 50001-52193 | ||
| 610MM WIDE | ||||
| 175-32-01471 | TRACK SHOE ASS'Y | 52194- | ||
| \0\175-32-01470 | TRACK SHOE ASS'Y | 50001-52193 | ||
| 1 | 175-32-31410 | SHOE | 50001- | |
| 2 | 176-32-11210 | BOLT¤ SHOE (KIT) | 50001- | |
| 3 | 178-32-11220 | NUT¤ SHOE (KIT) | 50001- | |
| 4 | 175-32-00411 | TRACK LINK ASS'Y | 52194- | |
| \0\175-32-00410 | TRACK LINK ASS'Y | 50001-52193 | ||
| 660MM WIDE | ||||
| 175-32-01481 | TRACK SHOE ASS'Y | 52194- | ||
| \0\175-32-01480 | TRACK SHOE ASS'Y | 50001-52193 | ||
| 1 | 175-32-31420 | SHOE | 50001- | |
| 2 | 176-32-11210 | BOLT¤ SHOE (KIT) | 50001- | |
| 3 | 178-32-11220 | NUT¤ SHOE (KIT) | 50001- | |
| 4 | 175-32-00411 | TRACK LINK ASS'Y | 52194- | |
| 175-32-00410 | TRACK LINK ASS'Y | 50001-52193 | ||
| SERVICE KIT | ||||
| 178-32-05000 | SHOE BOLT AND NUT K. | 50001- | ||
| 2 | 176-32-11210 | BOLT¤ SHOE | 50001- | |
| 3 | 178-32-11220 | NUT¤ SHOE | 50001- | |
| OVERSIZE PARTS | ||||
| OVERSIZE 0.10MM | ||||
| 6 | 176-98-09072 | BUSHING,REGULAR | 50001- | |
| 8 | 176-98-09011 | PIN | 50001- | |
| 9 | 176-98-09111 | BUSHING | 50001- | |
| 12 | 176-98-09042 | PIN | 50001- | |
| OVERSIZE 0.18MM | ||||
| 6 | 176-98-09072 | BUSHING,REGULAR | 50001- | |
| 8 | 176-98-09031 | PIN,REGULAR | 50001- | |
| 9 | 176-98-09131 | BUSHING,MASTER | 50001- | |
| 12 | 176-98-09062 | PIN,MASTER | 50001- |
