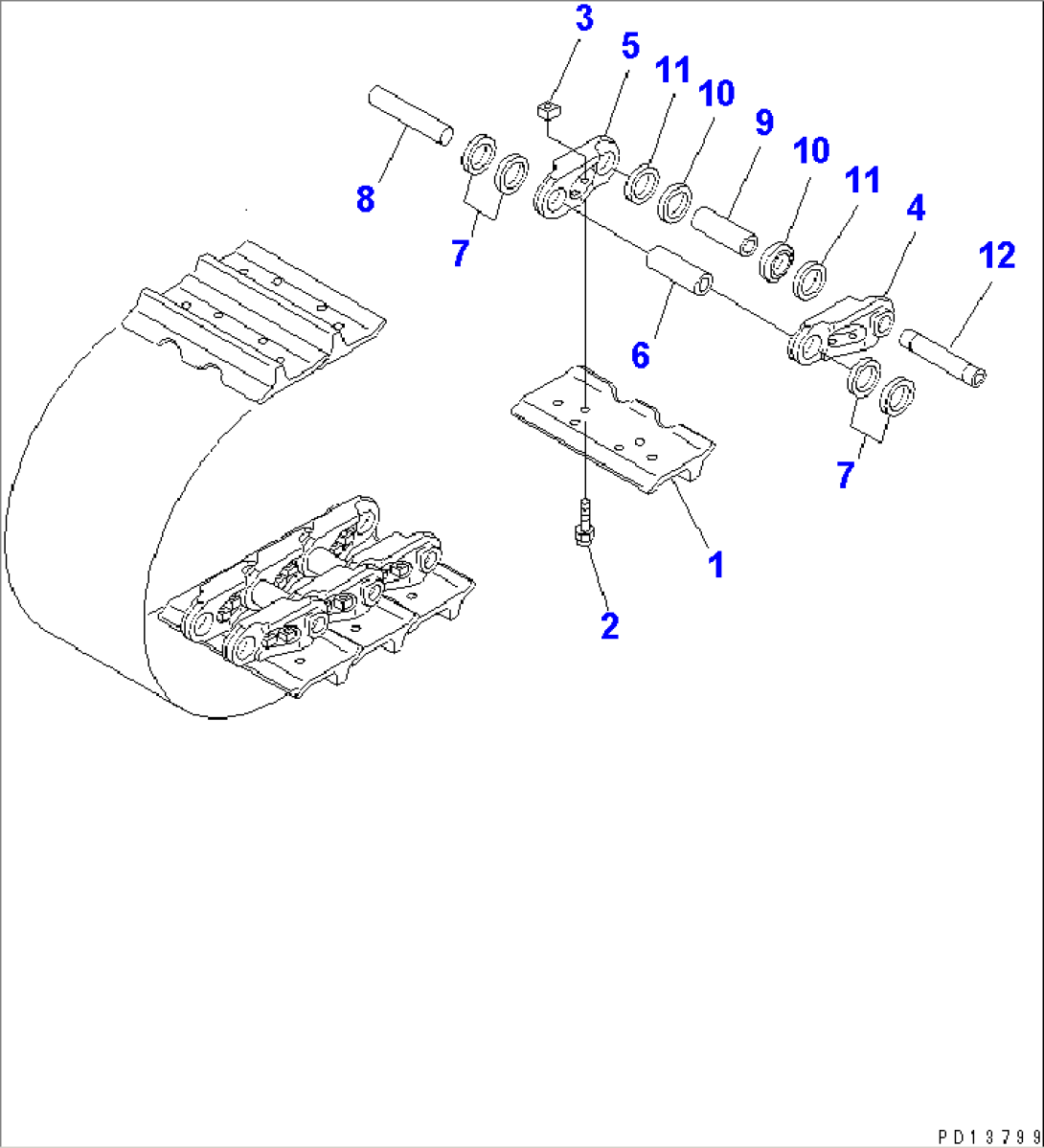

| Item | Part No. | Part Name | Qty | Serial No. |
| 560MM WIDE | ||||
| 15A-32-01240 | TRACK SHOE ASS'Y | 10001- | ||
| 1 | 175-32-31313 | SHOE,TRACK | 10001- | |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | 10001- | |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | 10001- | |
| 15A-32-00030 | TRACK LINK ASS'Y | 10001- | ||
| 4 | 15A-32-11120 | LINK,TRACK, L.H. | 10001- | |
| 5 | 15A-32-11130 | LINK,TRACK, R.H. | 10001- | |
| 6 | 175-32-11143 | BUSHING,REGULAR | 10001- | |
| 7 | 176-32-11292 | WASHER | 10001- | |
| 8 | 176-32-11151 | PIN,REGULAR | 10001- | |
| 9 | 176-32-11172 | BUSHING,MASTER | 10001- | |
| 10 | 176-32-11332 | SPACER,MASTER | 10001- | |
| 11 | 176-32-11292 | WASHER | 10001- | |
| 12 | 176-32-11192 | PIN,MASTER | 10001- | |
| 610MM WIDE | ||||
| 1 | 15A-32-01250 | TRACK SHOE ASS'Y | 10001- | |
| 1 | 175-32-31410 | SHOE,TRACK | 10001- | |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | 10001- | |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | 10001- | |
| 4 | 15A-32-00030 | TRACK LINK ASS'Y | 10001- | |
| 660MM WIDE | ||||
| 1 | 15A-32-01260 | TRACK SHOE ASS'Y | 10001- | |
| 1 | 175-32-31420 | SHOE,TRACK | 10001- | |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | 10001- | |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | 10001- | |
| 4 | 15A-32-00030 | TRACK LINK ASS'Y | 10001- | |
| SERVICE KIT | ||||
| 1 | 178-32-05000 | SHOE BOLT AND NUT K. | 10001- | |
| 1 | 176-32-11210 | BOLT, SHOE | 10001- | |
| 2 | 178-32-11220 | NUT, SHOE | 10001- | |
| OVERSIZE PARTS | ||||
| OVERSIZE 0.10MM | ||||
| 6 | 176-98-09071 | BUSHING,REGULAR | 10001- | |
| 8 | 176-98-09011 | PIN,REGULAR | 10001- | |
| 9 | 176-98-09111 | BUSHING,MASTER | 10001- | |
| 12 | 176-98-09042 | PIN,MASTER | 10001- | |
| OVERSIZE 0.18MM | ||||
| 6 | 176-98-09091 | BUSHING,REGULAR | 10001- | |
| 8 | 176-98-09031 | PIN,REGULAR | 10001- | |
| 9 | 176-98-09131 | BUSHING,MASTER | 10001- | |
| 12 | 176-98-09062 | PIN,MASTER | 10001- |
