| Item | Part No. | Part Name | Qty | Serial No. |

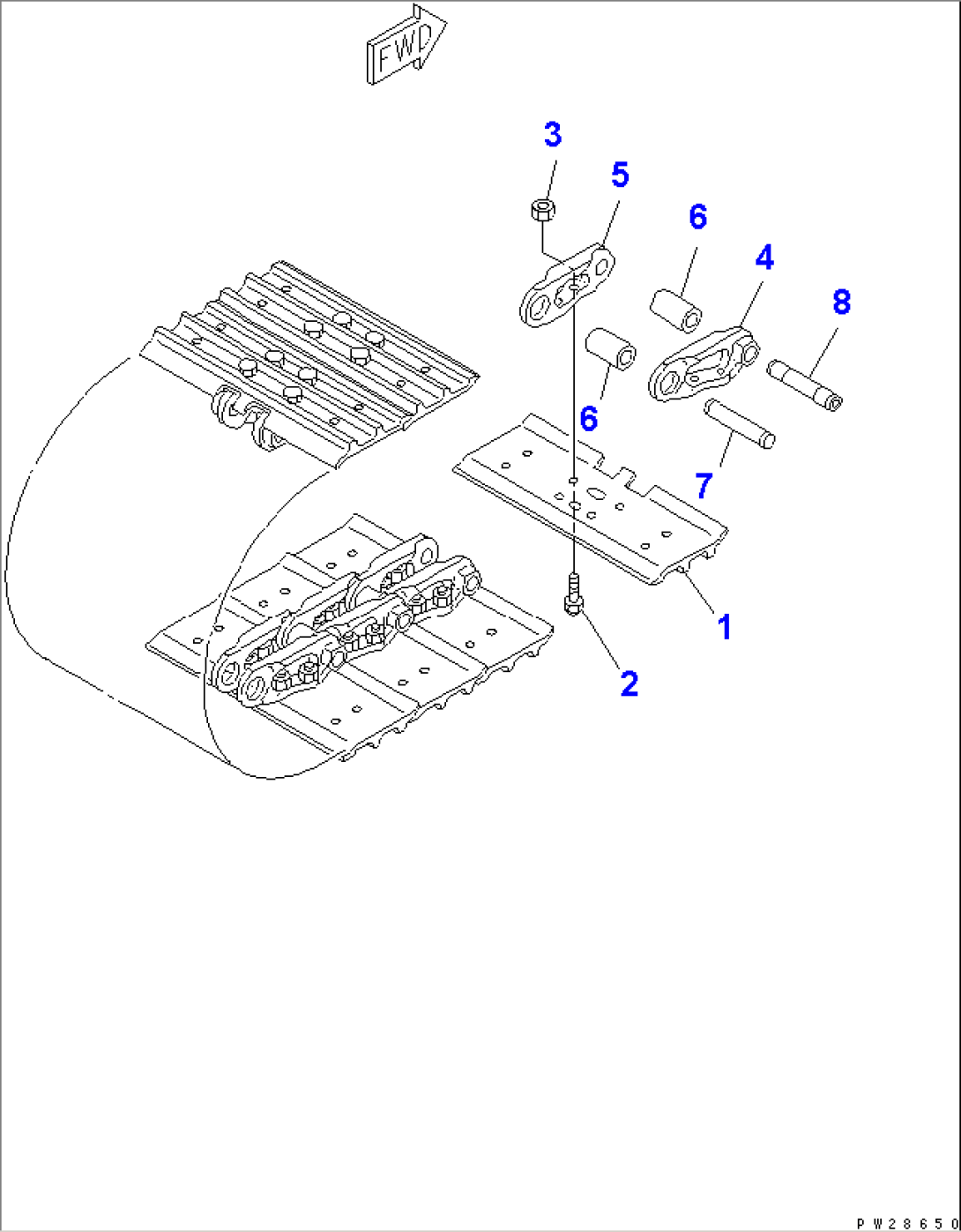

| 8230-32-1000 | TRACK SHOE ASSY | 1301- | ||
| 1 | 22M-32-11110 | SHOE | 1301- | |
| 2 | 20U-32-25110 | BOLT¤ SHOE | 1301- | |
| 3 | 201-32-11220 | NUT¤ SHOE | 1301- | |
| 8230-32-1100 | TRACK LINK ASSY | 1301- | ||
| 4 | 20T-32-71121 | LINK | 1301- | |
| 5 | 20T-32-71131 | LINK | 1301- | |
| 6 | 20T-32-71171 | BUSHING | 1301- | |
| 7 | 20T-32-71161 | PIN¤ REGULAR | 1301- | |
| 8 | 20T-32-71181 | PIN¤ MASTER | 1301- | |
| SERVICE KIT | ||||
| 201-32-05002 | SHOE BOLT AND NUT K. | 1301- | ||
| 1 | 20U-32-25110 | BOLT¤ SHOE | 1301- | |
| 2 | 201-32-11220 | NUT¤ SHOE | 1301- |
