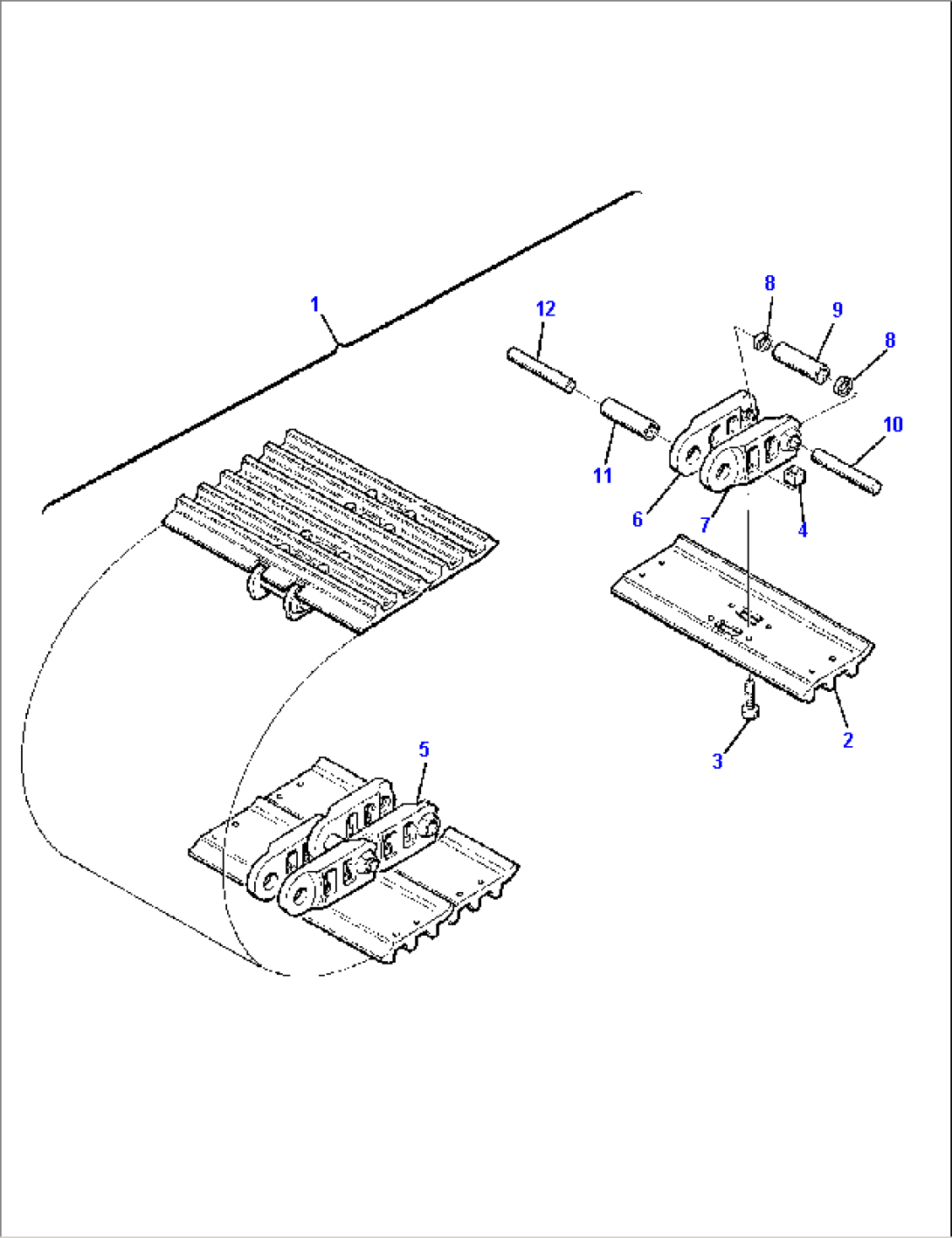

Item | Part No. | Part Name | Qty | Serial No. |
1 | 21D-32-11202 | TRACK SHOE, ASSY. | 21D5220114- | |
2 | 21D-32-11231 | SHOE 600 mm | 21D5220114- | |
3 | 21D-32-11190 | SCREW | 21D5220114- | |
4 | 21D-32-11210 | NUT | 21D5220114- | |
5 | 21D-32-11101 | TRACK SHOE, ASSY. | 21D5220114- | |
6 | 21D-32-11111 | LINK, TRACK, R.H. | 21D5220114- | |
7 | 21D-32-11121 | LINK, TRACK, L.H. | 21D5220114- | |
8 | 21D-32-11170 | SPACER | 21D5220114- | |
9 | 21D-32-11160 | BUSHING | 21D5220114- | |
10 | 21D-32-11150 | PIN | 21D5220114- | |
11 | 21D-32-11130 | BUSHING | 21D5220114- | |
12 | 21D-32-11140 | PIN | 21D5220114- |
