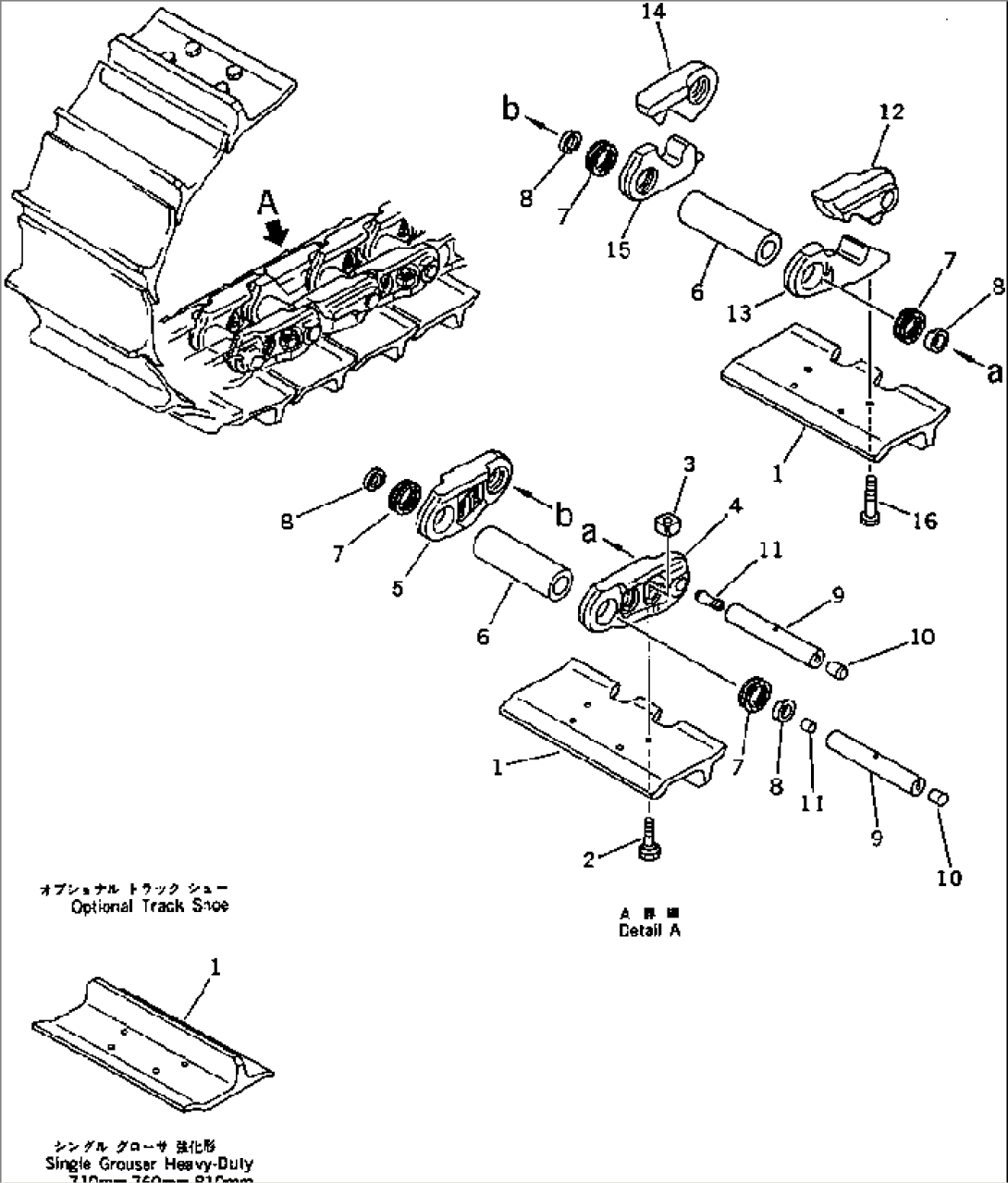

TRACK SHOE (LUBRICATE TYPE) (MASTER LINK 4 PLACE TYPE)

TRACK SHOE (LUBRICATE TYPE) (MASTER LINK 4 PLACE TYPE)
ItemPart No.Part NameQtySerial No.
610MM WIDE
195-32-04204TRACK SHOE ASS'Y17373-
\0\195-32-04203TRACK SHOE ASS'Y17331-17372
\0\195-32-04202TRACK SHOE ASS'Y17097-17330
\0\195-32-04201TRACK SHOE ASS'Y17001-17096
1195-32-61110SHOE,TRACK17001-
2195-32-61210BOLT¤ SHOE (KIT)17001-
3195-32-61220NUT¤ SHOE (KIT)17001-
195-32-00433TRACK LINK ASS'Y17373-
\0\195-32-00432TRACK LINK ASS'Y17331-17372
\0\195-32-00431TRACK LINK ASS'Y17097-17330
\0\195-32-00430TRACK LINK ASS'Y17001-17096
4195-32-61122LINK,TRACK¤ L.H.17331-
\0\195-32-61121LINK,TRACK¤ L.H.17001-17330
5195-32-61132LINK,TRACK¤ R.H.17331-
\0\195-32-61131LINK,TRACK¤ R.H.17001-17330
6195-32-61341BUSHING17097-
\0\195-32-61340BUSHING17001-17096
7195-32-61201SEAL ASS'Y17373-
\0\195-32-61200SEAL ASS'Y17001-17372
8195-32-61181SPACER17097-
\0\195-32-61180SPACER17001-17096
9195-32-61151PIN17001-
10195-32-41290PLUG,LARGE17001-
1107059-20721PLUG,SMALL17001-
12195-32-61321LINK,MASTER¤ L.H. PIN SIDE17001-
13195-32-61331LINK,MASTER¤ L.H. BUSHING SIDE17001-
14195-32-61421LINK,MASTER¤ R.H. PIN SIDE17001-
15195-32-61431LINK,MASTER¤ R.H. BUSHING SIDE17001-
16195-32-61350BOLT,MASTER LINK17001-
710MM WIDE
195-32-03113TRACK SHOE ASS'Y17373-
\0\195-32-03112TRACK SHOE ASS'Y17331-17372
\0\195-32-03111TRACK SHOE ASS'Y17097-17330
\0\195-32-03110TRACK SHOE ASS'Y17001-17096
1195-32-61370SHOE,TRACK17001-
2195-32-61210BOLT¤ SHOE (KIT)17001-
3195-32-61220NUT¤ SHOE (KIT)17001-
195-32-00433TRACK LINK ASS'Y17373-
\0\195-32-00432TRACK LINK ASS'Y17331-17372
\0\195-32-00431TRACK LINK ASS'Y17097-17330
\0\195-32-00430TRACK LINK ASS'Y17001-17096
810MM WIDE
195-32-04234TRACK SHOE ASS'Y17373-
\0\195-32-04233TRACK SHOE ASS'Y17331-17372
\0\195-32-04232TRACK SHOE ASS'Y17097-17330
\0\195-32-04231TRACK SHOE ASS'Y17001-17096
1195-32-61390SHOE,TRACK17001-
2195-32-61210BOLT¤ SHOE (KIT)17001-
3195-32-61220NUT¤ SHOE (KIT)17001-
195-32-00433TRACK LINK ASS'Y17373-
\0\195-32-00432TRACK LINK ASS'Y17331-17372
\0\195-32-00431TRACK LINK ASS'Y17097-17330
\0\195-32-00430TRACK LINK ASS'Y17001-17096
SERVICE KIT
195-32-05400SHOE BOLT AND NUT K.17001-
2195-32-61210BOLT¤ SHOE17001-
3195-32-61220NUT¤ SHOE17001-
OVERSIZE PARTS
OVERSIZE 0.10MM
6195-98-09730BUSHING17001-
9195-98-09710PIN¤ REGULAR17001-
OVERSIZE 0.18MM
6195-98-09740BUSHING17001-
9195-98-09720PIN¤ REGULAR17001-
FOR LIMESTONE
(SERVICE ONLY)
195-32-04321TRACK SHOE ASS'Y17401-
\0\195-32-04320TRACK SHOE ASS'Y17001-17400
1195-32-61110SHOE17001-
2195-32-61210BOLT¤ SHOE17001-
3195-32-61220NUT¤ SHOE17001-
195-32-00442TRACK LINK ASS'Y17401-
\0\195-32-00441TRACK LINK ASS'Y17001-17400
4195-32-61122LINK17401-
\0\195-32-61121LINK,TRACK¤ L.H.17001-17400
5195-32-61132LINK17401-
\0\195-32-61131LINK,TRACK¤ R.H.17001-17400
6195-32-61340BUSHING17001-
7195-32-61201SEAL ASS'Y17401-
\0\195-32-61200SEAL ASS'Y17001-17400
8195-32-61181SPACER17401-
\0\195-32-61180SPACER17001-17400
9195-32-61450PIN17001-
1007059-11830PLUG,LARGE17001-
1107059-20721PLUG,SMALL17001-
12195-32-61321LINK,MASTER¤ L.H. PIN SIDE17001-
13195-32-61331LINK,MASTER¤ L.H. BUSHING SIDE17001-
14195-32-61421LINK,MASTER¤ R.H. PIN SIDE17001-
15195-32-61431LINK,MASTER¤ R.H. BUSHING SIDE17001-
16195-32-61350BOLT,MASTER LINK17001-
610MM WIDE{(ANTI CHIPPING)}
195-32-04360TRACK SHOE ASS'Y17373-
1195-32-61110SHOE17373-
2195-32-61210BOLT¤ SHOE17373-
3195-32-61220NUT¤ SHOE17373-
195-32-00470TRACK LINK ASS'Y17373-
4195-32-62120LINK,TRACK¤ L.H.17373-
5195-32-62130LINK,TRACK¤ R.H.17373-
12195-32-62320LINK,MASTER¤ L.H. PIN SIDE17373-
13195-32-62330LINK,MASTER¤ L.H. BUSHING SIDE17373-
14195-32-62420LINK,MASTER¤ R.H. PIN SIDE17373-
15195-32-62430LINK,MASTER¤ R.H. BUSHING SIDE17373-
