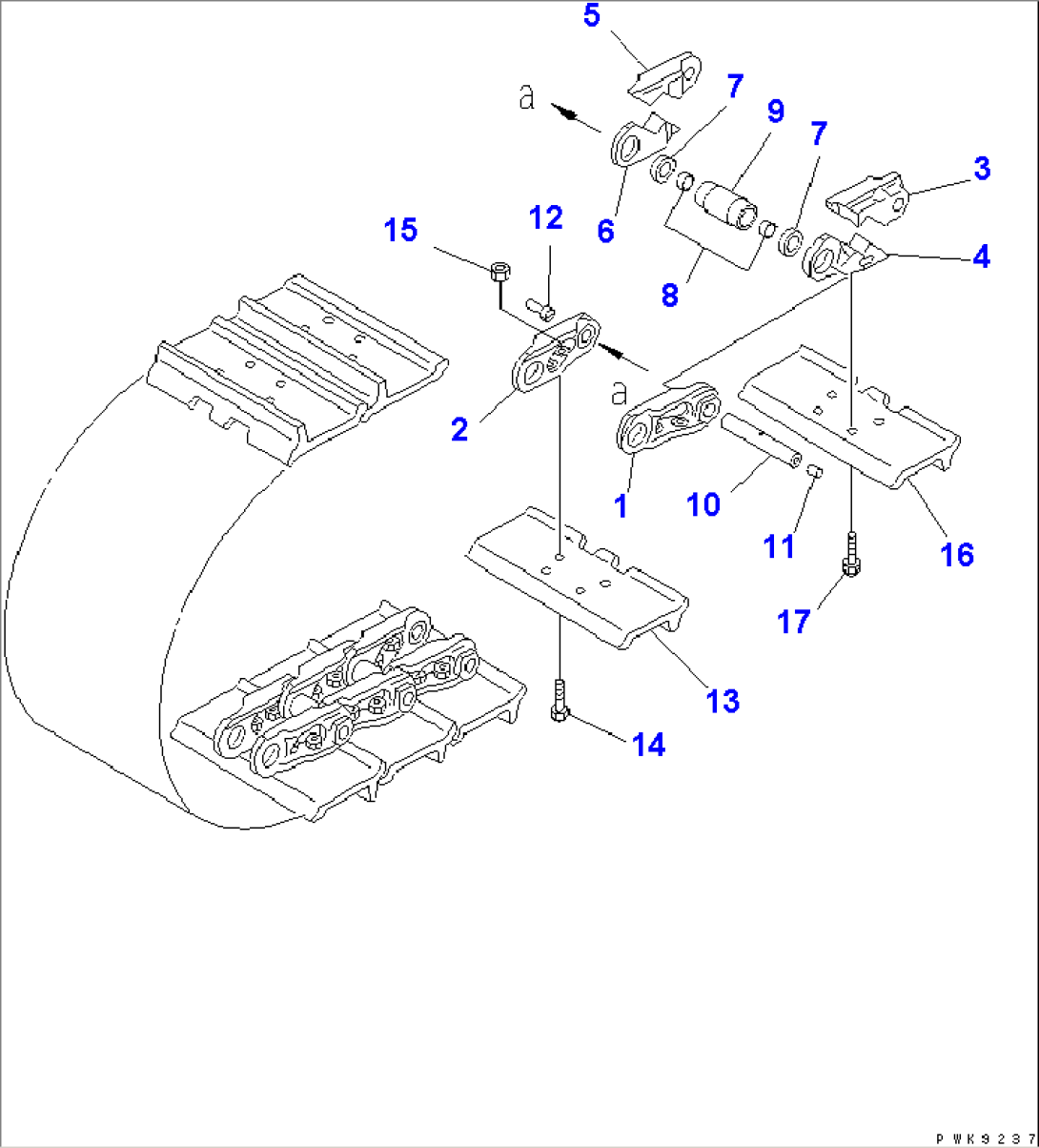

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-32-01101 | TRACK SHOE ASS'Y | 1233- | ||
| \0\134-32-01100 | TRACK SHOE ASS'Y | 1001-1232 | ||
| 1 | 134-32-61120 | LINK,L.H. | 1001- | |
| 2 | 134-32-61130 | LINK,R.H. | 1001- | |
| 3 | 134-32-61320 | LINK,L.H., PIN SIDE | 1001- | |
| 4 | 134-32-61330 | LINK,L.H., BUSHING SIDE | 1001- | |
| 5 | 134-32-61420 | LINK,R.H., PIN SIDE | 1001- | |
| 6 | 134-32-61430 | LINK,R.H., BUSHING SIDE | 1001- | |
| 7 | 134-32-63200 | SEAL | 1233- | |
| 7 | \0\134-32-61160 | SEAL | 1001-1232 | |
| 8 | 134-32-61190 | SPACER | 1001- | |
| 9 | 134-32-61140 | BUSHING | 1001- | |
| 10 | 134-32-61150 | PIN | 1001- | |
| 11 | 07059-11830 | PLUG,LARGE | 1001- | |
| 12 | 07059-20721 | PLUG,SMALL | 1001- | |
| 13 | 134-32-61110 | SHOE | 1001- | |
| 14 | 154-32-21323 | BOLT, SHOE (Y0320-K1) | 1001- | |
| 15 | 134-32-61221 | NUT (Y0320-K1) | 1001- | |
| 16 | 134-32-61110 | SHOE | 1001- | |
| 17 | 134-32-61310 | BOLT | 1001- |
