| Item | Part No. | Part Name | Qty | Serial No. |

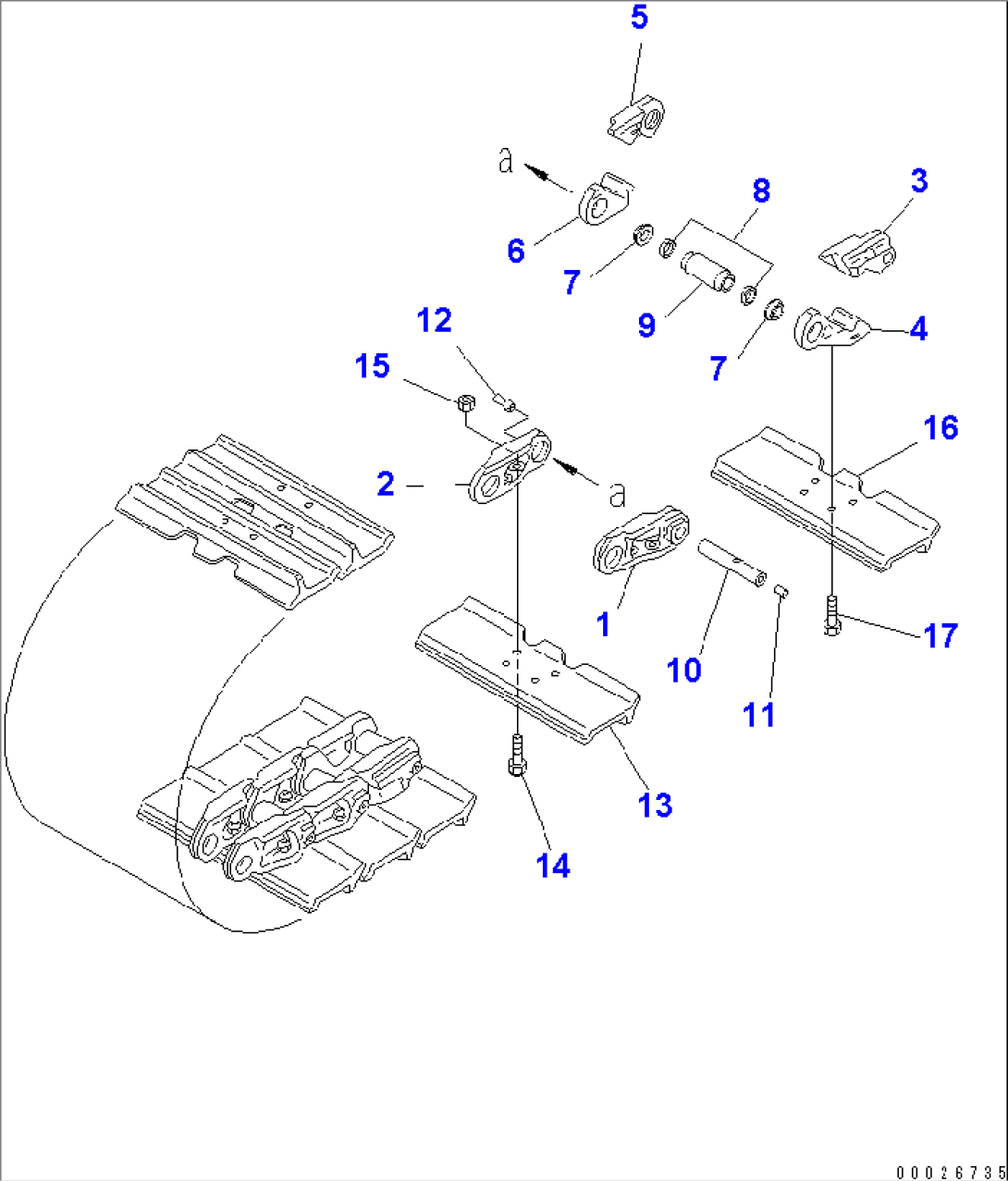

| 134-32-01152 | TRACK SHOE ASS'Y | 1003- | ||
| 1 | 14X-32-11120 | LINK,L.H. | 1003- | |
| 2 | 14X-32-11130 | LINK,R.H. | 1003- | |
| 3 | 14X-32-11320 | LINK, MASTER,L.H. | 1003- | |
| 4 | 14X-32-11330 | LINK, MASTER,L.H. | 1003- | |
| 5 | 14X-32-11420 | LINK, MASTER,R.H. | 1003- | |
| 6 | 14X-32-11430 | LINK, MASTER,R.H. | 1003- | |
| 7 | 14X-32-12200 | SEAL ASS'Y | 1003- | |
| 8 | 144-32-21191 | SPACER | 1003- | |
| 9 | 14X-32-11140 | BUSHING | 1003- | |
| 10 | 144-32-21151 | PIN | 1003- | |
| 11 | 07059-11830 | PLUG | 1003- | |
| 12 | 07059-20721 | PLUG | 1003- | |
| 13 | 14X-32-11370 | SHOE | 1003- | |
| 14 | 14X-32-11210 | BOLT (Y0320-K1) | 1003- | |
| 15 | 14X-32-11220 | NUT (Y0320-K1) | 1003- | |
| 16 | 14X-32-11370 | SHOE | 1003- | |
| 17 | 14X-32-11350 | BOLT, MASTER | 1003- |
