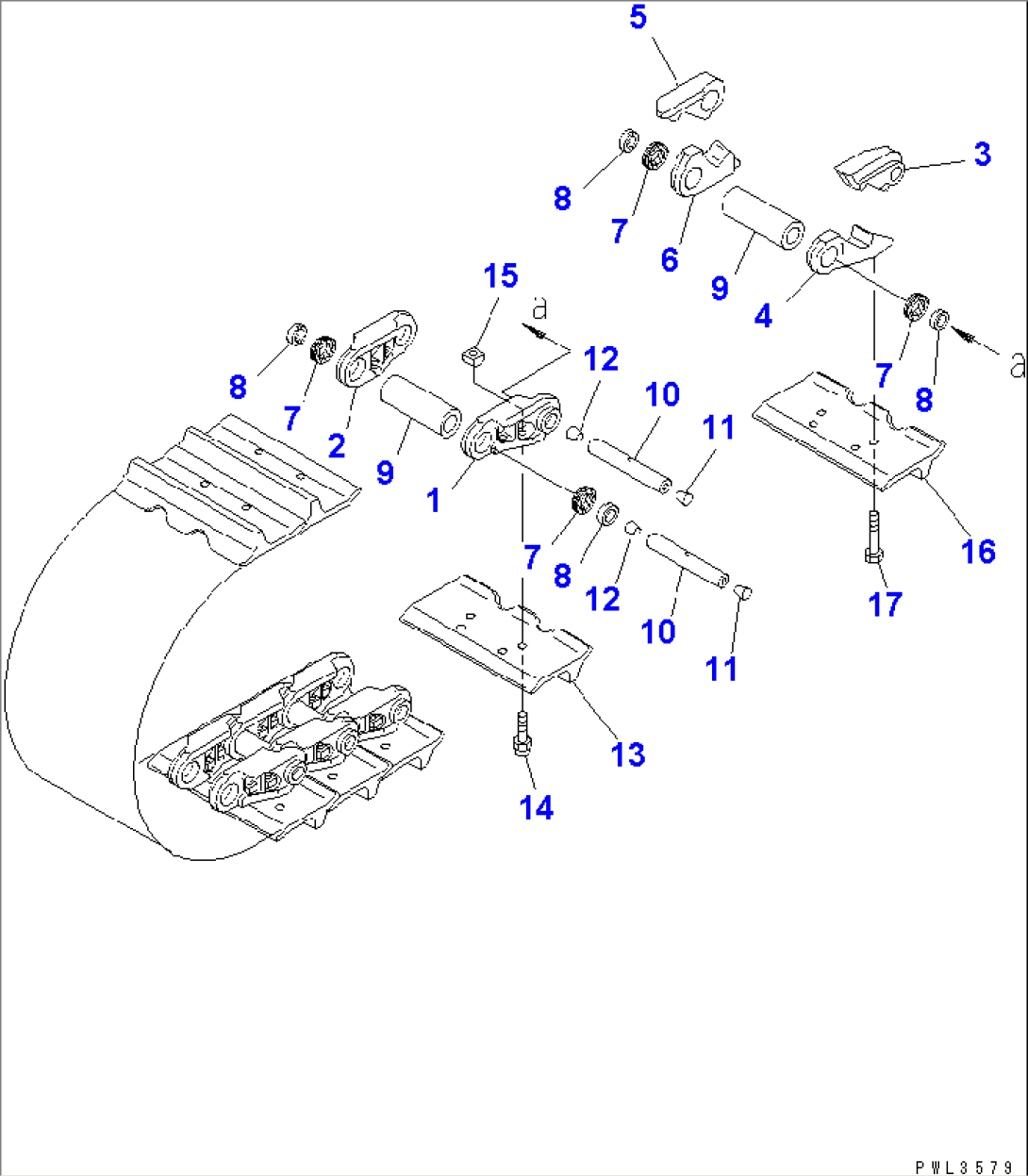

![TRACK SHOE (LUBRICATE TYPE) (SINGLE GROUSER) (660MM WIDE) (MASTER LINK 2 PLACE TYPE)(#76330-)](https://vladremsnab.ru/cache/gen/1090x-1_cc/storage/app/media/auto-parts/31/c3/31c336efcb9fdf0ee7c5de22d7ffb51c98f505e3_271ae4603a.png?s=qf7tc0S033N-SgCfbcNQHg)
Item | Part No. | Part Name | Qty | Serial No. |
175-32-02523 | TRACK SHOE ASS'Y | 76330- | ||
\0\175-32-02522 | TRACK SHOE ASS'Y | 76001-76329 | ||
\0\175-32-02521 | TRACK SHOE ASS'Y | 75246-75999 | ||
\0\175-32-02520 | TRACK SHOE ASS'Y | 70137-75245 | ||
1 | 15A-32-77120 | LINK | 75246- | |
1 | 15A-32-11121 | LINK,TRACK, L.H. | 70137-75245 | |
2 | 15A-32-77130 | LINK | 75246- | |
2 | 15A-32-11131 | LINK,TRACK, R.H. | 70137-75245 | |
175-32-08010 | MASTER LINK ASS'Y | 70137- | ||
3 | \6\ | LINK | 70137- | |
4 | \6\ | LINK | 70137- | |
175-32-08020 | MASTER LINK ASS'Y | 70137- | ||
5 | \6\ | LINK | 70137- | |
6 | \6\ | LINK | 70137- | |
7 | 17A-32-21201 | SEAL ASS'Y | 76330- | |
7 | \0\175-32-41601 | SEAL ASS'Y | 70001-76329 | |
8 | 175-32-81181 | SPACER | 70001- | |
9 | 15A-32-11142 | BUSHING | 76001- | |
9 | \0\15A-32-11141 | BUSHING | 70001-75999 | |
10 | 175-32-81450 | PIN | 70001- | |
11 | 07059-11830 | PLUG | 70001- | |
12 | 07059-20721 | PLUG | 70001- | |
13 | 170-32-11332 | SHOE | 70001- | |
14 | 176-32-11210 | BOLT (Y0320-K01 | 70137- | |
15 | 178-32-11220 | NUT (Y0320-K01 | 70137- | |
16 | 170-32-11332 | SHOE | 70137- | |
17 | 175-32-41261 | BOLT | 70137- |
