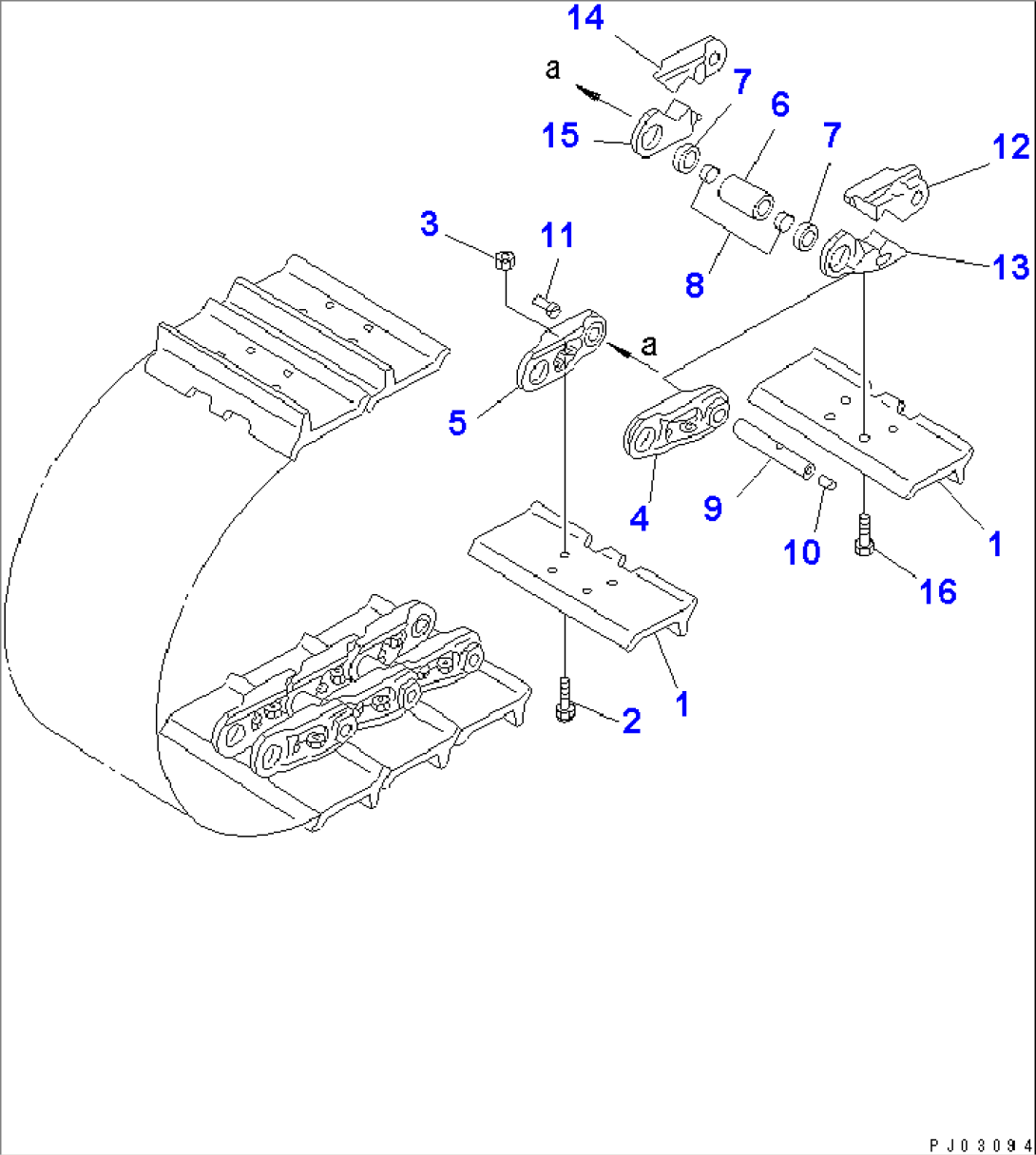

| Item | Part No. | Part Name | Qty | Serial No. |
| | 560MM WIDE | | |
| 15A-32-01040 | TRACK SHOE ASS'Y | | 10001- |
| 1 | 175-32-31313 | SHOE,TRACK | | 10001- |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | | 10001- |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | | 10001- |
| 15A-32-00010 | TRACK LINK ASS'Y | | 10001- |
| 4 | 15A-32-11120 | LINK,TRACK, L.H. | | 10001- |
| 5 | 15A-32-11130 | LINK,TRACK, R.H. | | 10001- |
| 6 | 15A-32-11140 | BUSHING | | 10001- |
| 7 | 175-32-81292 | SEAL ASS'Y | | 10001- |
| 8 | 175-32-81181 | SPACER | | 10001- |
| 9 | 175-32-81152 | PIN | | 10001- |
| 10 | 07059-11830 | PLUG,LARGE | | 10001- |
| 11 | 07059-20721 | PLUG,SMALL | | 10001- |
| 12 | 15A-32-11320 | LINK,MASTER, L.H. PIN SIDE | | 10001- |
| 13 | 15A-32-11330 | LINK,MASTER, L.H. BUSHING SIDE | | 10001- |
| 14 | 15A-32-11420 | LINK,MASTER, R.H. PIN SIDE | | 10001- |
| 15 | 15A-32-11430 | LINK,MASTER, R.H. BUSHING SIDE | | 10001- |
| 16 | 175-32-41260 | BOLT,MASTER, LINK | | 10001- |
| | 610MM WIDE | | |
| 1 | 15A-32-01050 | TRACK SHOE ASS'Y | | 10001- |
| 1 | 175-32-31410 | SHOE,TRACK | | 10001- |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | | 10001- |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | | 10001- |
| 4 | 15A-32-00010 | TRACK LINK ASS'Y | | 10001- |
| | 660MM WIDE | | |
| 1 | 15A-32-01060 | TRACK SHOE ASS'Y | | 10001- |
| 1 | 175-32-31420 | SHOE,TRACK | | 10001- |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | | 10001- |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | | 10001- |
| 4 | 15A-32-00010 | TRACK LINK ASS'Y | | 10001- |
| | SERVICE KIT | | |
| 1 | 178-32-05000 | SHOE BOLT AND NUT K. | | 10001- |
| 1 | 176-32-11210 | BOLT, SHOE | | 10001- |
| 2 | 178-32-11220 | NUT, SHOE | | 10001- |
| | OVERSIZE PARTS | | |
| | OVERSIZE 0.10MM | | |
| 6 | 175-98-09230 | BUSHING | | 10001- |
| 9 | 175-98-09031 | PIN | | 10001- |
| | OVERSIZE 0.18MM | | |
| 6 | 175-98-09240 | BUSHING | | 10001- |
| 9 | 175-98-09041 | PIN | | 10001- |
