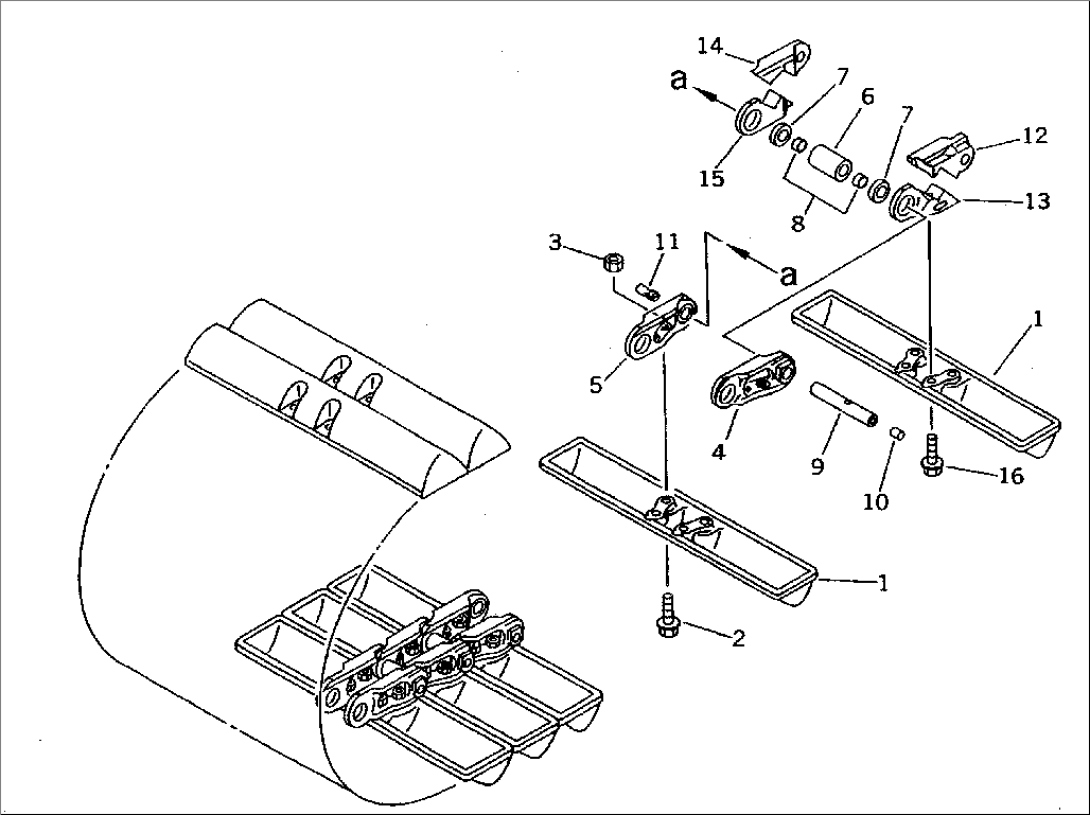

| Item | Part No. | Part Name | Qty | Serial No. |
| 910MM WIDE | ||||
| 154-820-0402 | TRACK SHOE ASS'Y | 3525- | ||
| \0\154-820-0401 | TRACK SHOE ASS'Y | 3272-3524 | ||
| \0\154-820-0400 | TRACK SHOE ASS'Y | 3001-3271 | ||
| 1 | 154-820-1120 | SHOE,TRACK | 3001- | |
| 2 | 154-820-1212 | BOLT (KIT) | 3525- | |
| 2 | 154-820-1211 | BOLT (KIT) | 3001-3524 | |
| 3 | 154-32-31220 | NUT, SHOE (KIT) | 3001- | |
| 154-32-00372 | TRACK LINK ASS'Y | 3525- | ||
| \0\154-32-00371 | TRACK LINK ASS'Y | 3272-3524 | ||
| \0\154-32-00370 | TRACK LINK ASS'Y | 3001-3271 | ||
| 4 | 154-32-31120 | LINK,TRACK, L.H. | 3001- | |
| 5 | 154-32-31130 | LINK,TRACK, R.H. | 3001- | |
| 6 | 154-32-41143 | BUSHING | 3001- | |
| 7 | 154-32-42300 | SEAL ASS'Y | 3272- | |
| 7 | \0\154-32-41163 | SEAL ASS'Y | 3001-3271 | |
| 8 | 154-32-41251 | SPACER | 3001- | |
| 9 | 154-32-41151 | PIN | 3001- | |
| 10 | 07059-11830 | PLUG,LARGE | 3001- | |
| 11 | 07059-20721 | PLUG,SMALL | 3001- | |
| 12 | 154-32-21121 | LINK,L.H., PIN SIDE | 3001- | |
| 13 | 154-32-21131 | LINK,L.H., BUSHING SIDE | 3001- | |
| 14 | 154-32-21221 | LINK,R.H., PIN SIDE | 3001- | |
| 15 | 154-32-21231 | LINK,R.H., BUSHING SIDE | 3001- | |
| 16 | 154-32-21272 | BOLT,MASTER | 3525- | |
| 16 | 154-32-21271 | BOLT,MASTER | 3001-3524 | |
| SERVICE KIT | ||||
| 1 | 154-820-0521 | SHOE BOLT AND NUT K. | 3525- | |
| 1 | \0\154-820-0520 | SHOE BOLT AND NUT K. | 3001-3524 | |
| 2 | 154-820-1212 | BOLT | 3525- | |
| 2 | 154-820-1211 | BOLT | 3001-3524 | |
| 3 | 154-32-31220 | NUT, SHOE | 3001- | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 154-98-09530 | BUSHING | 3001- | |
| 9 | 154-98-09361 | PIN | 3001- | |
| 0.18MM OVERSIZE | ||||
| 6 | 154-98-09540 | BUSHING | 3001- | |
| 9 | 154-98-09371 | PIN | 3001- |
