| Item | Part No. | Part Name | Qty | Serial No. |
| 510MM WIDE | ||||

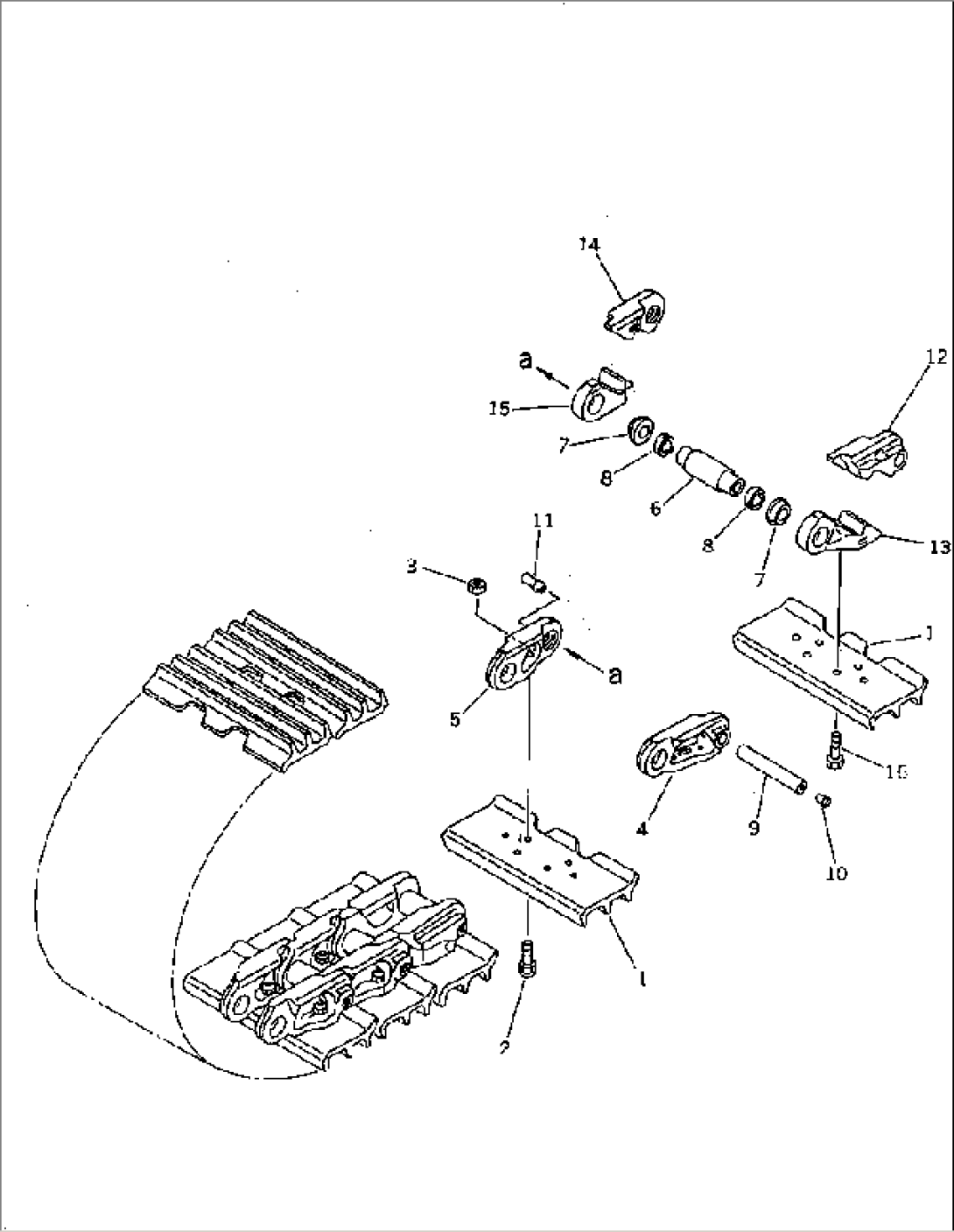

| 144-32-04606 | TRACK SHOE ASS'Y | 50076- | ||
| 1 | 141-32-11351 | SHOE | 50076- | |
| 2 | 207-32-11312 | BOLT (KIT) | 50076- | |
| 3 | 154-32-21331 | NUT (KIT) | 50076- | |
| 144-32-00053 | TRACK LINK ASS'Y | 50001- | ||
| 4 | 144-32-11123 | LINK | 50001- | |
| 5 | 144-32-11133 | LINK | 50001- | |
| 6 | 144-32-21142 | BUSHING | 50001- | |
| 7 | 144-32-21161 | SEAL ASS'Y | 50001- | |
| 8 | 144-32-21191 | SPACER | 50001- | |
| 9 | 144-32-21151 | PIN | 50001- | |
| 10 | 07059-11830 | PLUG | 50001- | |
| 11 | 07059-20721 | PLUG | 50001- | |
| 12 | 144-32-21222 | LINK | 50001- | |
| 13 | 144-32-21232 | LINK | 50001- | |
| 14 | 144-32-21322 | LINK | 50001- | |
| 15 | 144-32-21332 | LINK | 50001- | |
| 16 | 144-32-21342 | BOLT | 50001- | |
| SERVICE KIT | ||||
| 207-32-05002 | SHOE BOLT AND NUT K. | 50076- | ||
| 1 | 207-32-11312 | BOLT | 50076- | |
| 2 | 154-32-21331 | NUT | 50076- | |
| OVERSIZE PARTS | ||||
| SELECT AS REQUIRED NOT NECESSARY TO USE ALL OF THE OVERSIZE PARTS. | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 144-98-09170 | BUSHING | 50001- | |
| 9 | 144-98-09071 | PIN | 50001- | |
| 0.18MM OVERSIZE | ||||
| 6 | 144-98-09180 | BUSHING | 50001- | |
| 9 | 144-98-09081 | PIN | 50001- |
