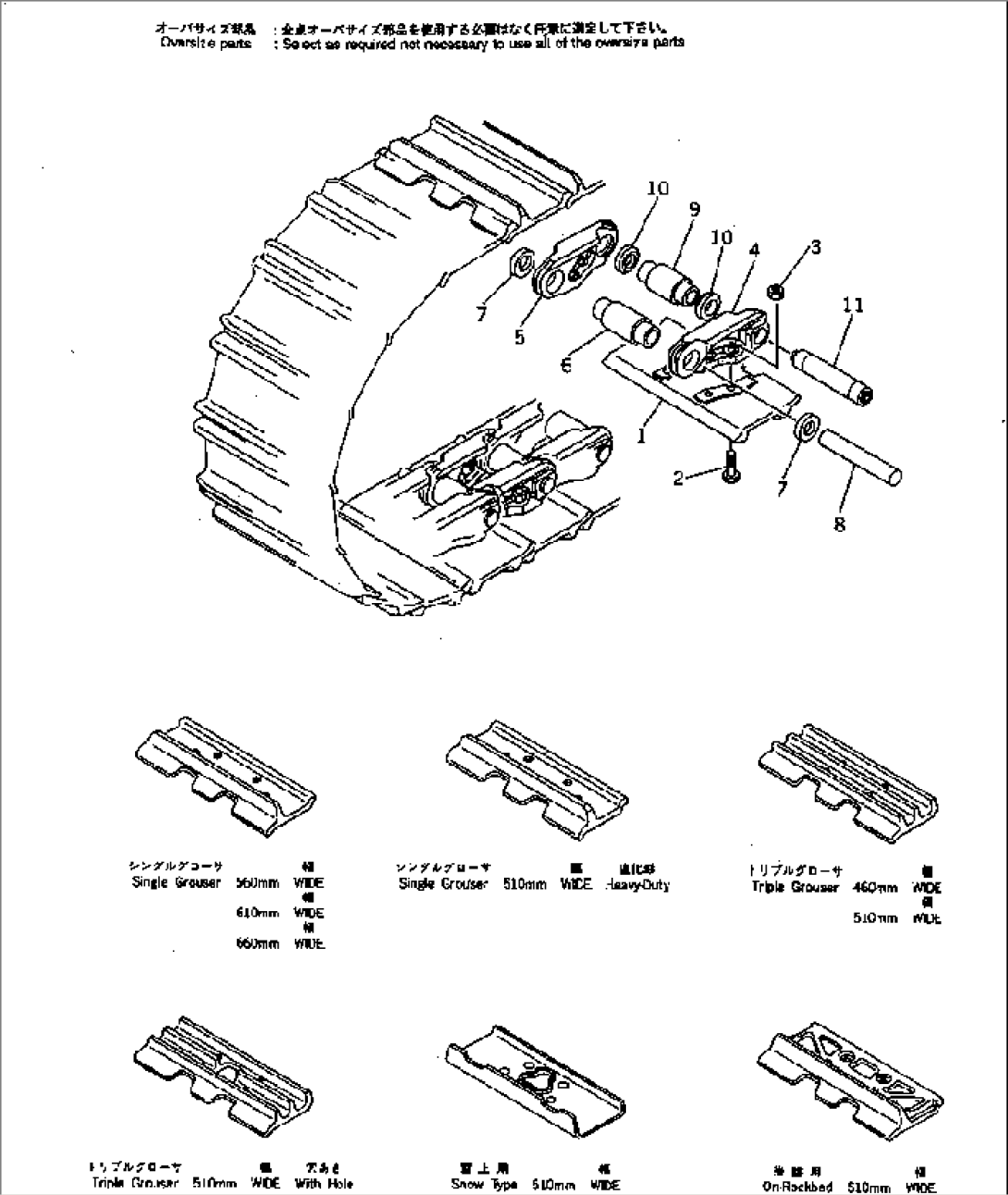

| Item | Part No. | Part Name | Qty | Serial No. |
| SINGLE 510MM | ||||
| 144-32-02609 | TRACK SHOE ASS'Y | 47540- | ||
| \0\144-32-02608 | TRACK SHOE ASS'Y | 45001-47539 | ||
| \0\144-32-02607 | TRACK SHOE ASS'Y | 45001-. | ||
| 1 | 144-32-11112 | SHOE | 45001- | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 141-32-00046 | TRACK LINK ASS'Y | .- | ||
| \0\141-32-00045 | TRACK LINK ASS'Y | 45001-. | ||
| 4 | 144-32-11123 | LINK,L.H. | 45001- | |
| 5 | 144-32-11133 | LINK,R.H. | 45001- | |
| 6 | 144-32-11144 | BUSHING,REGULAR | 45001- | |
| 7 | 144-32-11240 | SEAL,DUST, REGULAR, W-TYPE | 45001- | |
| 8 | 207-32-11152 | PIN,REGULAR | .- | |
| 8 | \0\144-32-11151 | PIN, REGULAR | 45001-. | |
| 9 | 144-32-11172 | BUSHING,MASTER | 45001- | |
| 10 | 150-32-11260 | SEAL,DUST, MASTER, E-TYPE | 45001- | |
| 11 | 207-32-11191 | PIN,MASTER | .- | |
| 11 | \0\144-32-11192 | PIN,MASTER | 45001-. | |
| 560MM WIDE | ||||
| 1 | 144-32-02109 | TRACK SHOE ASS'Y | 47540- | |
| 1 | \0\144-32-02108 | TRACK SHOE ASS'Y | .-47539 | |
| 1 | \0\144-32-02107 | TRACK SHOE ASS'Y | 45001-. | |
| 1 | 144-32-11341 | SHOE | 45001- | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 4 | 141-32-00046 | TRACK LINK ASS'Y | 45001- | |
| SINGLE 610MM | ||||
| 1 | 144-32-02709 | TRACK SHOE ASS'Y | 47540- | |
| 1 | \0\144-32-02708 | TRACK SHOE ASS'Y | .-47539 | |
| 1 | \0\144-32-02707 | TRACK SHOE ASS'Y | 45001-. | |
| 1 | 144-32-11351 | SHOE | 45001- | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 4 | 141-32-00046 | TRACK LINK ASS'Y | 45001- | |
| SINGLE 660MM | ||||
| 1 | 144-32-02809 | TRACK SHOE ASS'Y | 47540- | |
| 1 | \0\144-32-02808 | TRACK SHOE ASS'Y | .-47539 | |
| 1 | \0\144-32-02807 | TRACK SHOE ASS'Y | 45001-. | |
| 1 | 144-32-11361 | SHOE | 45001- | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 4 | 141-32-00046 | TRACK LINK ASS'Y | 45001- | |
| SINGLE 510MM,HEAVY DUTY | ||||
| 1 | 144-32-02409 | TRACK SHOE ASS'Y | 47540- | |
| 1 | \0\144-32-02408 | TRACK SHOE ASS'Y | .-47539 | |
| 1 | \0\144-32-02407 | TRACK SHOE ASS'Y | 45001-. | |
| 1 | 144-32-11441 | SHOE | 45001- | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 4 | 141-32-00046 | TRACK LINK ASS'Y | 45001- | |
| TRIPLE 510MM,WITH HOLE | ||||
| 1 | 144-32-02815 | TRACK SHOE ASS'Y | 47540- | |
| 1 | \0\144-32-02813 | TRACK SHOE ASS'Y | .-47539 | |
| 1 | \0\144-32-02812 | TRACK SHOE ASS'Y | 45001-. | |
| 1 | 144-32-11452 | SHOE | 47540- | |
| 1 | \0\144-32-11451 | SHOE | 45001-47539 | |
| 2 | 207-32-11312 | BOLT,SHOE (KIT) | 47540- | |
| 2 | 207-32-11310 | BOLT,SHOE (KIT) | 45001-47539 | |
| 3 | 154-32-21331 | NUT,SHOE (KIT) | 47540- | |
| 3 | 154-32-21330 | NUT,SHOE (KIT) | 45001-47539 | |
| 4 | 141-32-00046 | TRACK LINK ASS'Y | 45001- | |
| SERVICE KIT | ||||
| 1 | 207-32-05002 | SHOE BOLT AND NUT K. | 47540- | |
| 1 | \0\207-32-05001 | SHOE BOLT AND NUT K. | 45001-47539 | |
| 1 | 207-32-11312 | BOLT | 47540- | |
| 1 | 207-32-11310 | BOLT | 45001-47539 | |
| 2 | 154-32-21331 | NUT | 47540- | |
| 2 | 154-32-21330 | NUT | 45001-47539 | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 144-98-09114 | BUSHING,REGULAR | 45001- | |
| 8 | 207-98-09011 | PIN,REGULAR | .- | |
| 8 | \0\144-98-09011 | PIN,REGULAR | 45001-. | |
| 9 | 144-98-09144 | BUSHING,MASTER | 45001- | |
| 11 | 207-98-09041 | PIN, MASTER | .- | |
| 11 | 144-98-09041 | PIN,MASTER | 45001-. | |
| 0.18MM OVERSIZE | ||||
| 6 | 144-98-09134 | BUSHING,REGULAR | 45001- | |
| 8 | 207-98-09031 | PIN,REGULAR | .- | |
| 8 | \0\144-98-09031 | PIN,REGULAR | 45001-. | |
| 9 | 144-98-09164 | BUSHING,MASTER | 45001- | |
| 11 | 207-98-09061 | PIN,MASTER | .- | |
| 11 | 144-98-09061 | PIN,MASTER | 45001-. |
