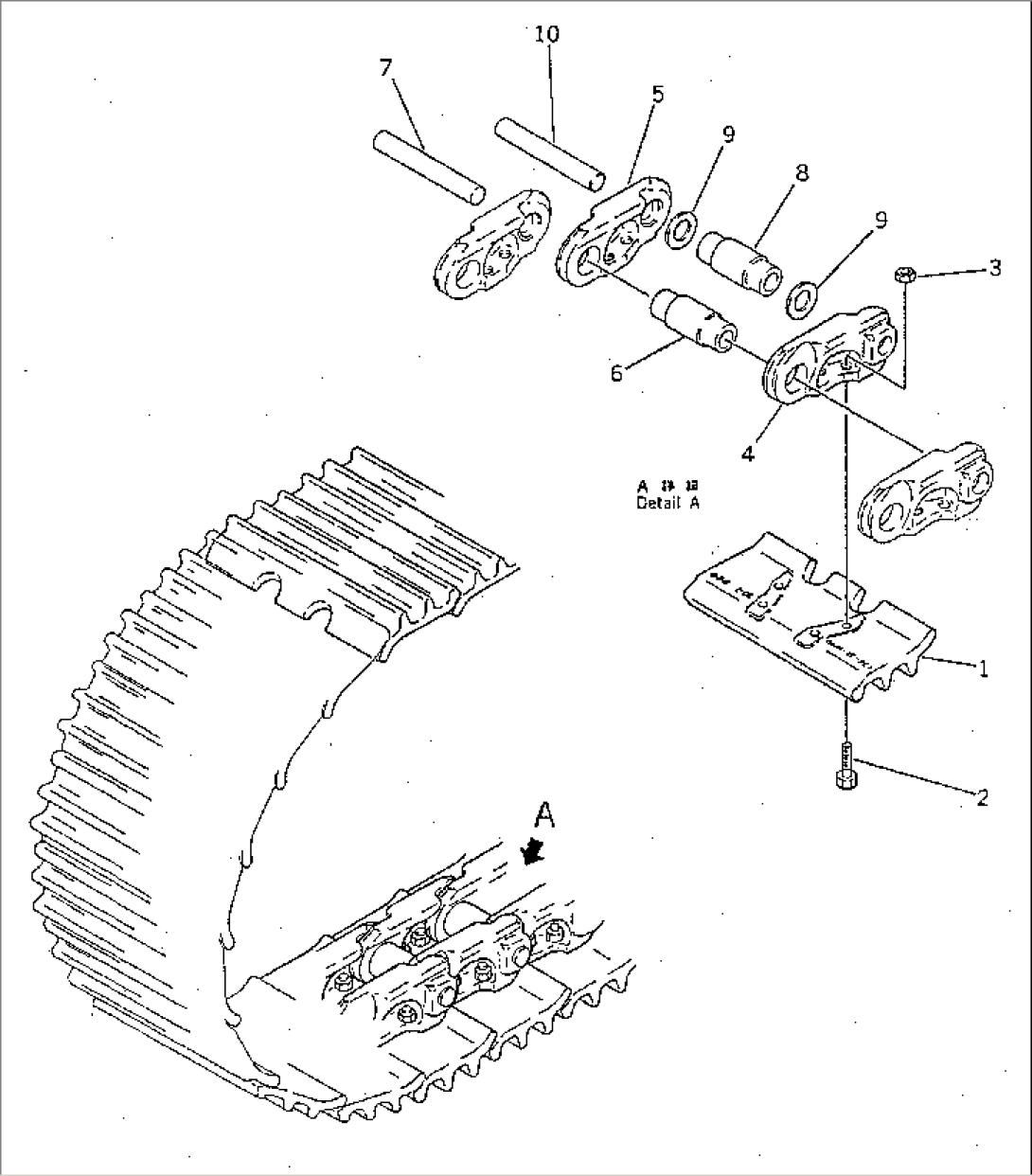

| Item | Part No. | Part Name | Qty | Serial No. |
| 178-32-01502 | TRACK SHOE ASS'Y | 1001- | ||
| 1 | 178-32-11290 | SHOE | 1001- | |
| 2 | 176-32-11210 | BOLT, SHOE (KIT) | 1001- | |
| 3 | 178-32-11220 | NUT, SHOE (KIT) | 1001- | |
| 178-32-00022 | TRACK LINK ASS'Y | 1001- | ||
| 4 | 178-32-11121 | LINK,L.H. | 1001- | |
| 5 | 178-32-11131 | LINK,R.H. | 1001- | |
| 6 | 175-32-11241 | BUSHING,REGULAR | 1001- | |
| 7 | 176-32-11151 | PIN,REGULAR | 1001- | |
| 8 | 176-32-11172 | BUSHING,MASTER | 1001- | |
| 9 | 175-32-11180 | SPACER | 1001- | |
| 10 | 176-32-11192 | PIN,MASTER | 1001- | |
| SERVICE KIT | ||||
| 2 | 178-32-05000 | SHOE BOLT AND NUT K. | 1001- | |
| 2 | 176-32-11210 | BOLT, SHOE | 1001- | |
| 3 | 178-32-11220 | NUT, SHOE | 1001- | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 176-98-09112 | BUSHING | 1001- | |
| 7 | 176-98-09011 | PIN | 1001- | |
| 8 | 176-98-09111 | BUSHING | 1001- | |
| 10 | 176-98-09042 | PIN | 1001- | |
| 0.18MM OVERSIZE | ||||
| 6 | 176-98-09132 | BUSHING,REGULAR | 1001- | |
| 7 | 176-98-09031 | PIN,REGULAR | 1001- | |
| 8 | 176-98-09131 | BUSHING,MASTER | 1001- | |
| 10 | 176-98-09062 | PIN,MASTER | 1001- |
