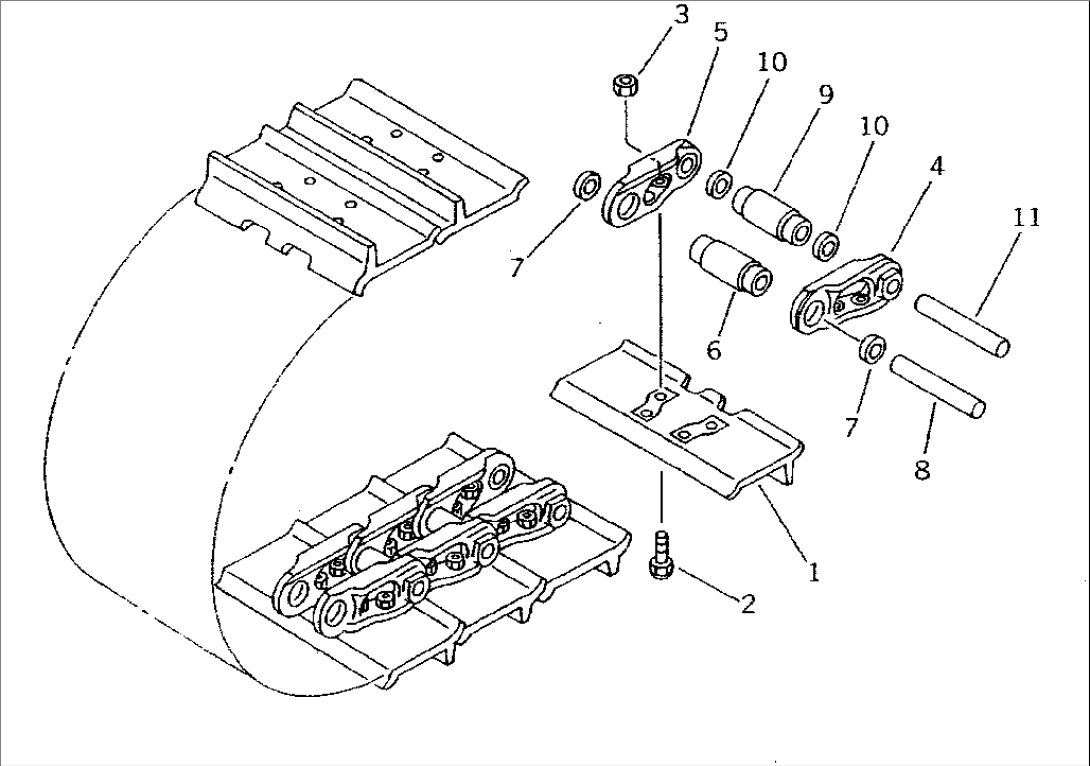

| Item | Part No. | Part Name | Qty | Serial No. |
| 400MM WIDE | ||||
| 130-32-02406 | TRACK SHOE ASS'Y | 83119-83148 | ||
| \0\130-32-02405 | TRACK SHOE ASS'Y | 83046-83118 | ||
| \0\130-32-02404 | TRACK SHOE ASS'Y | 83001-83045 | ||
| 1 | 130-32-11113 | SHOE,TRACK | 83001-83148 | |
| 2 | 205-32-51121 | BOLT¤ SHOE (KIT) | 83119-83148 | |
| 205-32-51120 | BOLT¤ SHOE (KIT) | 83001-83118 | ||
| 3 | 203-32-51220 | NUT,SHOE (KIT) | 83119-83148 | |
| 01803-01622 | NUT¤ SHOE (KIT) | 83001-83118 | ||
| 131-32-00037 | TRACK LINK ASS'Y | 83046-83148 | ||
| \0\131-32-00036 | TRACK LINK ASS'Y | 83001-83045 | ||
| 4 | 130-32-11126 | LINK,TRACK¤ L.H. | 83001-83148 | |
| 5 | 130-32-11136 | LINK,TRACK¤ R.H. | 83001-83148 | |
| 6 | 130-32-11146 | BUSHING,REGULAR | 83046-83148 | |
| \0\130-32-11145 | BUSHING,REGULAR | 83001-83045 | ||
| 7 | 135-32-11271 | SEAL,DUST¤ REGULAR¤ W-TYPE | 83001-83148 | |
| 8 | 205-32-51152 | PIN¤ REGULAR | 83001-83148 | |
| 9 | 130-32-11174 | BUSHING,MASTER | 83046-83148 | |
| \0\130-32-11173 | BUSHING¤ MASTER | 83001-83045 | ||
| 10 | 135-32-11381 | SEAL,DUST¤ MASTER¤ W-TYPE | 83001-83148 | |
| 11 | 205-32-21192 | PIN¤ MASTER | 83001-83148 | |
| 460MM WIDE | ||||
| 130-32-02416 | TRACK SHOE ASS'Y | 83119-83148 | ||
| \0\130-32-02415 | TRACK SHOE ASS'Y | 83046-83118 | ||
| \0\130-32-02414 | TRACK SHOE ASS'Y | 83001-83045 | ||
| 1 | 130-32-11280 | SHOE,TRACK | 83001-83148 | |
| 2 | 205-32-51121 | BOLT¤ SHOE (KIT) | 83119-83148 | |
| 205-32-51120 | BOLT¤ SHOE (KIT) | 83001-83118 | ||
| 3 | 203-32-51220 | NUT,SHOE (KIT) | 83119-83148 | |
| 01803-01622 | NUT¤ SHOE (KIT) | 83001-83118 | ||
| 131-32-00037 | TRACK LINK ASS'Y | 83046-83148 | ||
| \0\131-32-00036 | TRACK LINK ASS'Y | 83001-83045 | ||
| 510MM WIDE | ||||
| 130-32-02426 | TRACK SHOE ASS'Y | 83119-83148 | ||
| \0\130-32-02425 | TRACK SHOE ASS'Y | 83046-83118 | ||
| \0\130-32-02424 | TRACK SHOE ASS'Y | 83001-83045 | ||
| 1 | 130-32-11270 | SHOE,TRACK | 83001-83148 | |
| 2 | 205-32-51121 | BOLT¤ SHOE (KIT) | 83119-83148 | |
| 205-32-51120 | BOLT¤ SHOE (KIT) | 83001-83118 | ||
| 3 | 203-32-51220 | NUT,SHOE (KIT) | 83119-83148 | |
| 01803-01622 | NUT¤ SHOE (KIT) | 83001-83118 | ||
| 131-32-00037 | TRACK LINK ASS'Y | 83046-83148 | ||
| \0\131-32-00036 | TRACK LINK ASS'Y | 83001-83045 | ||
| SERVICE KIT | ||||
| 205-32-05011 | SHOE BOLT AND NUT K. | 83119-83148 | ||
| \0\205-32-05010 | SHOE BOLT AND NUT K. | 83001-83118 | ||
| 1 | 205-32-51121 | BOLT¤ SHOE | 83119-83148 | |
| 205-32-51120 | BOLT¤ SHOE | 83001-83118 | ||
| 2 | 203-32-51220 | NUT,SHOE | 83119-83148 | |
| 01803-01622 | NUT¤ SHOE | 83001-83118 | ||
| OVERSIZE PARTS | ||||
| SELECT AS REQUIRED NOT NECESSARY TO USE ALL OF THE OVERSIZE PARTS. | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 130-98-09115 | BUSHING¤ REGULAR | 83046-83148 | |
| \0\130-98-09114 | BUSHING¤ REGULAR | 83001-83045 | ||
| 8 | 205-98-09012 | PIN¤ REGULAR | 83001-83148 | |
| 9 | 130-98-09144 | BUSHING¤ MASTER | 83046-83148 | |
| \0\130-98-09143 | BUSHING¤ MASTER | 83001-83045 | ||
| 11 | 205-98-09042 | PIN¤ MASTER | 83001-83148 | |
| 0.18MM OVERSIZE | ||||
| 6 | 130-98-09135 | BUSHING¤ REGULAR | 83046-83148 | |
| \0\130-98-09134 | BUSHING¤ REGULAR | 83001-83045 | ||
| 8 | 205-98-09032 | PIN¤ REGULAR | 83001-83148 | |
| 9 | 130-98-09164 | BUSHING¤ MASTER | 83046-83148 | |
| \0\130-98-09163 | BUSHING¤ MASTER | 83001-83045 | ||
| 11 | 205-98-09062 | PIN¤ MASTER | 83001-83148 |
