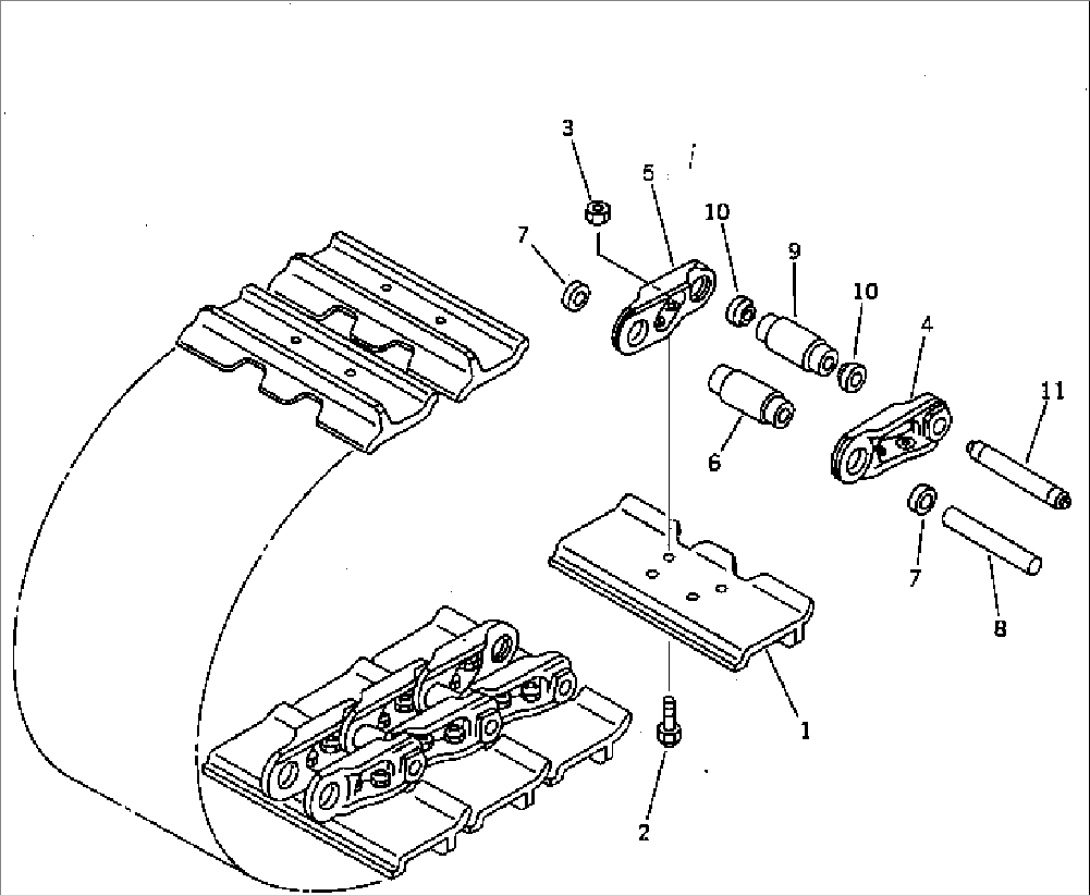

| Item | Part No. | Part Name | Qty | Serial No. |
| 510MM WIDE | ||||
| 144-32-01011 | TRACK SHOE ASS'Y | 50054-50060 | ||
| \0\144-32-01010 | TRACK SHOE ASS'Y | 50001-50053 | ||
| 1 | 144-32-11112 | SHOE | 50001-50060 | |
| 2 | 207-32-11312 | BOLT (KIT) | 50054-50060 | |
| 207-32-11310 | BOLT (KIT) | 50001-50053 | ||
| 3 | 154-32-21331 | NUT (KIT) | 50054-50060 | |
| 154-32-21330 | NUT (KIT) | 50001-50053 | ||
| 144-32-00031 | TRACK LINK ASS'Y | 50001-@ | ||
| 4 | 144-32-11123 | LINK | 50001-@ | |
| 5 | 144-32-11133 | LINK | 50001-@ | |
| 6 | 144-32-11144 | BUSHING | 50001-@ | |
| 7 | 144-32-11240 | SEAL | 50001-@ | |
| 8 | 207-32-11152 | PIN,REGULAR | 50001-@ | |
| 9 | 144-32-11172 | BUSHING | 50001-@ | |
| 10 | 150-32-11260 | SEAL | 50001-@ | |
| 11 | 207-32-11191 | PIN,MASTER | 50001-@ | |
| 560MM WIDE | ||||
| 144-32-02010 | TRACK SHOE ASS'Y | 50054-50060 | ||
| \0\144-32-02009 | TRACK SHOE ASS'Y | 50001-50053 | ||
| 1 | 144-32-11341 | SHOE | 50001-50060 | |
| 2 | 207-32-11312 | BOLT (KIT) | 50054-50060 | |
| 207-32-11310 | BOLT (KIT) | 50001-50053 | ||
| 3 | 154-32-21331 | NUT (KIT) | 50054-50060 | |
| 154-32-21330 | NUT (KIT) | 50001-50053 | ||
| 144-32-00031 | TRACK LINK ASS'Y | 50001-50060 | ||
| 610MM WIDE | ||||
| 144-32-03010 | TRACK SHOE ASS'Y | 50054-50060 | ||
| \0\144-32-03009 | TRACK SHOE ASS'Y | 50001-50053 | ||
| 1 | 144-32-11351 | SHOE | 50001-50060 | |
| 2 | 207-32-11312 | BOLT (KIT) | 50054-50060 | |
| 207-32-11310 | BOLT (KIT) | 50001-50053 | ||
| 3 | 154-32-21331 | NUT (KIT) | 50054-50060 | |
| 154-32-21330 | NUT (KIT) | 50001-50053 | ||
| 144-32-00031 | TRACK LINK ASS'Y | 50001-50060 | ||
| 660MM WIDE | ||||
| 144-32-04010 | TRACK SHOE ASS'Y | 50054-@ | ||
| \0\144-32-04009 | TRACK SHOE ASS'Y | 50001-50053 | ||
| 1 | 144-32-11361 | SHOE | 50001-@ | |
| 2 | 207-32-11312 | BOLT (KIT) | 50054-@ | |
| 207-32-11310 | BOLT (KIT) | 50001-50053 | ||
| 3 | 154-32-21331 | NUT (KIT) | 50054-@ | |
| 154-32-21330 | NUT (KIT) | 50001-50053 | ||
| 144-32-00031 | TRACK LINK ASS'Y | 50001-@ | ||
| SERVICE KIT | ||||
| 207-32-05002 | SHOE BOLT AND NUT K. | 50054-@ | ||
| \0\207-32-05001 | SHOE BOLT AND NUT K. | 50001-50053 | ||
| 1 | 207-32-11312 | BOLT | 50054-@ | |
| 207-32-11310 | BOLT | 50001-50053 | ||
| 2 | 154-32-21331 | NUT | 50054-@ | |
| 154-32-21330 | NUT | 50001-50053 | ||
| OVERSIZE PARTS | ||||
| SELECT AS REQUIRED NOT NECESSARY TO USE ALL OF THE OVERSIZE PARTS. | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 144-98-09114 | BUSHING,REGULAR | 50001-@ | |
| 8 | 207-98-09011 | PIN,REGULAR | 50001-@ | |
| 9 | 144-98-09144 | BUSHING,MASTER | 50001-@ | |
| 11 | 207-98-09041 | PIN¤ MASTER,MASTER | 50001-@ | |
| 0.18MM OVERSIZE | ||||
| 6 | 144-98-09134 | BUSHING,REGULAR | 50001-@ | |
| 8 | 207-98-09031 | PIN,REGULAR | 50001-@ | |
| 9 | 144-98-09164 | BUSHING,MASTER | 50001-@ | |
| 11 | 207-98-09061 | PIN,MASTER | 50001-@ |
