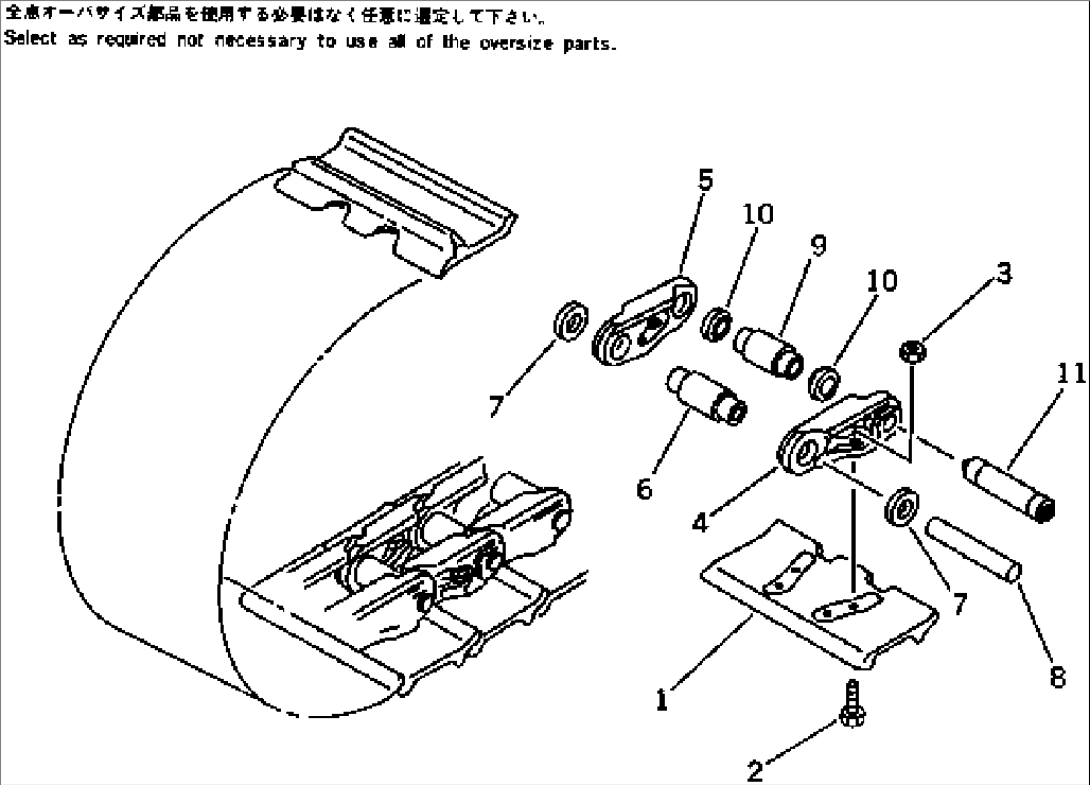

| Item | Part No. | Part Name | Qty | Serial No. |
| 510MM WIDE | ||||
| 144-32-02631 | TRACK SHOE ASS'Y | 50313-@ | ||
| \0\144-32-02630 | TRACK SHOE ASS'Y | 50001-50312 | ||
| 1 | 144-32-11112 | SHOE,TRACK | 50001-@ | |
| 2 | 207-32-11312 | BOLT,SHOE (K11) | 50313-@ | |
| 2 | 207-32-11310 | BOLT,SHOE (K11) | 50001-50312 | |
| 3 | 154-32-21331 | NUT,SHOE (K11) | 50313-@ | |
| 3 | 154-32-21330 | NUT,SHOE (K11) | 50001-50312 | |
| 144-32-00071 | TRACK LINK ASS'Y | 50001-@ | ||
| 4 | 144-32-11123 | LINK,TRACK, L.H. | 50001-@ | |
| 5 | 144-32-11133 | LINK,TRACK, R.H. | 50001-@ | |
| 6 | 144-32-11144 | BUSHING,REGULAR | 50001-@ | |
| 7 | 144-32-11240 | SEAL,DUST, REGULAR, W-TYPE | 50001-@ | |
| 8 | 207-32-11152 | PIN | 50001-@ | |
| 9 | 144-32-11172 | BUSHING,MASTER | 50001-@ | |
| 10 | 150-32-11260 | SEAL,DUST, MASTER, E-TYPE | 50001-@ | |
| 11 | 207-32-11191 | PIN | 50001-@ | |
| 560MM WIDE | ||||
| 1 | 144-32-02131 | TRACK SHOE ASS'Y | 50313-50346 | |
| 1 | \0\144-32-02130 | TRACK SHOE ASS'Y | 50001-50312 | |
| 1 | 144-32-11341 | SHOE,TRACK | 50001-50346 | |
| 2 | 207-32-11312 | BOLT,SHOE (K11) | 50313-50346 | |
| 2 | 207-32-11310 | BOLT,SHOE (K11) | 50001-50312 | |
| 3 | 154-32-21331 | NUT,SHOE (K11) | 50313-50346 | |
| 3 | 154-32-21330 | NUT,SHOE (K11) | 50001-50312 | |
| 4 | 144-32-00071 | TRACK LINK ASS'Y | 50001-50346 | |
| 610MM WIDE | ||||
| 1 | 144-32-02731 | TRACK SHOE ASS'Y | 50313-50346 | |
| 1 | \0\144-32-02730 | TRACK SHOE ASS'Y | 50001-50312 | |
| 1 | 144-32-11351 | SHOE,TRACK | 50001-50346 | |
| 2 | 207-32-11312 | BOLT,SHOE (K11) | 50313-50346 | |
| 2 | 207-32-11310 | BOLT,SHOE (K11) | 50001-50312 | |
| 3 | 154-32-21331 | NUT,SHOE (K11) | 50313-50346 | |
| 3 | 154-32-21330 | NUT,SHOE (K11) | 50001-50312 | |
| 4 | 144-32-00071 | TRACK LINK ASS'Y | 50001-50346 | |
| SERVICE KIT | ||||
| 1 | 207-32-05002 | SHOE BOLT AND NUT K. | 50313-@ | |
| 1 | \0\207-32-05001 | SHOE BOLT AND NUT K. | 50001-50312 | |
| 1 | 207-32-11312 | BOLT,SHOE | 50313-@ | |
| 1 | 207-32-11310 | BOLT,SHOE | 50001-50312 | |
| 2 | 154-32-21331 | NUT,SHOE | 50313-@ | |
| 2 | 154-32-21330 | NUT,SHOE | 50001-50312 | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 144-98-09114 | BUSHING,REGULAR | 50001-@ | |
| 8 | 207-98-09011 | PIN | 50001-@ | |
| 9 | 144-98-09144 | BUSHING,MASTER | 50001-@ | |
| 11 | 207-98-09041 | PIN, MASTER | 50001-@ | |
| 0.18MM OVERSIZE | ||||
| 6 | 144-98-09134 | BUSHING,REGULAR | 50001-@ | |
| 8 | 207-98-09031 | PIN | 50001-@ | |
| 9 | 144-98-09164 | BUSHING,MASTER | 50001-@ | |
| 11 | 207-98-09061 | PIN | 50001-@ |
