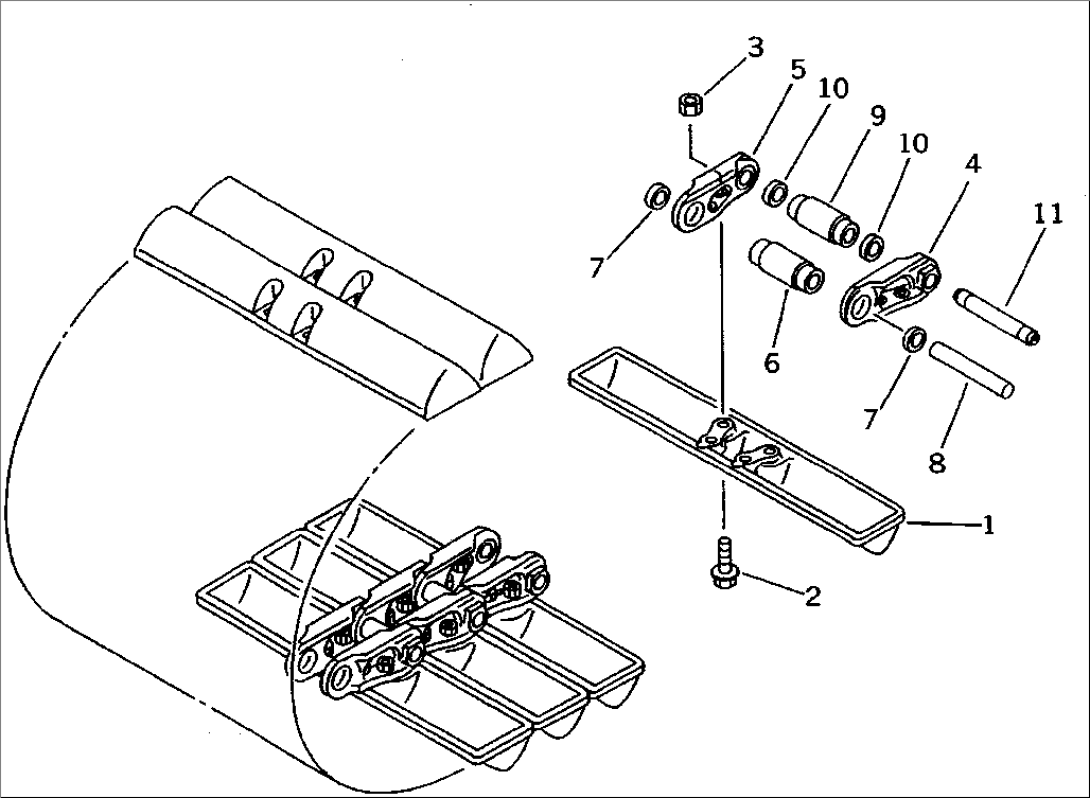

| Item | Part No. | Part Name | Qty | Serial No. |
| 910MM WIDE,WITH HOLE | ||||
| 154-820-0421 | TRACK SHOE ASS'Y | 3525-3642 | ||
| \0\154-820-0420 | TRACK SHOE ASS'Y | 3001-3524 | ||
| 1 | 154-820-1120 | SHOE,TRACK | 3001-3642 | |
| 2 | 154-820-1212 | BOLT (KIT) | 3525-3642 | |
| 2 | 154-820-1211 | BOLT (KIT) | 3001-3524 | |
| 3 | 154-32-31220 | NUT, SHOE (KIT) | 3001-3642 | |
| 154-32-00410 | TRACK LINK ASS'Y | 3001-3642 | ||
| 4 | 154-32-31120 | LINK,TRACK, L.H. | 3001-3642 | |
| 5 | 154-32-31130 | LINK,TRACK, R.H. | 3001-3642 | |
| 6 | 154-32-31141 | BUSHING,REGULAR | 3001-3642 | |
| 7 | 154-32-11283 | SEAL,DUST, REGULAR, W-TYPE | 3001-3642 | |
| 8 | 154-820-1153 | PIN | 3001-3642 | |
| 9 | 154-32-31171 | BUSHING,MASTER | 3001-3642 | |
| 10 | 154-32-11260 | SEAL,DUST, MASTER, E-TYPE | 3001-3642 | |
| 11 | 154-820-1192 | PIN | 3001-3642 | |
| SERVICE KIT | ||||
| 1 | 154-820-0521 | SHOE BOLT AND NUT K. | 3525-3642 | |
| 1 | \0\154-820-0520 | SHOE BOLT AND NUT K. | 3001-3524 | |
| 2 | 154-820-1212 | BOLT | 3525-3642 | |
| 2 | 154-820-1211 | BOLT | 3001-3524 | |
| 3 | 154-32-31220 | NUT, SHOE | 3001-3642 | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 154-98-09411 | BUSHING, REGULAR | 3001-3642 | |
| 8 | 154-98-09212 | PIN, REGULAR | 3001-3642 | |
| 9 | 154-98-09441 | BUSHING, MASTER | 3001-3642 | |
| 11 | 154-98-09242 | PIN, MASTER | 3001-3642 | |
| 0.18MM OVERSIZE | ||||
| 6 | 154-98-09431 | BUSHING, REGULAR | 3001-3642 | |
| 8 | 154-98-09232 | PIN, REGULAR | 3001-3642 | |
| 9 | 154-98-09461 | BUSHING, MASTER | 3001-3642 | |
| 11 | 154-98-09262 | PIN, MASTER | 3001-3642 |
