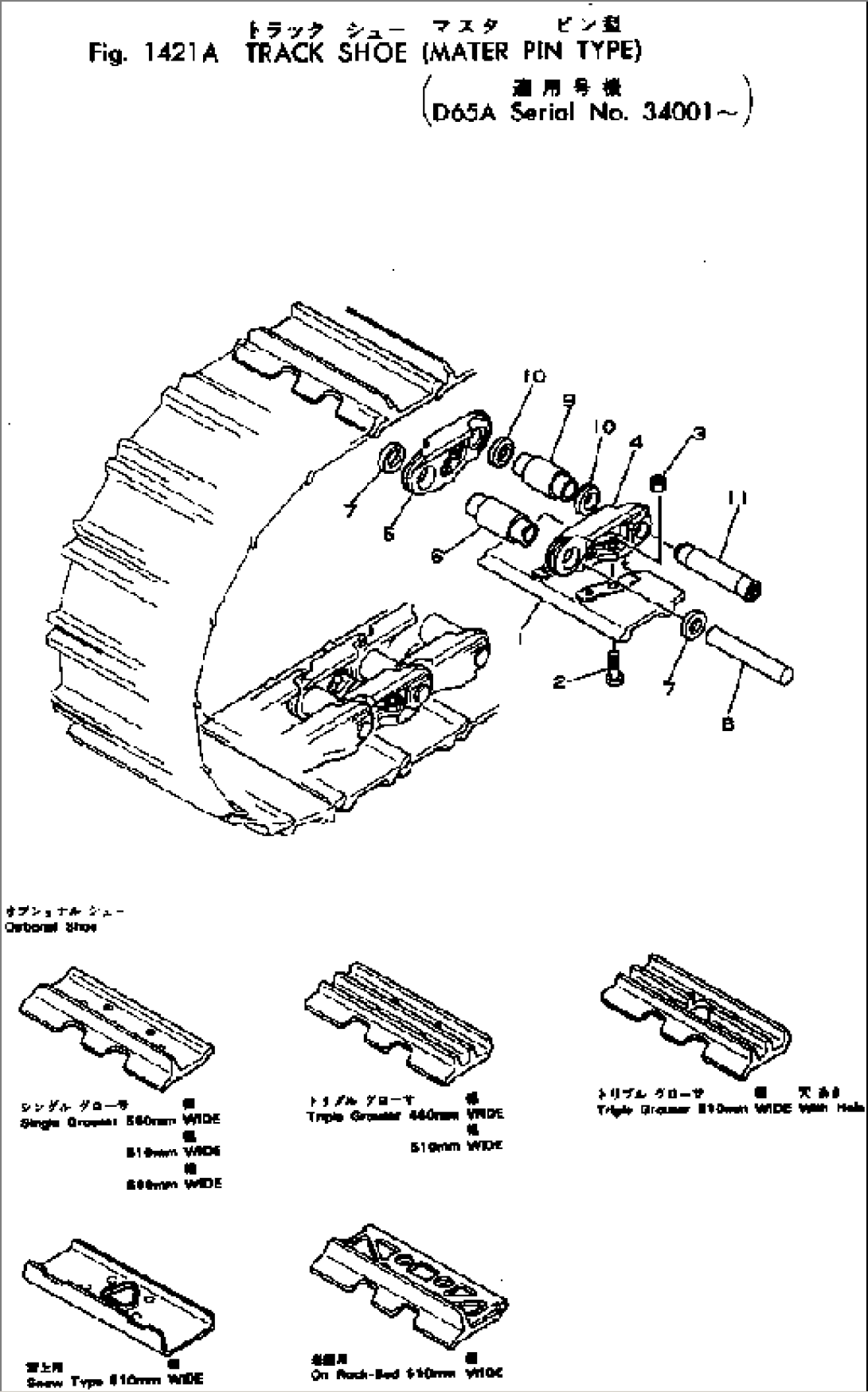

TRACK SHOE (MASTER PIN TYPE)(#34001-)

TRACK SHOE (MASTER PIN TYPE)(#34001-)
ItemPart No.Part NameQtySerial No.
SINGLE 510MM
144-32-01008TRACK SHOE ASS'Y.-
\0\144-32-01007TRACK SHOE ASS'Y34001-.
1144-32-11111SHOE,TRACK20006-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
144-32-00030TRACK LINK ASS'Y34001-
4144-32-11123LINK,TRACK¤ L.H.34001-
5144-32-11133LINK,TRACK¤ R.H.34001-
6144-32-11144BUSHING,REGULAR34001-
7144-32-11240SEAL,DUST¤ REGULAR¤ W-TYPE26247-
8144-32-11151PIN¤ REGULAR26153-
9144-32-11172BUSHING,MASTER34001-
10150-32-11260SEAL,DUST¤ MASTER¤ E-TYPE20006-
11144-32-11192PIN,MASTER26153-
SINGLE 560MM
144-32-02007TRACK SHOE ASS'Y.-
\0\144-32-02006TRACK SHOE ASS'Y34001-.
1144-32-11340SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
SINGLE 610MM
144-32-03007TRACK SHOE ASS'Y.-
\0\144-32-03006TRACK SHOE ASS'Y34001-.
1144-32-11350SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
SINGLE 660MM
144-32-04007TRACK SHOE ASS'Y.-
\0\144-32-04006TRACK SHOE ASS'Y34001-.
1144-32-11360SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
SINGLE 510MM{(HEAVY-DUTY)}
144-32-04206TRACK SHOE ASS'Y.-
\0\144-32-04205TRACK SHOE ASS'Y34001-.
1144-32-11441SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
ON-ROCKBED 510MM
144-32-01806TRACK SHOE ASS'Y.-
\0\144-32-01805TRACK SHOE ASS'Y34001-.
1144-32-11320SHOE,TRACK20006-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
TRIPLE 460MM
144-32-01506TRACK SHOE ASS'Y.-
\0\144-32-01505TRACK SHOE ASS'Y34001-.
1141-32-11291SHOE,TRACK22388-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
TRIPLE 510MM
144-32-01602TRACK SHOE ASS'Y.-
\0\144-32-01601TRACK SHOE ASS'Y34001-.
1141-32-11350SHOE,TRACK20006-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
TRIPLE 510MM{WITH HOLE}
144-32-04103TRACK SHOE ASS'Y.-
\0\144-32-04102TRACK SHOE ASS'Y34001-.
1144-32-11451SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
SNOW 510MM
144-32-01109TRACK SHOE ASS'Y.-
\0\144-32-01108TRACK SHOE ASS'Y34001-.
1144-32-11311SHOE,TRACK34001-
2207-32-11310BOLT,SHOE (KIT).-
\0\144-32-11211BOLT¤ SHOE (KIT)25155-.
3154-32-21330NUT,SHOE (KIT)25155-
4144-32-00030TRACK LINK ASS'Y34001-
SERVICE KIT
207-32-05000SHOE BOLT AND NUT K..-
\0\144-32-05001SHOE BOLT AND NUT K.25155-.
2207-32-11310BOLT,SHOE.-
\0\144-32-11211BOLT¤ SHOE25155-.
3154-32-21330NUT,SHOE25155-
OVERSIZE PARTS
0.10MM OVERSIZE
6144-98-09114BUSHING,REGULAR34001-
8144-98-09011PIN,REGULAR26153-
9144-98-09144BUSHING,MASTER34001-
11144-98-09041PIN,MASTER26153-
0.18MM OVERSIZE
6144-98-09134BUSHING,REGULAR34001-
8144-98-09031PIN,REGULAR26153-
9144-98-09164BUSHING,MASTER34001-
11144-98-09061PIN,MASTER26153-
