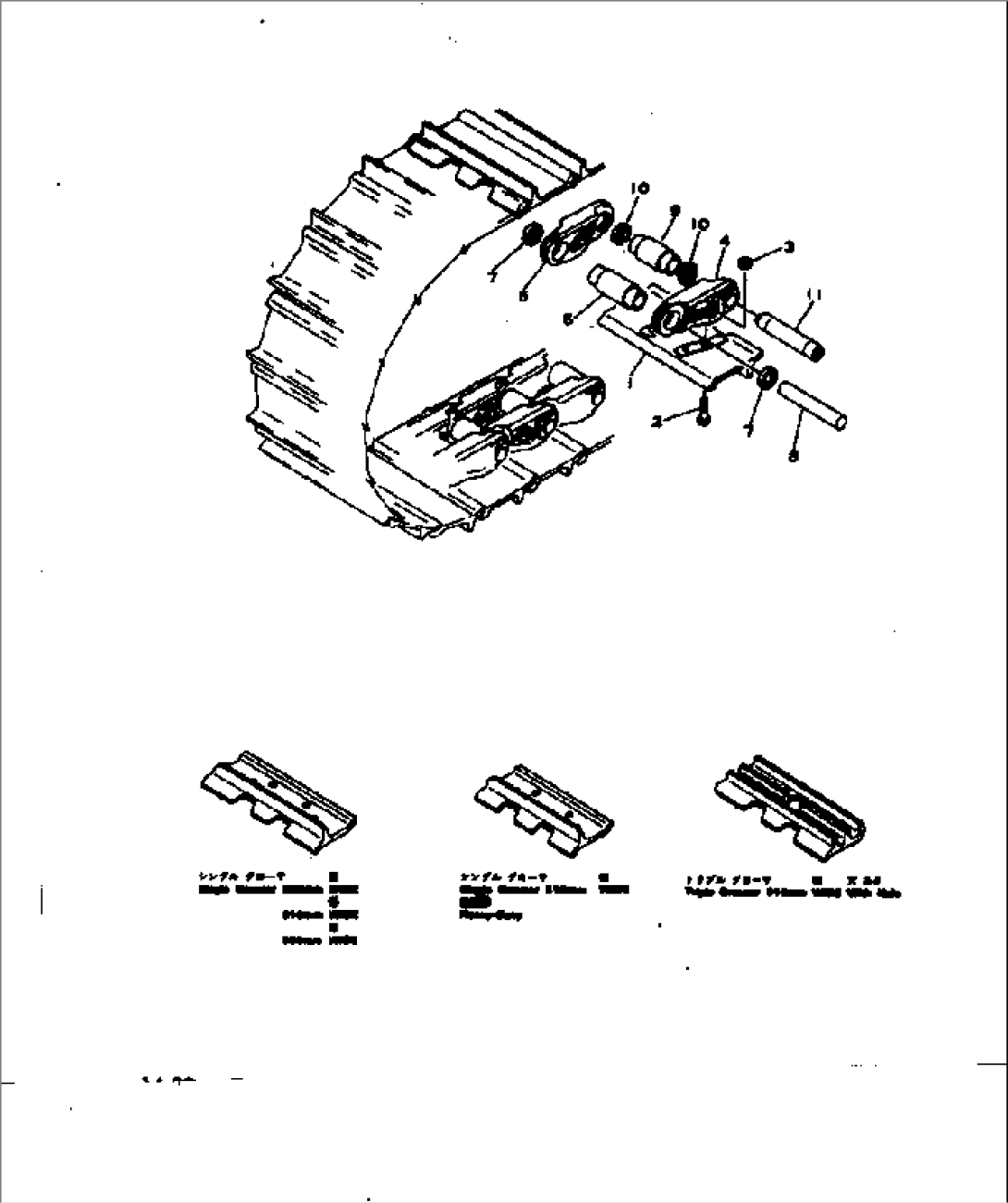

| Item | Part No. | Part Name | Qty | Serial No. |
| STANDARD TRACK SHOE | ||||
| SINGLE GROUSER | ||||
| 510MM WIDE | ||||
| 1 | 144-32-02606 | TRACK SHOE ASS'Y | 34001- | |
| 1 | \0\144-32-02605 | TRACK SHOE ASS'Y | 34001-. | |
| 1 | 144-32-11111 | SHOE | 20295- | |
| 2 | 207-32-11310 | BOLT (KIT) | 20295- | |
| 2 | \0\144-32-11211 | BOLT, SHOE (KIT) | 20295-. | |
| 3 | 154-32-21330 | NUT (KIT) | 20295- | |
| 4 | 141-32-00045 | TRACK LINK ASS'Y | 34001- | |
| 4 | 144-32-11123 | LINK,L.H. | 34001- | |
| 5 | 144-32-11133 | LINK,R.H. | 34001- | |
| 6 | 144-32-11144 | BUSHING,REGULAR | 34001- | |
| 7 | 144-32-11240 | SEAL,DUST, W-TYPE | 34001- | |
| 8 | 144-32-11151 | PIN, REGULAR,REGULAR | 34001- | |
| 9 | 144-32-11172 | BUSHING,MASTER | 34001- | |
| 10 | 150-32-11260 | SEAL,DUST, E-TYPE | 20295- | |
| 11 | 144-32-11192 | PIN,MASTER | 34001- | |
| SERVICE KIT | ||||
| 12 | 207-32-05000 | SHOE BOLT AND NUT K. | 20295- | |
| 12 | \0\144-32-05001 | SHOE BOLT AND NUT K. | 20295-. | |
| 12 | 207-32-11310 | BOLT | 20295- | |
| 12 | \0\144-32-11211 | BOLT, SHOE | 20295-. | |
| 12 | 154-32-21330 | NUT | 20295- | |
| OVERSIZE PARTS | ||||
| 0.10MM OVERSIZE | ||||
| 6 | 144-98-09114 | BUSHING,REGULAR (OS) | 34001- | |
| 8 | 144-98-09011 | PIN,REGULAR (OS) | 34001- | |
| 9 | 144-98-09144 | BUSHING,MASTER (OS) | 34001- | |
| 10 | 144-98-09041 | PIN,MASTER (OS) | 34001- | |
| 0.18MM OVERSIZE | ||||
| 6 | 144-98-09134 | BUSHING,REGULAR (OS) | 34001- | |
| 8 | 144-98-09031 | PIN,REGULAR (OS) | 34001- | |
| 9 | 144-98-09164 | BUSHING,MASTER (OS) | 34001- | |
| 11 | 144-98-09061 | PIN,MASTER (OS) | 34001- | |
| S | »SOP | OPTIONAL TRACK SHOE | 34001- | |
| S | »GSINGLE | SINGLE GROUSER | 34001- | |
| S | »G560W | 560MM WIDE | 34001- | |
| 1 | 144-32-02106 | TRACK SHOE ASS'Y (OP) | 34001- | |
| 1 | \0\144-32-02105 | TRACK SHOE ASS'Y (OP) | 34001-. | |
| 1 | 144-32-11340 | SHOE (OP) | 20295- | |
| SINGLE GROUSER | ||||
| 610MM WIDE | ||||
| 1 | 144-32-02706 | TRACK SHOE ASS'Y (OP) | 34001- | |
| 1 | \0\144-32-02705 | TRACK SHOE ASS'Y (OP) | 34001-. | |
| 1 | 144-32-11350 | SHOE (OP) | 20295- | |
| SINGLE GROUSER | ||||
| 660MM WIDE | ||||
| 1 | 144-32-02806 | TRACK SHOE ASS'Y (OP) | 34001- | |
| 1 | \0\144-32-02805 | TRACK SHOE ASS'Y (OP) | 34001-. | |
| 1 | 144-32-11360 | SHOE (OP) | 20295- | |
| SINGLE GROUSER | ||||
| 510MM WIDE | ||||
| 1 | 144-32-02407 | TRACK SHOE ASS'Y (OP) | 34001- | |
| 1 | \0\144-32-02406 | TRACK SHOE ASS'Y (OP) | 34001-. | |
| 1 | 144-32-11441 | SHOE (OP) | 20295- | |
| TRIPLE GROUSER | ||||
| 510MM WIDE,WITH HOLE | ||||
| 1 | 144-32-02812 | TRACK SHOE ASS'Y (OP) | 34001- | |
| 1 | \0\144-32-02811 | TRACK SHOE ASS'Y (OP) | 34001-. | |
| 1 | 144-32-11451 | SHOE (OP) | 34001- |
