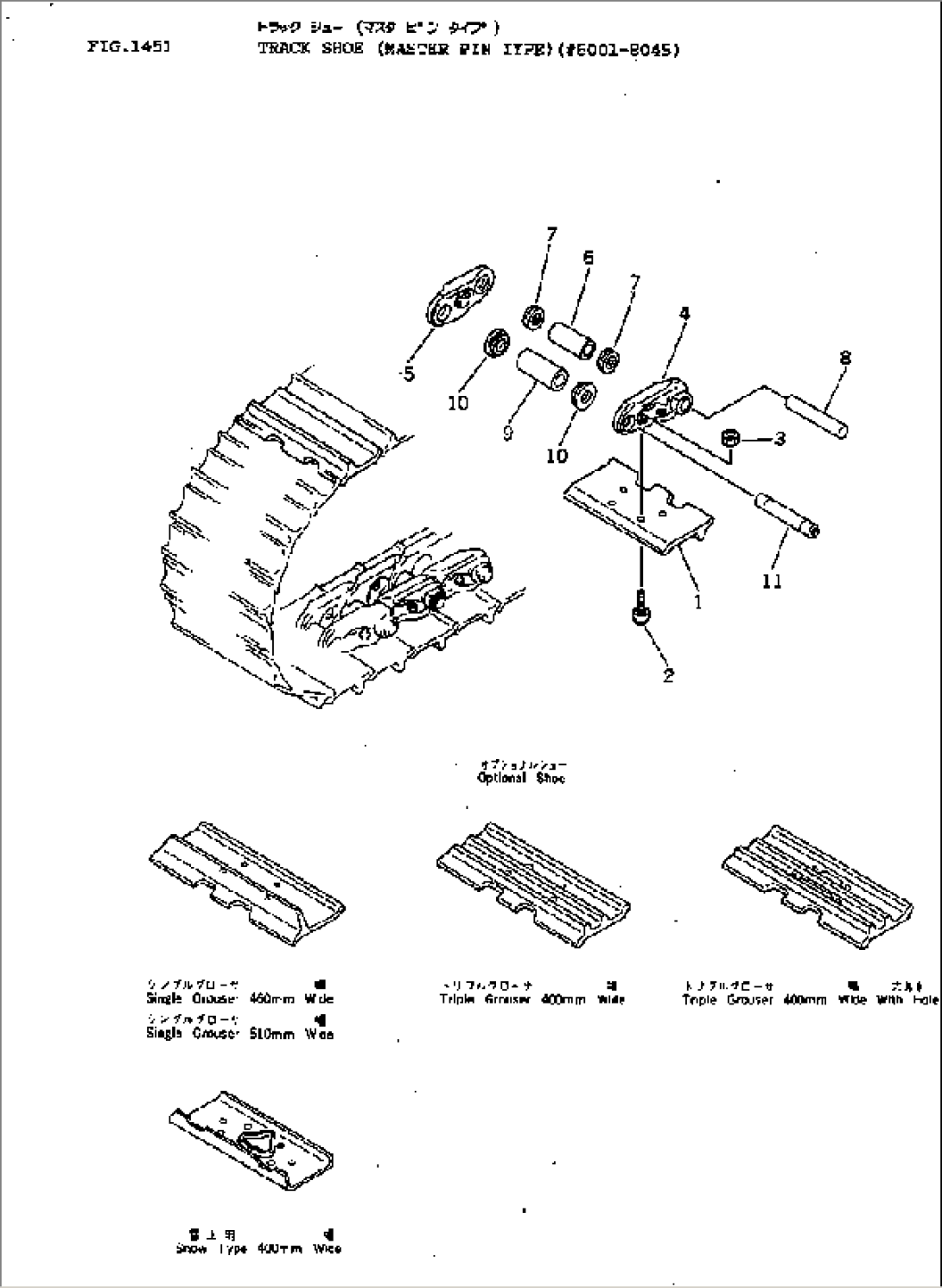

TRACK SHOE (MASTER PIN TYPE)(#6001-8045)

TRACK SHOE (MASTER PIN TYPE)(#6001-8045)
ItemPart No.Part NameQtySerial No.
SINGLE 400MM
124-32-01007TRACK SHOE ASS'Y7971-8045
\0\124-32-01006TRACK SHOE ASS'Y.-7970
\0\124-32-01005TRACK SHOE ASS'Y7442-.
\0\124-32-01004TRACK SHOE ASS'Y6166-7441
\0\124-32-01003TRACK SHOE ASS'Y6001-6165
1130-32-11113SHOE6001-8045
2205-32-51121BOLT¤ SHOE (KIT)7971-@
205-32-51120BOLT¤ SHOE (KIT)6166-7970
\0\130-32-11213BOLT¤ SHOE (KIT)6001-6165
3203-32-51220NUT,SHOE (KIT)7971-@
01803-01622NUT¤ SHOE (KIT)6001-7970
125-32-00012TRACK LINK ASS'Y.-@
\0\125-32-00011TRACK LINK ASS'Y7442-.
\0\125-32-00010TRACK LINK ASS'Y6001-7441
4130-32-11126LINK,L.H.6001-@
5130-32-11136LINK,R.H.6001-@
6130-32-11146BUSHING,REGULAR.-@
\0\130-32-11145BUSHING,REGULAR6001-.
7135-32-11271SEAL,DUST¤ REGULAR6001-@
8205-32-51152PIN¤ REGULAR7442-@
\0\135-32-11151PIN¤ REGULAR6001-7441
9130-32-11174BUSHING,MASTER.-@
\0\130-32-11173BUSHING¤ MASTER6001-.
10135-32-11381SEAL,DUST¤ MASTER6001-@
11205-32-21192PIN¤ MASTER7442-@
\0\135-32-11191PIN¤ MASTER6001-7441
SINGLE 460MM
124-32-02207TRACK SHOE ASS'Y7971-8045
\0\124-32-02205TRACK SHOE ASS'Y7442-7970
\0\124-32-02204TRACK SHOE ASS'Y6166-7441
\0\124-32-02203TRACK SHOE ASS'Y6001-6165
1130-32-11280SHOE6001-8045
SINGLE 510MM
124-32-02307TRACK SHOE ASS'Y7971-8045
\0\124-32-02305TRACK SHOE ASS'Y7442-7970
\0\124-32-02304TRACK SHOE ASS'Y6166-7441
\0\124-32-02303TRACK SHOE ASS'Y6001-6165
1130-32-11270SHOE6001-8045
TRIPLE 400MM
125-32-01208TRACK SHOE ASS'Y7971-@
\0\125-32-01206TRACK SHOE ASS'Y.-7970
\0\125-32-01205TRACK SHOE ASS'Y7442-.
\0\125-32-01204TRACK SHOE ASS'Y6166-7441
\0\125-32-01203TRACK SHOE ASS'Y6001-6165
1131-32-11316SHOE.-@
\0\131-32-11315SHOE6001-.
TRIPLE 400MM{WITH HOLE}
124-32-01805TRACK SHOE ASS'Y7971-8045
\0\124-32-01803TRACK SHOE ASS'Y.-7970
\0\124-32-01802TRACK SHOE ASS'Y7442-.
\0\124-32-01801TRACK SHOE ASS'Y6166-7441
\0\124-32-01800TRACK SHOE ASS'Y6001-6165
1130-32-11313SHOE.-8045
\0\130-32-11312SHOE6001-.
SNOW 400MM
125-32-01234TRACK SHOE ASS'Y7971-8045
\0\125-32-01232TRACK SHOE ASS'Y7442-7970
\0\125-32-01231TRACK SHOE ASS'Y6166-7441
\0\125-32-01230TRACK SHOE ASS'Y6001-6165
1131-32-11352SHOE6001-8045
SERVICE KIT
205-32-05011SHOE BOLT AND NUT K.7971-@
\0\205-32-05010SHOE BOLT AND NUT K.6166-7970
\0\130-32-05001SHOE BOLT AND NUT K.6001-6165
2205-32-51121BOLT¤ SHOE7971-@
205-32-51120BOLT¤ SHOE6166-7970
\0\130-32-11213BOLT¤ SHOE6001-6165
3203-32-51220NUT,SHOE7971-@
01803-01622NUT¤ SHOE6001-7970
OVERSIZE PARTS
0.10MM OVERSIZE
6130-98-09115BUSHING¤ REGULAR.-@
\0\130-98-09114BUSHING¤ REGULAR6001-.
8205-98-09012PIN¤ REGULAR7442-@
\0\135-98-09010PIN¤ REGULAR6001-7441
9130-98-09144BUSHING¤ MASTER.-@
\0\130-98-09143BUSHING¤ MASTER6001-.
11205-98-09042PIN¤ MASTER7442-@
\0\135-98-09040PIN¤ MASTER6001-7441
0.18MM OVERSIZE
6130-98-09135BUSHING¤ REGULAR.-@
\0\130-98-09134BUSHING¤ REGULAR6001-.
8205-98-09032PIN¤ REGULAR7442-@
\0\135-98-09030PIN¤ REGULAR6001-7441
9130-98-09164BUSHING¤ MASTER.-@
\0\130-98-09163BUSHING¤ MASTER6001-.
11205-98-09062PIN¤ MASTER7442-@
\0\135-98-09060PIN¤ MASTER6001-7441
