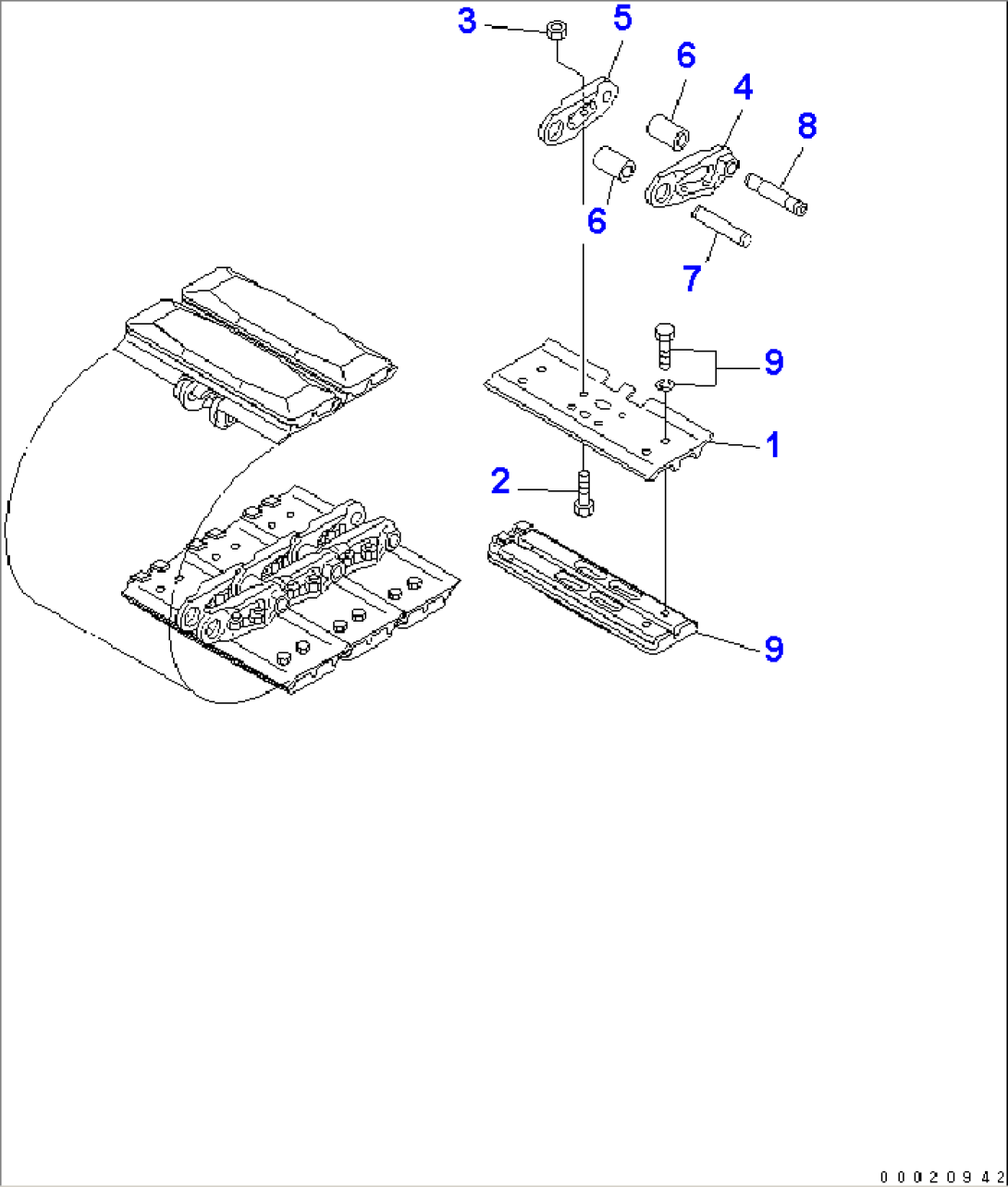

| Item | Part No. | Part Name | Qty | Serial No. |
| 22M-32-01110 | TRACK SHOE ASS'Y | 8001- | ||
| 1 | 20T-32-77410 | SHOE | 8001- | |
| 2 | 20U-32-25110 | BOLT, SHOE | 8001- | |
| 3 | 201-32-11220 | NUT, SHOE | 8001- | |
| 22M-32-01100 | TRACK LINK ASS'Y | 8001- | ||
| 4 | 20T-32-71121 | LINK | 8001- | |
| 5 | 20T-32-71131 | LINK | 8001- | |
| 6 | 20T-32-71171 | BUSHING | 8001- | |
| 7 | 20T-32-71161 | PIN, REGULAR | 8001- | |
| 8 | 20T-32-71181 | PIN, MASTER | 8001- | |
| 9 | 22M-32-27110 | SHOE,RUBBER | 8001- | |
| SERVICE KIT | ||||
| 1 | 201-32-05002 | SHOE BOLT AND NUT K. | 8001- | |
| 1 | 20U-32-25110 | BOLT, SHOE | 8001- | |
| 2 | 201-32-11220 | NUT, SHOE | 8001- |
