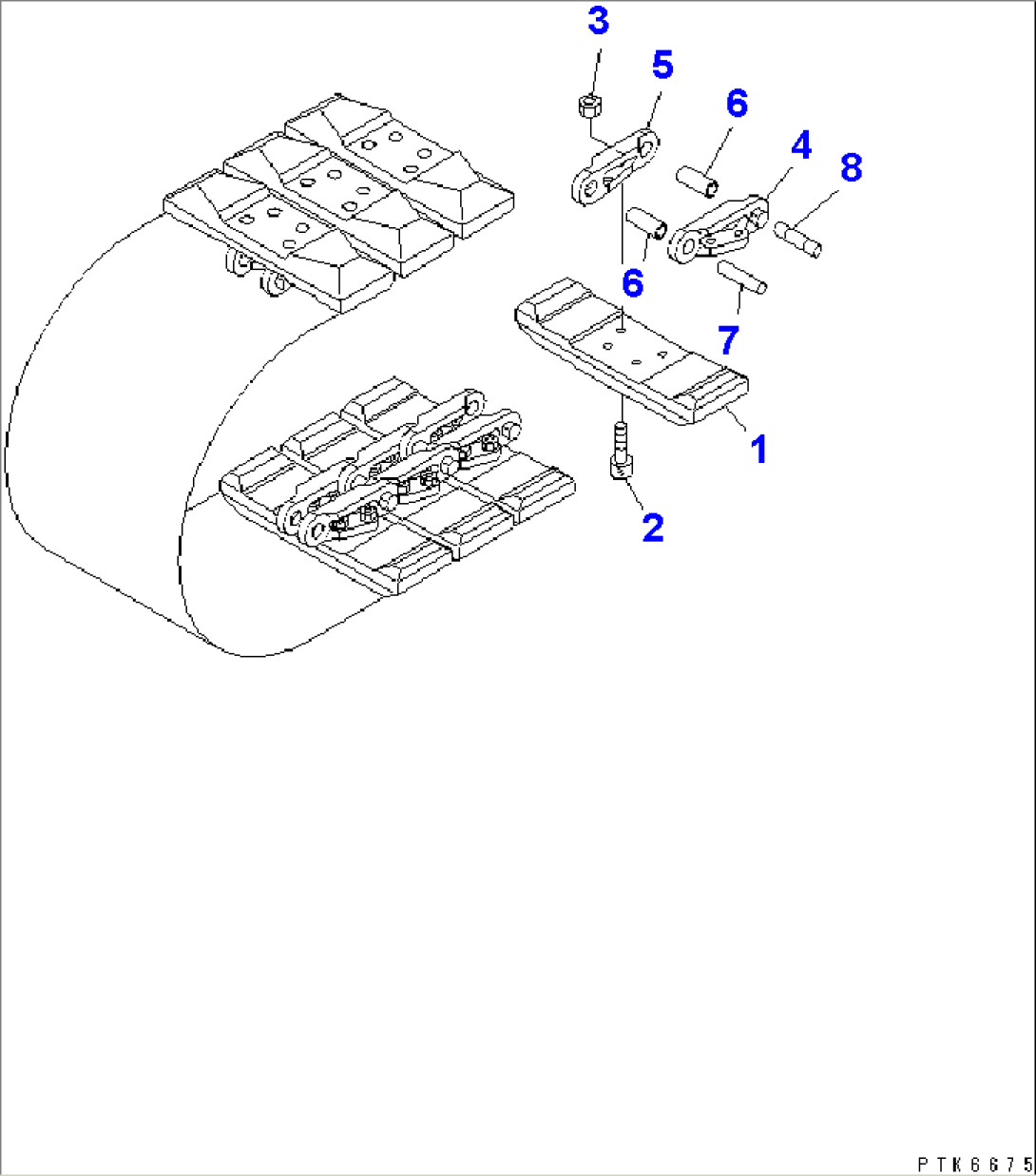

| Item | Part No. | Part Name | Qty | Serial No. |
| 22M-32-02101 | TRACK SHOE ASS'Y | 22301- | ||
| 1 | 20T-32-76113 | SHOE | 22301- | |
| 2 | 01252-71235 | BOLT | 22301- | |
| 3 | 01580-01210 | NUT | 22301- | |
| 22M-32-01100 | LINK ASS'Y | 22301- | ||
| 4 | 20T-32-71121 | LINK | 22301- | |
| 5 | 20T-32-71131 | LINK | 22301- | |
| 6 | 20T-32-71171 | BUSHING | 22301- | |
| 7 | 20T-32-71161 | PIN¤ REGULAR | 22301- | |
| 8 | 20T-32-71181 | PIN¤ MASTER | 22301- | |
| SERVICE KIT | ||||
| 20T-32-05000 | SHOE BOLT AND NUT K. | 22301- | ||
| 1 | 01252-71235 | BOLT | 22301- | |
| 2 | 01580-01210 | NUT | 22301- |
