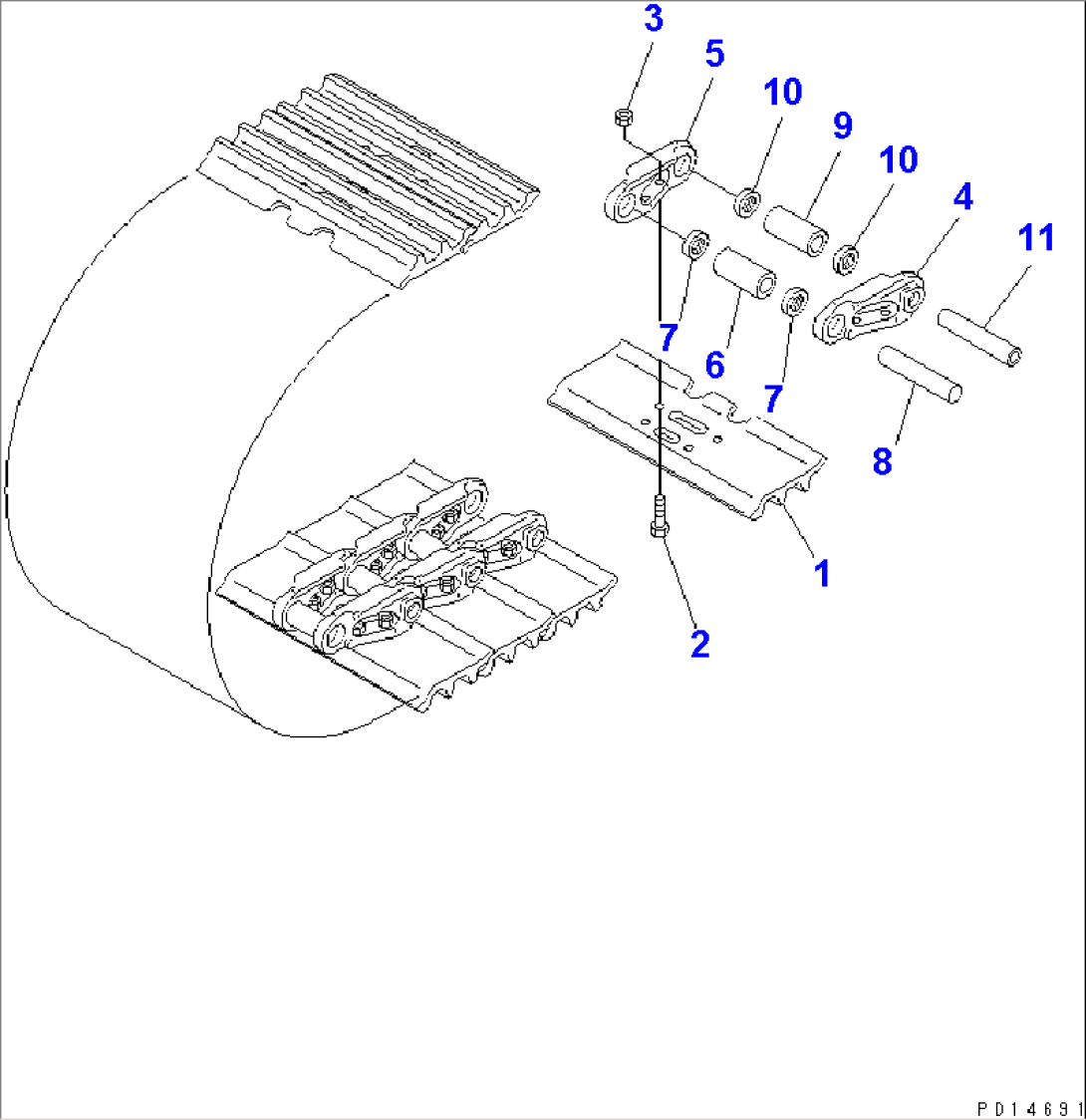

TRACK SHOE (TRIPLE GROUSER WITH HOLE)(#23303-)

TRACK SHOE (TRIPLE GROUSER WITH HOLE)(#23303-)
ItemPart No.Part NameQtySerial No.
600MM WIDE
206-32-03004TRACK SHOE ASS'Y23889-
\0\206-32-03003TRACK SHOE ASS'Y23303-23888
120Y-32-11111SHOE,TRACK23889-
1\0\20Y-32-11110SHOE,TRACK23303-23888
220Y-32-11210BOLT, SHOE (KIT)23303-
3154-32-31220NUT, SHOE (KIT)23303-
206-32-00103TRACK LINK ASS'Y23303-
420Y-32-11123LINK,TRACK, L.H.23303-
520Y-32-11133LINK,TRACK, R.H.23303-
620Y-32-11140BUSHING, REGULAR23303-
720Y-32-11240SEAL,DUST, REGULAR, W-TYPE23303-
820Y-32-11150PIN, REGULAR23303-
920Y-32-11170BUSHING, MASTER23303-
1020Y-32-11260SEAL,DUST, MASTER, W-TYPE23303-
1120Y-32-11190PIN, MASTER23303-
700MM WIDE
1206-32-03014TRACK SHOE ASS'Y23889-
1\0\206-32-03013TRACK SHOE ASS'Y23303-23888
120Y-32-11311SHOE,TRACK23889-
1\0\20Y-32-11310SHOE,TRACK23303-23888
220Y-32-11210BOLT, SHOE23303-
3154-32-31220NUT, SHOE23303-
4206-32-00103TRACK LINK ASS'Y23303-
800MM WIDE
1206-32-03024TRACK SHOE ASS'Y23889-
1\0\206-32-03023TRACK SHOE ASS'Y23303-23888
120Y-32-11321SHOE,TRACK23889-
1\0\20Y-32-11320SHOE,TRACK23303-23888
220Y-32-11210BOLT, SHOE23303-
3154-32-31220NUT, SHOE23303-
4206-32-00103TRACK LINK ASS'Y23303-
SERVICE KIT
120Y-32-05000SHOE BOLT AND NUT K.23303-
120Y-32-11210BOLT, SHOE23303-
2154-32-31220NUT, SHOE23303-
OVERSIZE PARTS
0.10MM OVERSIZE
620Y-98-09110BUSHING, REGULAR23303-
820Y-98-09010PIN, REGULAR23303-
920Y-98-09130BUSHING, MASTER23303-
1120Y-98-09030PIN, MASTER23303-
0.18MM OVERSIZE
620Y-98-09120BUSHING, REGULAR23303-
820Y-98-09020PIN, REGULAR23303-
920Y-98-09140BUSHING, MASTER23303-
1120Y-98-09040PIN, MASTER23303-
