| Item | Part No. | Part Name | Qty | Serial No. |

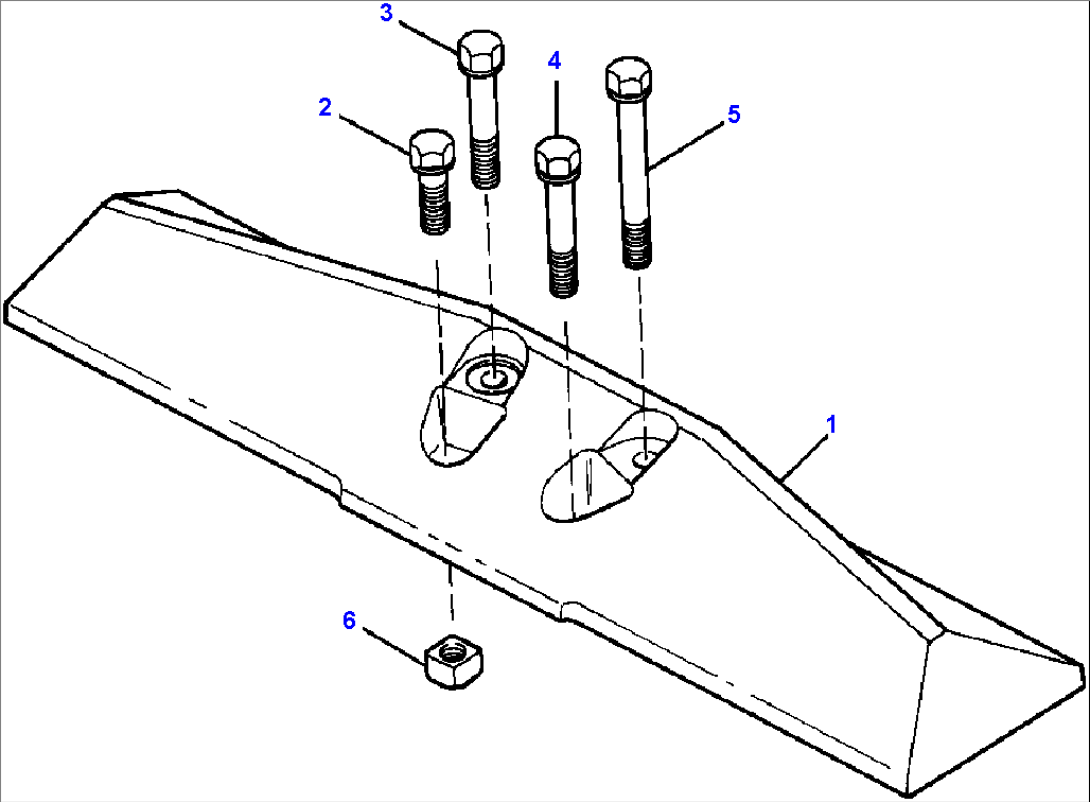

| (743 242 C91) | TRACK SHOES, 34 IN SWAMP | |||
| 1 | 743 212 C2 | SHOE, TRACK | ||
| 2 | 616 225 C4 | BOLT, TRACK SHOE - SHORT | ||
| 3 | 743 150 C3 | BOLT, TRACK SHOE - LONG | ||
| 4 | 743 150 C3 | BOLT, SPLIT LINK - SHORT | ||
| 5 | 743 215 C3 | BOLT, SPLIT LINK - LONG | ||
| 6 | 616 226 C1 | NUT, TRACK SHOE | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
