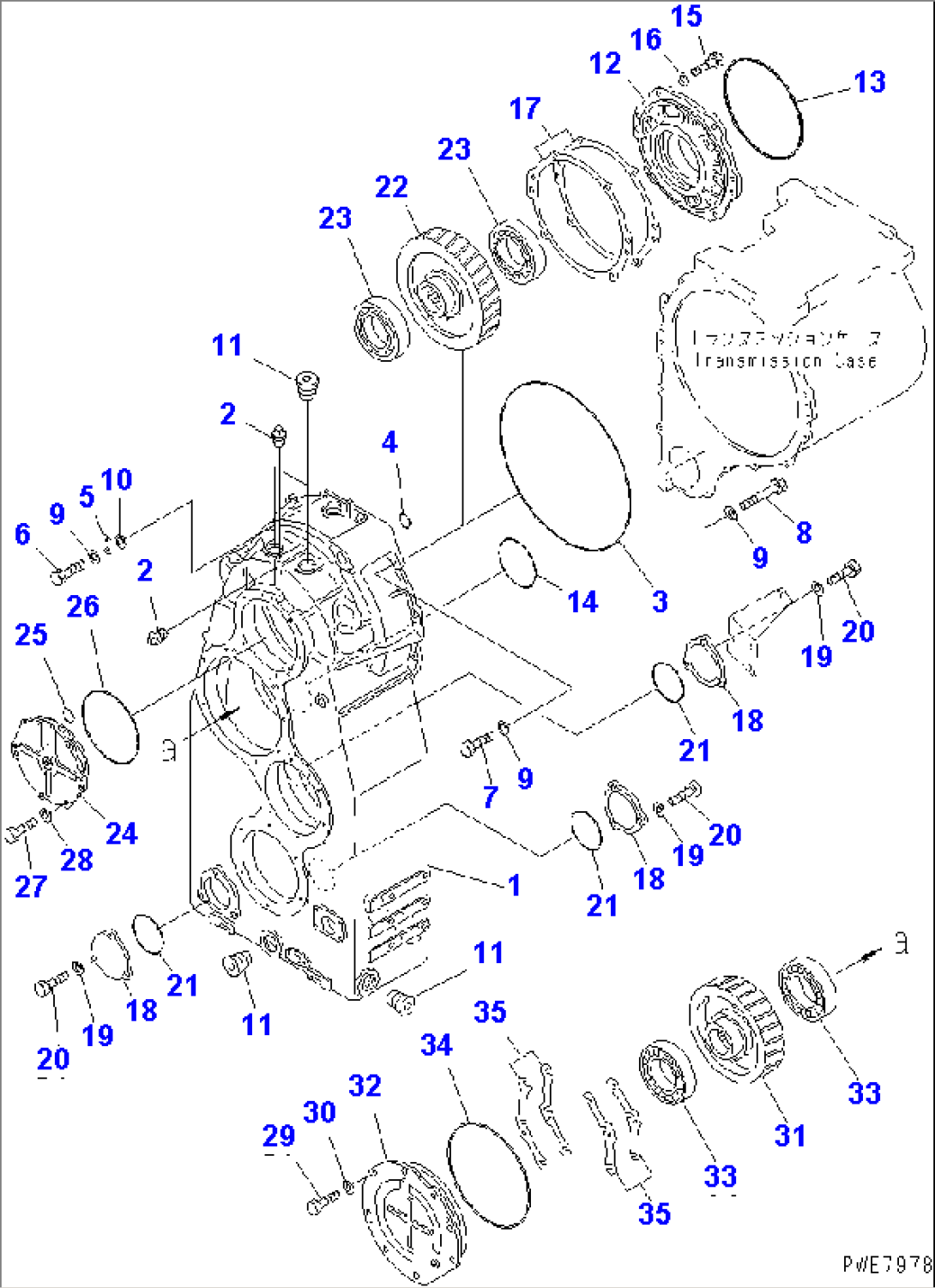

TRANSFER (1/3)

Item	Part No.	Part Name	Qty	Serial No.
		SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
	(428-15-21001)	TRANSMISSION ASS'Y		51001-
	(428-15-21000)	TRANSMISSION ASS'Y		50001-51000
		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F4320-51A0 TO F4320-68A0.
	428-15-00140	CASE ASS'Y		50001-
1	\6\	CASE		50001-
2	07042-70312	PLUG		50001-
3	426-15-19610	O-RING (K5)		50001-
4	07000-73040	O-RING (K5)		50001-
5	426-15-18210	PLATE		50001-
6	01010-81240	BOLT		50001-
7	01010-81235	BOLT		50001-
8	01010-81260	BOLT		50001-
9	01643-31232	WASHER		50001-
10	01640-21223	WASHER		50001-
11	07043-72026	PLUG		50001-
12	428-15-11220	CAGE		50001-
13	07000-05300	O-RING (K5)		50001-
14	07000-02145	O-RING (K5)		50001-
15	01010-81235	BOLT		50001-
16	01643-31232	WASHER		50001-
17	428-15-05120	SHIM ASS'Y (K5)		50001-
	\6\	SHIMÂ¤ 1.0MM (K5)		50001-
	\6\	SHIMÂ¤ 0.3MM (K5)		50001-
	\6\	SHIMÂ¤ 0.2MM (K5)		50001-
18	425-15-13450	COVER		50001-
19	01643-31232	WASHER		50001-
20	01010-81230	BOLT		50001-
21	07000-02115	O-RING (K5)		50001-
22	428-15-13211	GEAR		(10080)-
	428-15-13210	GEAR		50001-(10079)
23	06002-32028	BEARING		50001-
24	428-15-13130	CAGE		50001-
25	07000-72021	O-RING (K5)		50001-
26	07000-05220	O-RING (K5)		50001-
27	01010-81235	BOLT		50001-
28	01643-31232	WASHER		50001-
29	01010-81235	BOLT		50001-
30	01643-31232	WASHER		50001-
31	428-15-13222	GEAR		(10080)-
	428-15-13221	GEAR		50001-(10079)
32	428-15-13141	CAGE		50001-
33	428-15-13340	BEARING		50001-
34	07000-05280	O-RING (K5)		50001-
35	428-15-05130	SHIM ASS'Y (K5)		50001-
	\6\	SHIMÂ¤ 1.0MM (K5)		50001-
	\6\	SHIMÂ¤ 0.3MM (K5)		50001-
	\6\	SHIMÂ¤ 0.2MM (K5)		50001-
	\6\	SHIMÂ¤ 1.0MM (K5)		50001-
	\6\	SHIMÂ¤ 0.3MM (K5)		50001-
	\6\	SHIMÂ¤ 0.2MM (K5)		50001-
