| Item | Part No. | Part Name | Qty | Serial No. |

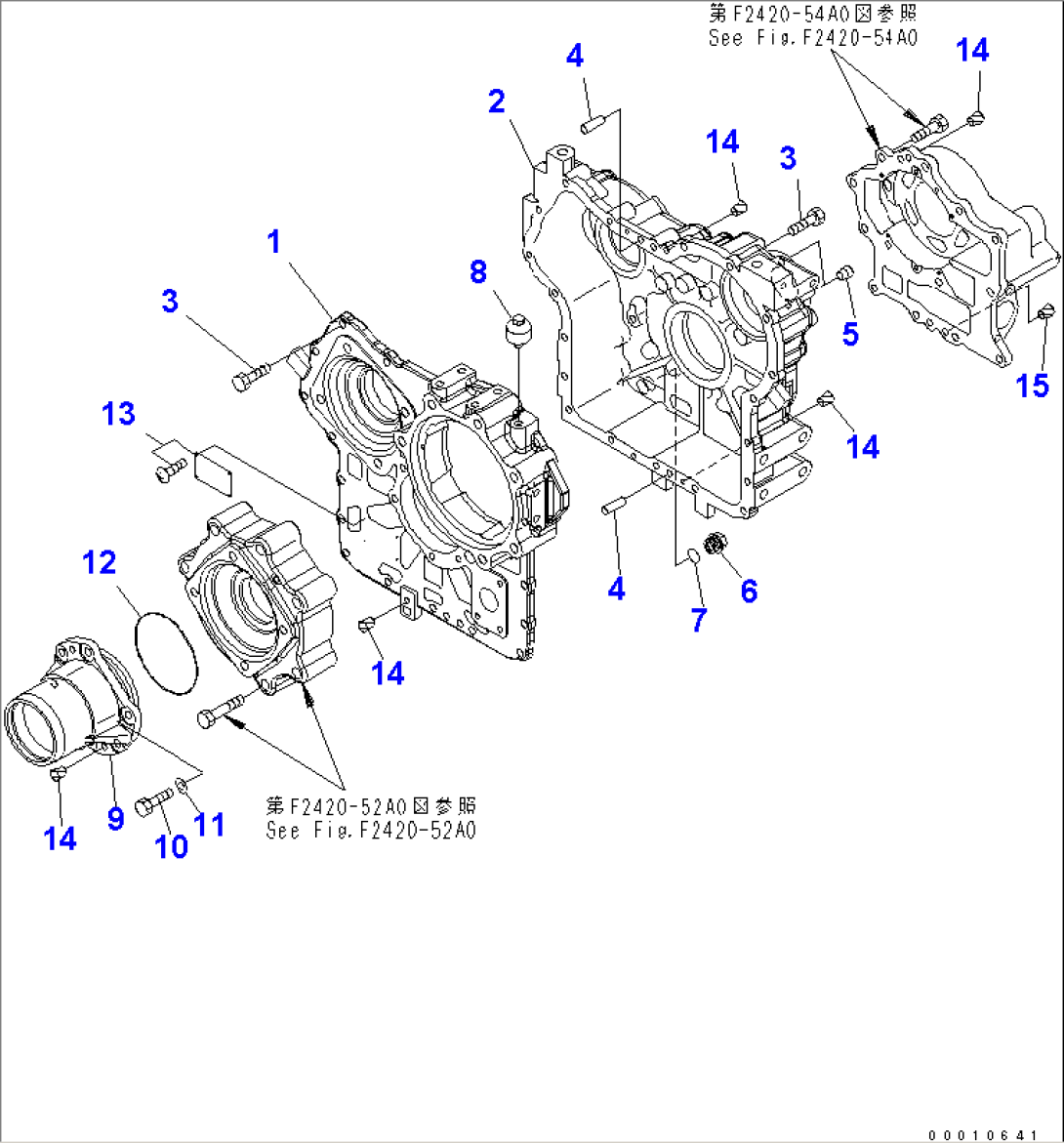

| 417-17-31004 | TRANSFER ASS'Y | 70001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-54A0. | ||||
| 417-17-31104 | CASE ASS'Y | 70001- | ||
| 1 | \6\ | CASE,FRONT | 70001- | |
| 2 | \6\ | CASE,REAR | 70001- | |
| 3 | 01010-81235 | BOLT | 70001- | |
| 4 | 04020-01228 | PIN | 70001- | |
| 5 | 07043-A0211 | PLUG | 70001- | |
| 6 | 07044-12412 | PLUG | 70001- | |
| 7 | 07002-12434 | O-RING | 70001- | |
| 8 | 07030-00252 | BREATHER | 70001- | |
| 9 | 417-17-31131 | CAGE | 70001- | |
| 10 | 01010-81235 | BOLT | 70001- | |
| 11 | 01643-31232 | WASHER | 70001- | |
| 12 | 07000-75130 | O-RING | 70001- | |
| 13 | 09608-05080 | PLATE, NAME | 70001- | |
| 13 | 04418-13060 | SCREW | 70001- | |
| 14 | 07049-01215 | PLUG | 70001- | |
| 15 | 07049-01620 | PLUG | 70001- |
