| Item | Part No. | Part Name | Qty | Serial No. |

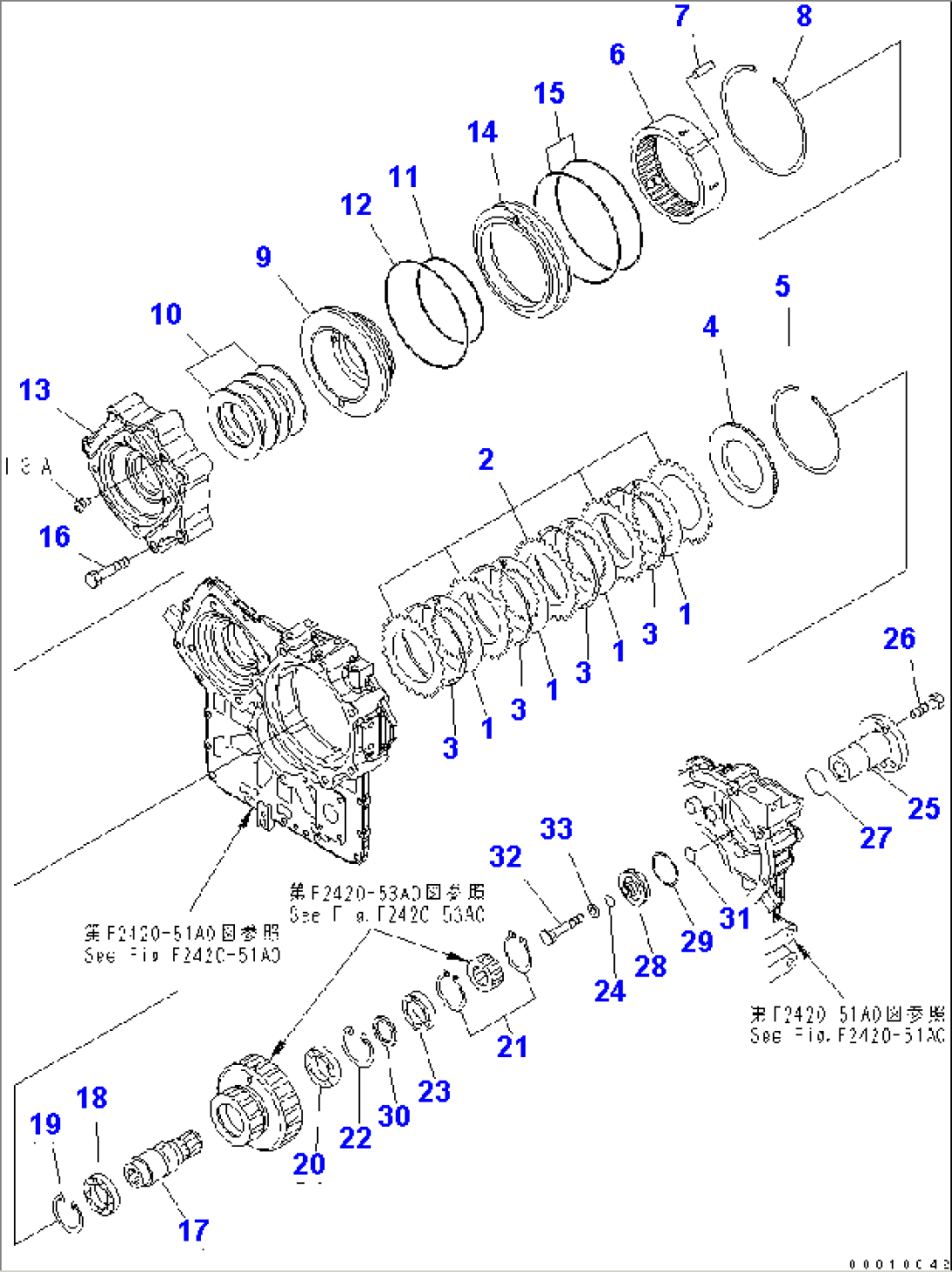

| (417-17-31004) | TRANSFER ASS'Y | 70001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-54A0. | ||||
| 1 | 418-17-39710 | DISC | 70001- | |
| 2 | 714-16-19730 | PLATE | 70001- | |
| 3 | 56D-15-12710 | SPRING | 70001- | |
| 4 | 714-12-12610 | PLATE | 70001- | |
| 5 | 419-15-12140 | RING | 70001- | |
| 6 | 417-17-32621 | HOUSING | 70001- | |
| 7 | 04020-01228 | PIN | 70001- | |
| 8 | 04071-00200 | RING | 70001- | |
| 9 | 418-17-32713 | PISTON | 70001- | |
| 10 | 417-17-32700 | SPRING ASS'Y | 70001- | |
| 11 | 07000-A6165 | O-RING | 70001- | |
| 12 | 07000-A6210 | O-RING | 70001- | |
| 13 | 417-17-35140 | CAGE | 70001- | |
| 14 | 418-17-31163 | SPACER | 70001- | |
| 15 | 07000-A5220 | O-RING | 70001- | |
| 16 | 01010-61695 | BOLT | 70001- | |
| 17 | 418-17-32112 | SHAFT | 70001- | |
| 18 | 06040-06010 | BEARING | 70001- | |
| 19 | 04065-08025 | RING,SNAP | 70001- | |
| 20 | 06040-06010 | BEARING | 70001- | |
| 21 | 04064-04518 | RING | 70001- | |
| 22 | 04065-08025 | RING,SNAP | 70001- | |
| 23 | 06043-06009 | BEARING | 70001- | |
| 24 | 07018-00251 | RING | 70001- | |
| 25 | 418-17-32811 | SHAFT | 70001- | |
| 26 | 01010-81235 | BOLT | 70001- | |
| 27 | 07000-A2055 | O-RING | 70001- | |
| 28 | 418-17-32821 | HOLDER | 70001- | |
| 29 | 07018-00703 | RING | 70001- | |
| 30 | 418-17-32561 | SPACER | 70001- | |
| 31 | 07000-73025 | O-RING | 70001- | |
| 32 | 01010-81275 | BOLT | 70001- | |
| 33 | 01643-51232 | WASHER | 70001- |
