| Item | Part No. | Part Name | Qty | Serial No. |
| (417-17-31004) | TRANSFER ASS'Y | 69107- | ||
| (417-17-31002) | TRANSFER ASS'Y | 67059-69106 | ||
| (417-17-31001) | TRANSFER ASS'Y | 65595-67058 | ||
| ((\2\417-17-31000)) | TRANSFER ASS'Y | (65001-65594) | ||

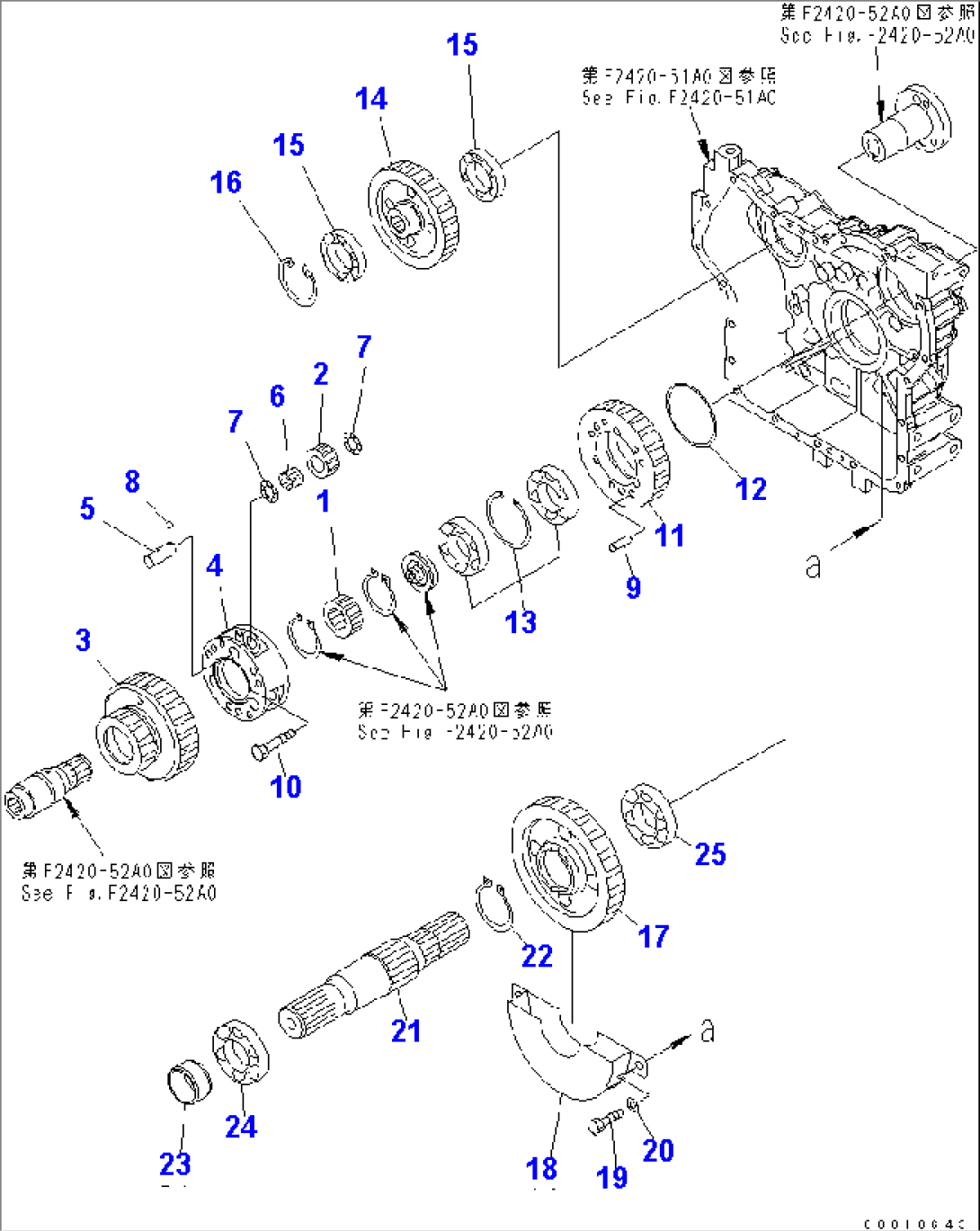

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2420-51A0 TO F2420-54A0. | ||||
| 1 | 418-17-32211 | GEAR | 65001- | |
| 2 | 418-17-32411 | GEAR | 65001- | |
| 3 | 418-17-32611 | GEAR,RING | 65001- | |
| 4 | 418-17-32312 | CARRIER | 65001- | |
| 5 | 418-17-32511 | SHAFT | 65001- | |
| 6 | 418-17-39311 | BEARING,NEEDLE | 65001- | |
| 7 | 418-17-32570 | THRUST WASHER | 65001- | |
| 8 | 04260-00635 | BALL | 65001- | |
| 9 | 04020-01228 | PIN | 65001- | |
| 10 | 01252-31260 | BOLT | 65001- | |
| 11 | 417-17-33212 | GEAR | 65001- | |
| 12 | 14Y-22-13270 | RING | 65001- | |
| 13 | 418-17-39321 | BEARING | 65001- | |
| 14 | 417-17-33220 | GEAR | 65001- | |
| 15 | 06040-06011 | BEARING | 65001- | |
| 16 | 04065-09030 | RING,SNAP | 65001- | |
| 17 | 417-17-33231 | GEAR,OUTPUT | 65001- | |
| 18 | 417-17-33410 | BAFFLE | 65001- | |
| 19 | 01010-81225 | BOLT | 65001- | |
| 20 | 01643-31232 | WASHER | 65001- | |
| 21 | 417-17-32120 | SHAFT | 65001- | |
| 22 | 04064-07525 | RING | 65001- | |
| 23 | 417-17-32132 | SPACER | 65001- | |
| 24 | 418-17-39330 | BEARING | 65001- | |
| 25 | 418-17-39340 | BEARING | 65001- |
